Installing and Replacing Desktop Board Components
25
Removing the AGP Card Retention Mechanism
Follow these instructions to remove the AGP card retention mechanism:
1. Using diagonal cutters (A), cut the loop (B) joining the two sides of the retention mechanism
(see Figure 6).
2. Spread the sides of the retention mechanism (C) and lift the retention mechanism off of the
AGP connector.
✏
NOTE
Once removed using this method, the AGP RM cannot be reused.
OM10593
A
B
c
c

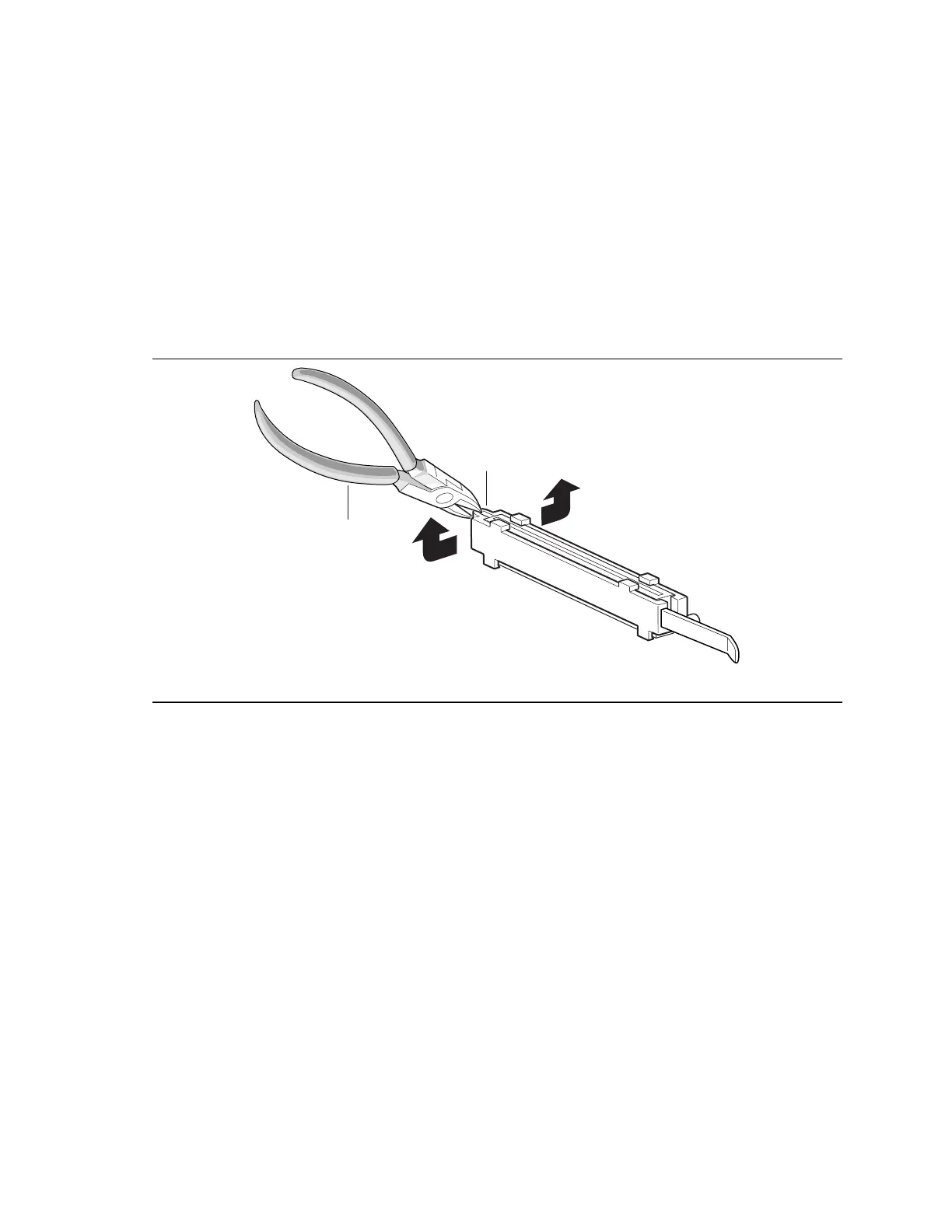

Figure 6. Removing the AGP Card Retention Mechanism
