Intel D850GB Product Guide

Desktop Board Features
9
Components

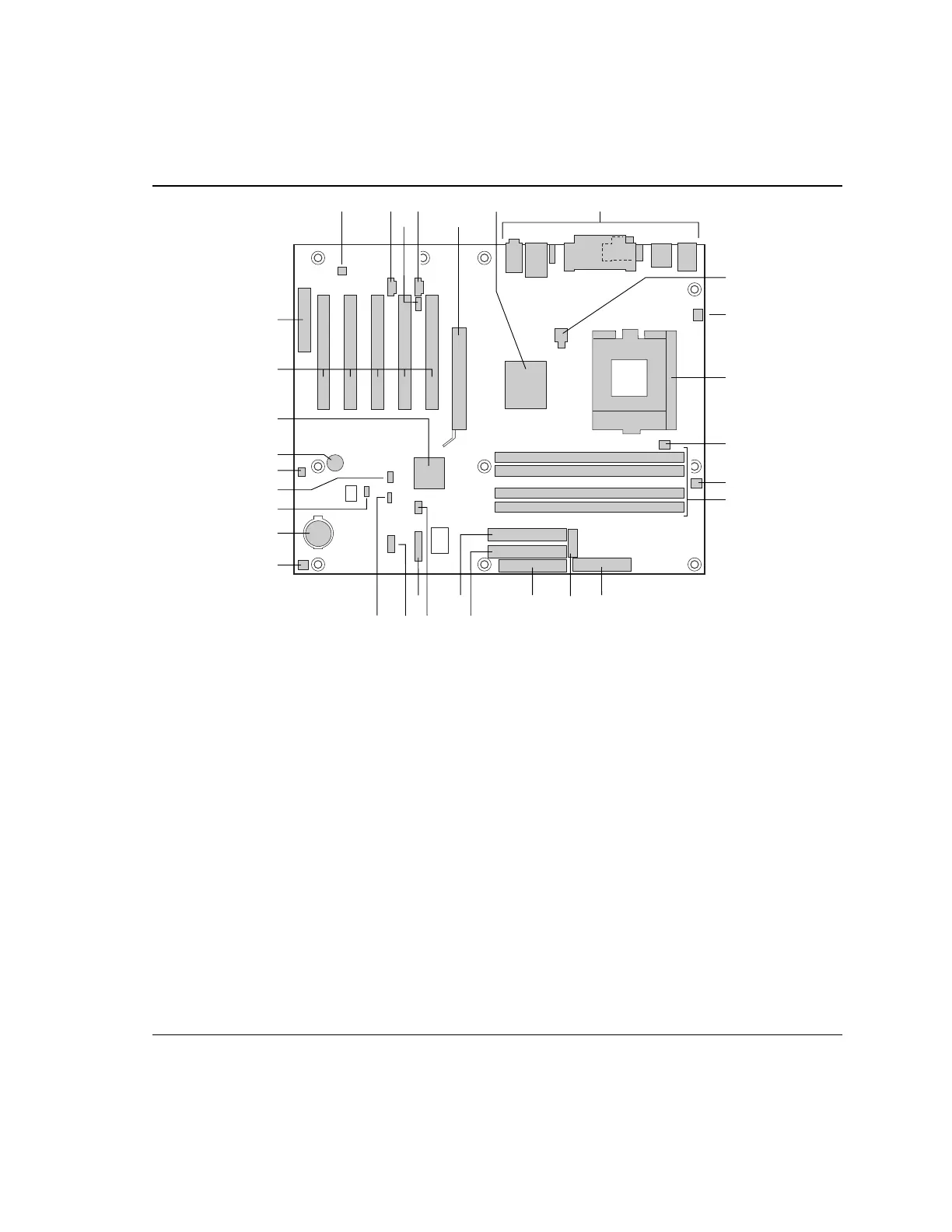

Figure 1 shows the major components on the board.
OM10659
A B
C E
F
R
UV Q
S
T
P N
H
J
K
L
I
M
CC
EE
DD
D G
AA
Z
BB
Y
X
W
O
A. ADI AD1881 audio codec (D850GBAL only) Q. Primary IDE connector
B. Auxiliary line-in connector (D850GBAL only) R. Secondary IDE connector
C. Legacy CD-ROM connector (D850GBAL only) S. USB port 2 connector
D. ATAPI-style CD-ROM connector
(D850GBAL only)
T. Front panel connector
E. AGP connector U. Front panel USB connector
F. Intel 82850 Memory Controller Hub (MCH) V. Alternate power LED/sleep connector
G. Back panel connectors W. Chassis fan connector
H. 12 V processor core voltage connector X. Battery
I. Chassis fan connector Y. BIOS configuration jumper
J. Processor socket Z. Wake on LAN technology connector
K. Processor fan connector AA. SCSI LED connector
L. RIMM fan connector BB. Speaker
M. RIMM sockets CC. Intel 82801BA I/O Controller Hub (ICH2)
N. Power connector DD. PCI bus add-in card connectors
O. Auxiliary power connector EE. Communication and Networking Riser (CNR)
P. Diskette drive connector (D850GB only)
Figure 1. Desktop Board Components
