Intel Desktop Board D850GB/D850GBAL Product Guide
30
Installing and Removing a Processor
CAUTION
Before installing or removing the processor, make sure that AC power has been removed by
unplugging the power cord from the computer; the standby power LED should not be lit (see
Figure 2 on page 19). Failure to do so could damage the processor and the board.
To install a processor, follow these instructions (see Figure 12):
1. Observe the precautions in “Before You Begin” (see page 21).
2. Locate the processor socket and raise the socket lever completely
3. Install the processor so that the first pin (A) is aligned with the first pin location on the board
silk screen.
4. Lower the lever to its original position.
OM10633
A

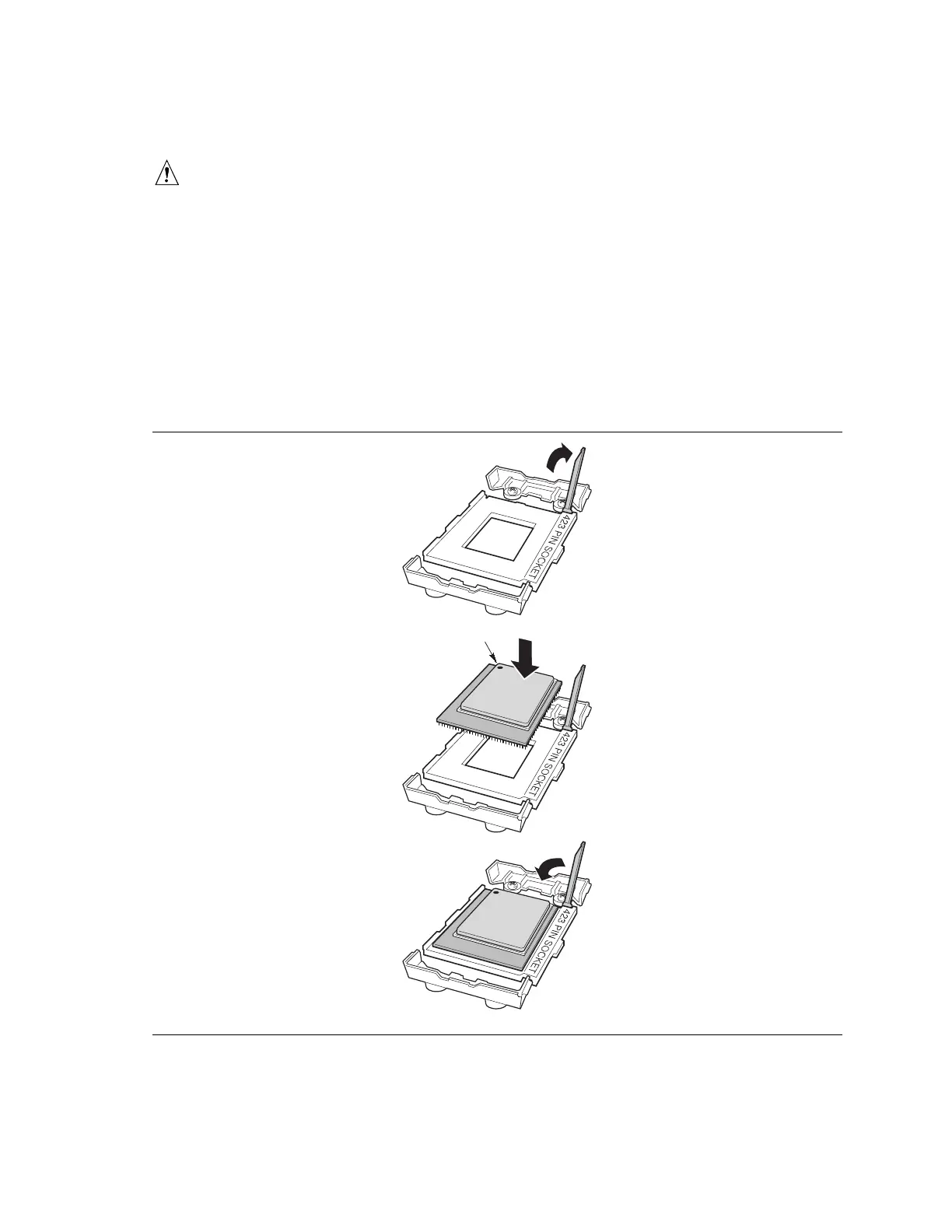

Figure 12. Installing a Processor
