Installing and Removing the Desktop Board
Refer to your chassis manual for instructions on installing and removing the board. The board is
secured to the chassis by 10 screws. Figure 9 shows the locations of the mounting screw holes.
Do not install screws around the processor socket at this time.
✏
NOTES
You will need a Phillips (#2 bit) screwdriver.
Refer to Appendix B for regulatory requirements and installation instructions and precautions.
WARNING
This procedure should be done only by qualified technical personnel. Disconnect the computer
from its power source before performing the procedures described here. Failure to disconnect
the power before you open the computer can result in personal injury or equipment damage.
OM10640

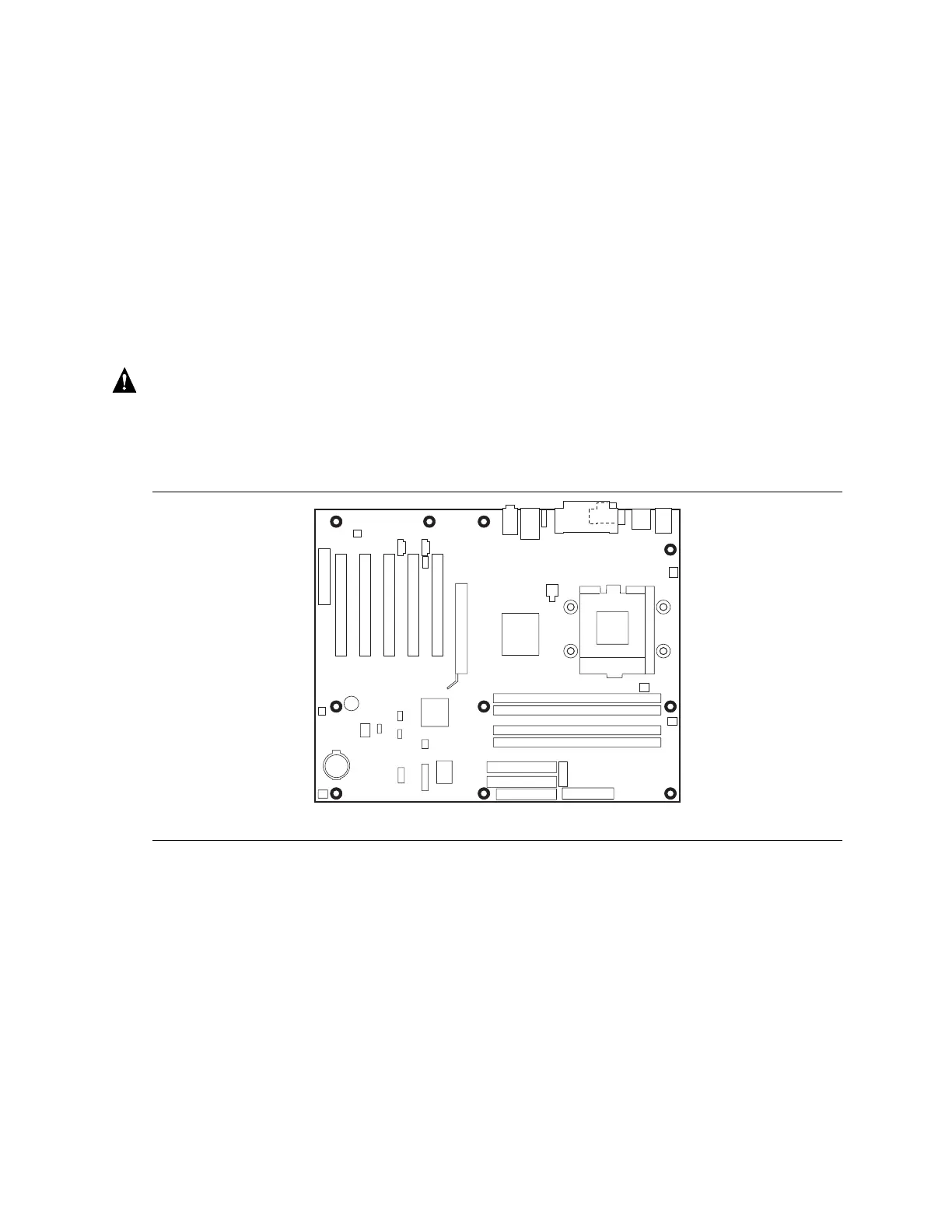

Figure 9. Location of the Mounting Screw Holes
