Installing and Removing a Processor
Instructions on how to install the processor to the desktop board are given below.
Installing a Processor
CAUTION
Before installing or removing the processor, make sure AC power has been removed by unplugging
the power cord from the computer; the standby power LED should not be lit (see Figure 3 on
page 21). Failure to do so could damage the processor and the board.
To install a processor, follow these instructions:
1. Observe the precautions in "Before You Begin" on page 23.
2. Open the socket lever by pushing the lever down and away from the socket (see Figure 6, A
and B).
OM17210
A
B

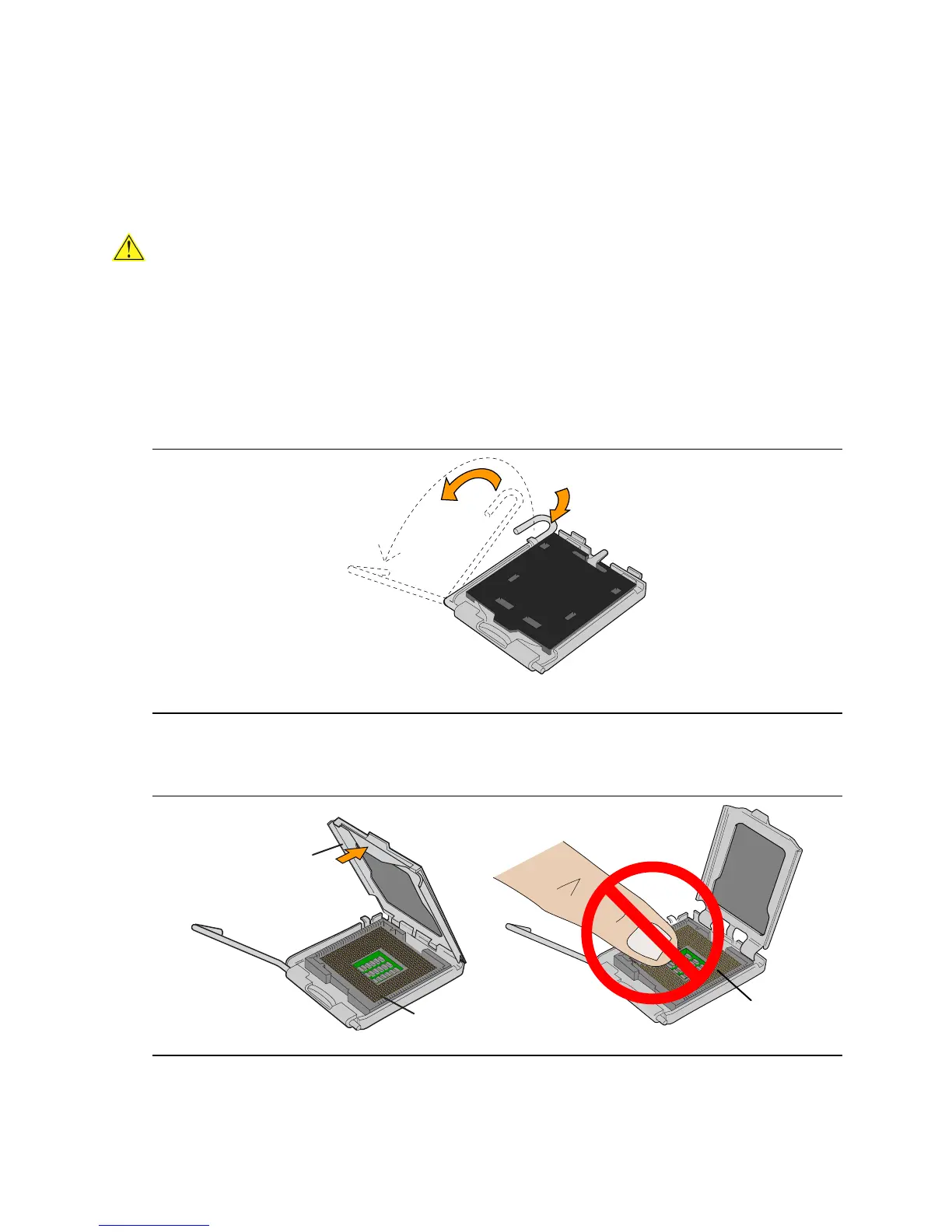

Figure 6. Lift Socket Lever
3. Lift the load plate. Do not touch the socket contacts (see Figure 7, C and D)
OM17211
D
D
C
Figure 7. Lift the Load Plate and Don’t Touch the Socket Contacts
