Installing the Processor Fan Heat Sink
Desktop Board D915GLVG has an integrated processor fan heat sink retention mechanism (RM).
For instructions on how to attach the processor fan heat sink to the integrated processor fan heat
sink RM, refer to the boxed processor manual or the Intel World Wide Web site at:
The Boxed Intel Pentium 4 Processor in the 775-Land Package
Connect the processor fan heat sink cable to the 4-pin processor fan connector (see Figure 12).
OM17369
3
1
2
4
3
1
2
4
AB
3
1
2
3
1
2
BA

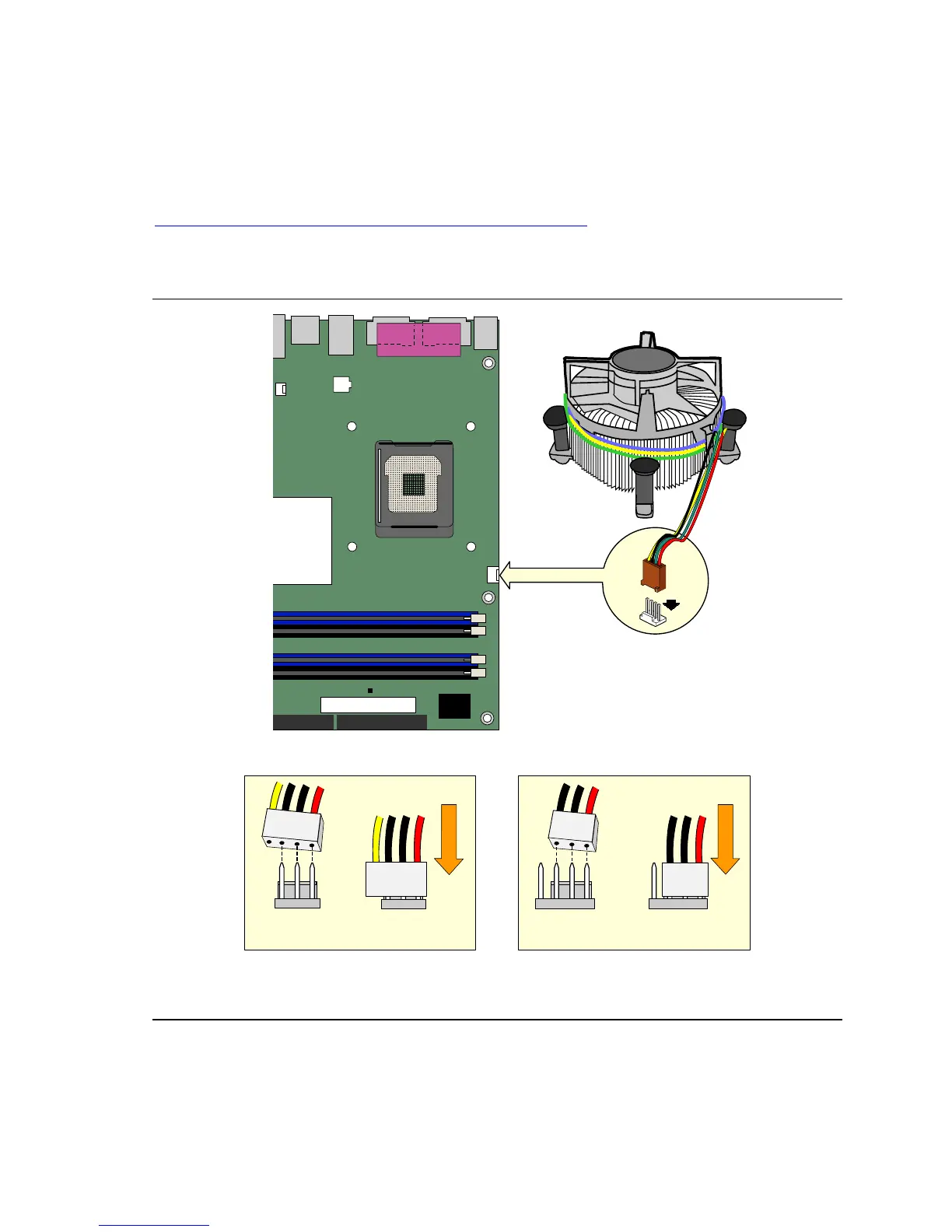

Figure 12. Connecting the Processor Fan Heat Sink Cable to the Processor Fan Connector
