For correct function of the cable:
• Observe the precautions in "Before You Begin" on page 23.
• Attach the cable end with the single connector to the Intel desktop board (Figure 17, A).
• Attach the cable end with the two closely spaced connectors to the drives (Figure 17, B).
OM17371
A
B

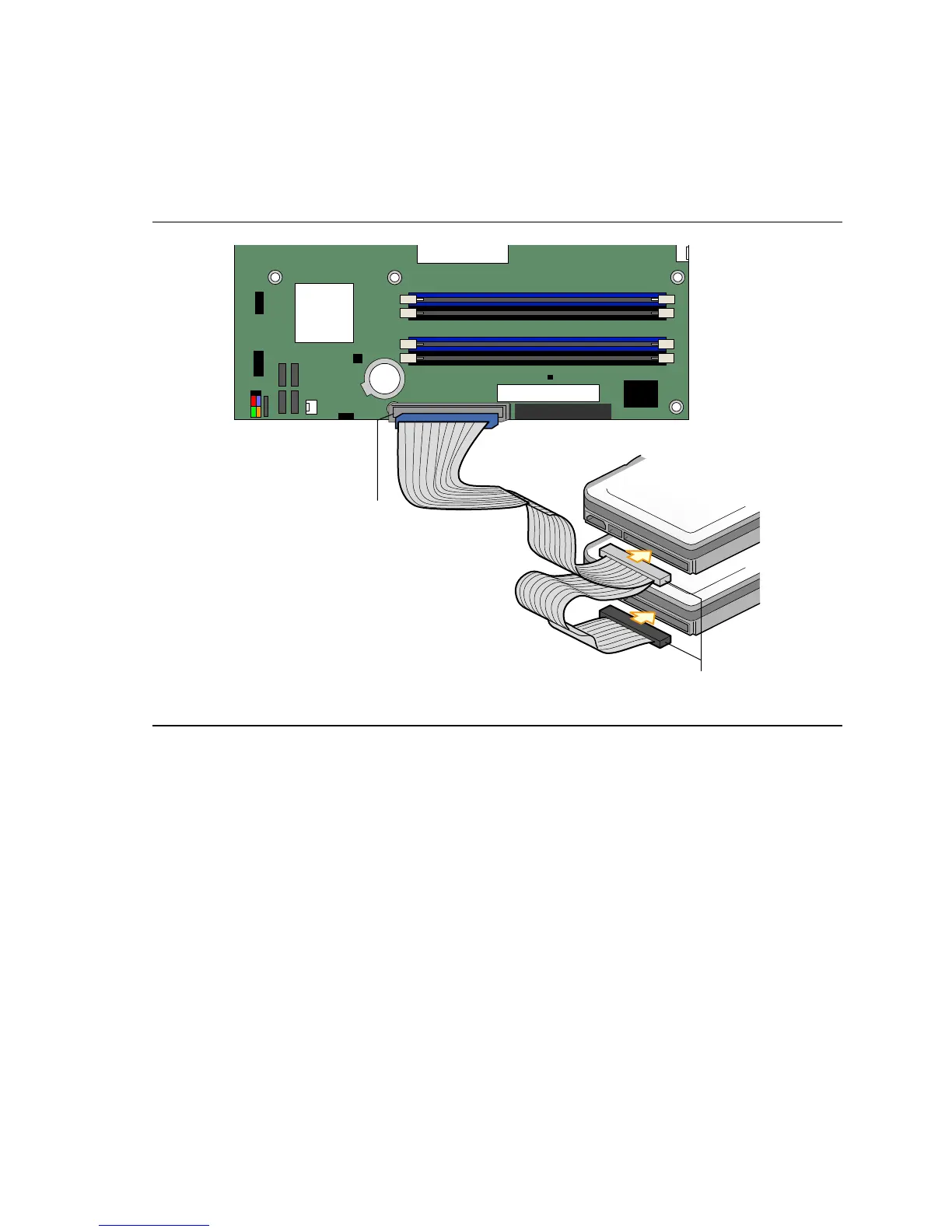

Figure 17. Connecting the IDE Cable
