Intel Desktop Board D915GLVG Product Guide
42
Connecting Fan and Power Cables
Connecting Fan Cables

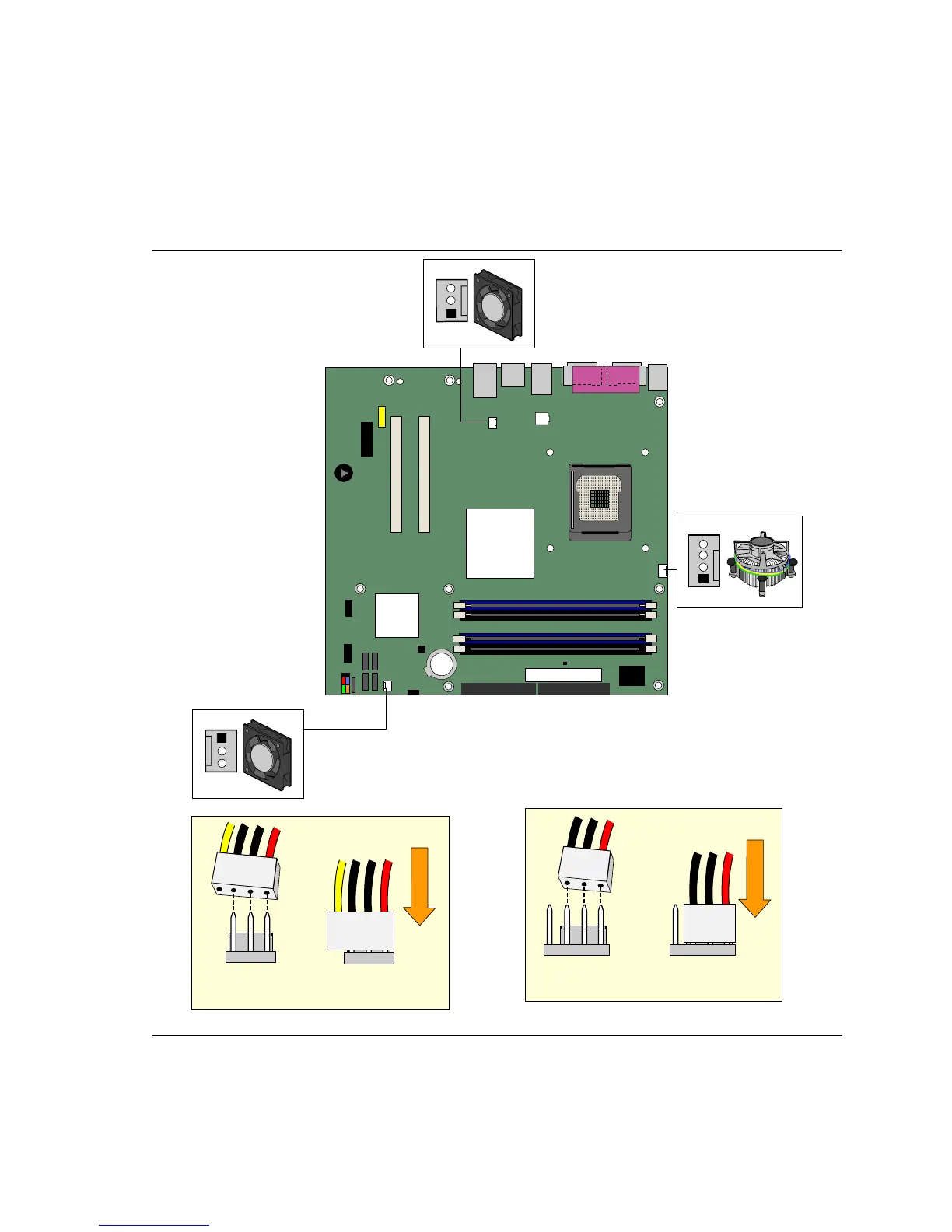

Figure 21 shows the location of the fan headers. C
onnect the processor’s fan heat sink cable to the
4-pin processor fan header on the board. Conn
ect chassis fan cables to the 3-pin
fan headers.
OM17373
3
1
2
4
3
1
2
4
AB
3
1
2
3
1
2
B
A
Figure 21. Location of Fan Headers
41
43
