6. Hold the processor with your thumb and index fingers oriented as shown in Figure 10. Make
sure fingers align to the socket cutouts (see Figure 10, F). Align notches (see Figure 10, G)
with the socket see (Figure 10, H). Lower the processor straight down without tilting or sliding
the processor in the socket.
OM17214
G
G
F
H
F
H

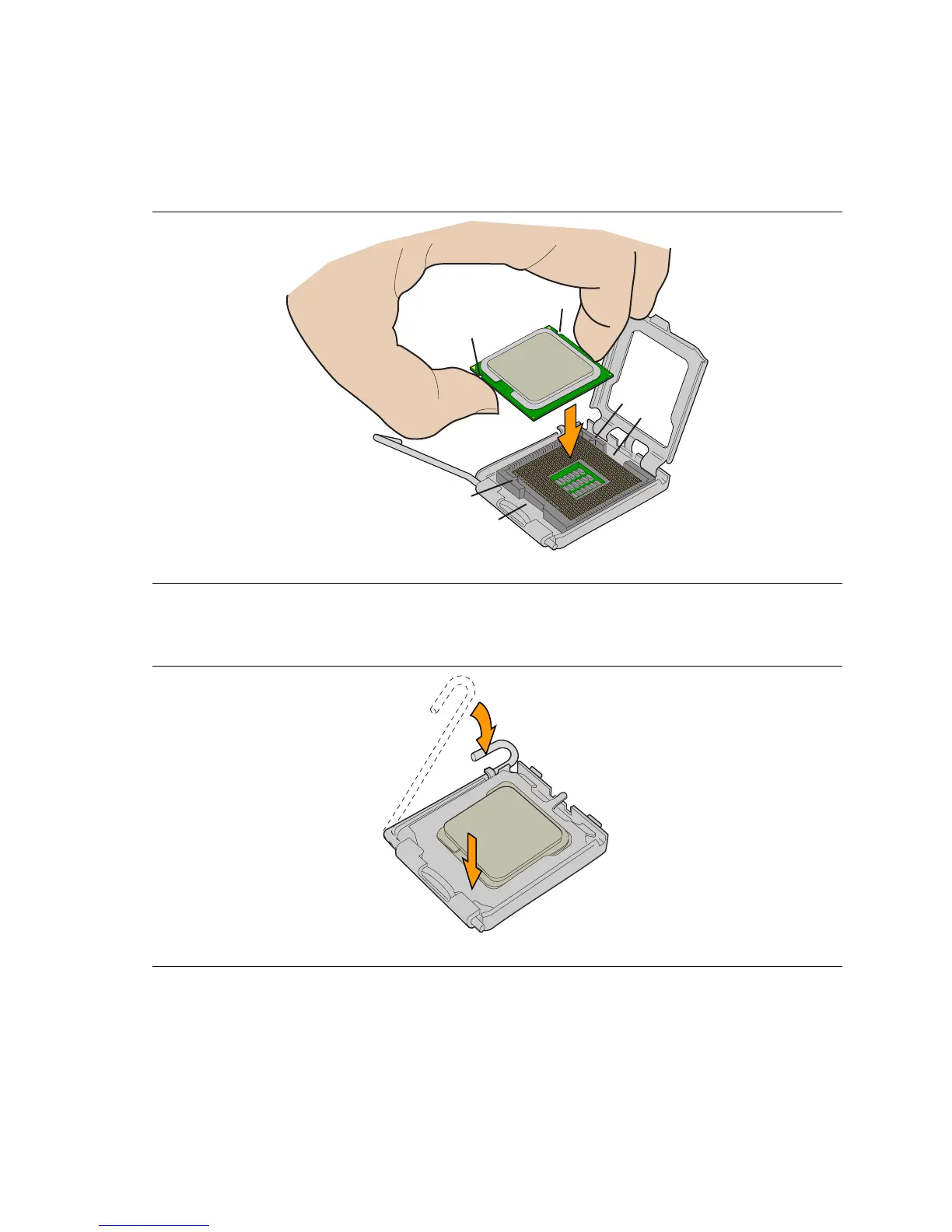

Figure 10. Install Processor
7. Pressing down on the load plate (Figure 11, I) close and engage the socket lever (Figure 11, J).
OM17215
I
J
Figure 11. Close the Load Plate
