Intel Desktop Board D945GNT/D945GTP Product Guide
42
Connecting the Serial ATA (SATA) Cable
The SATA cable (4-conductor) supports the Serial ATA protocol and connects a single drive to the
desktop board. Either end of the cable can be connected to the SATA drive or the connector on the
board.
For correct cable function:
1. Observe the precaution in "
Before You Begin" on page 27.
2. Attach the locking cable end to the connector (
Figure 20, A) on the board.
3. Attach the cable end without a lock to the drive (
Figure 20, B).
OM17619
B
A

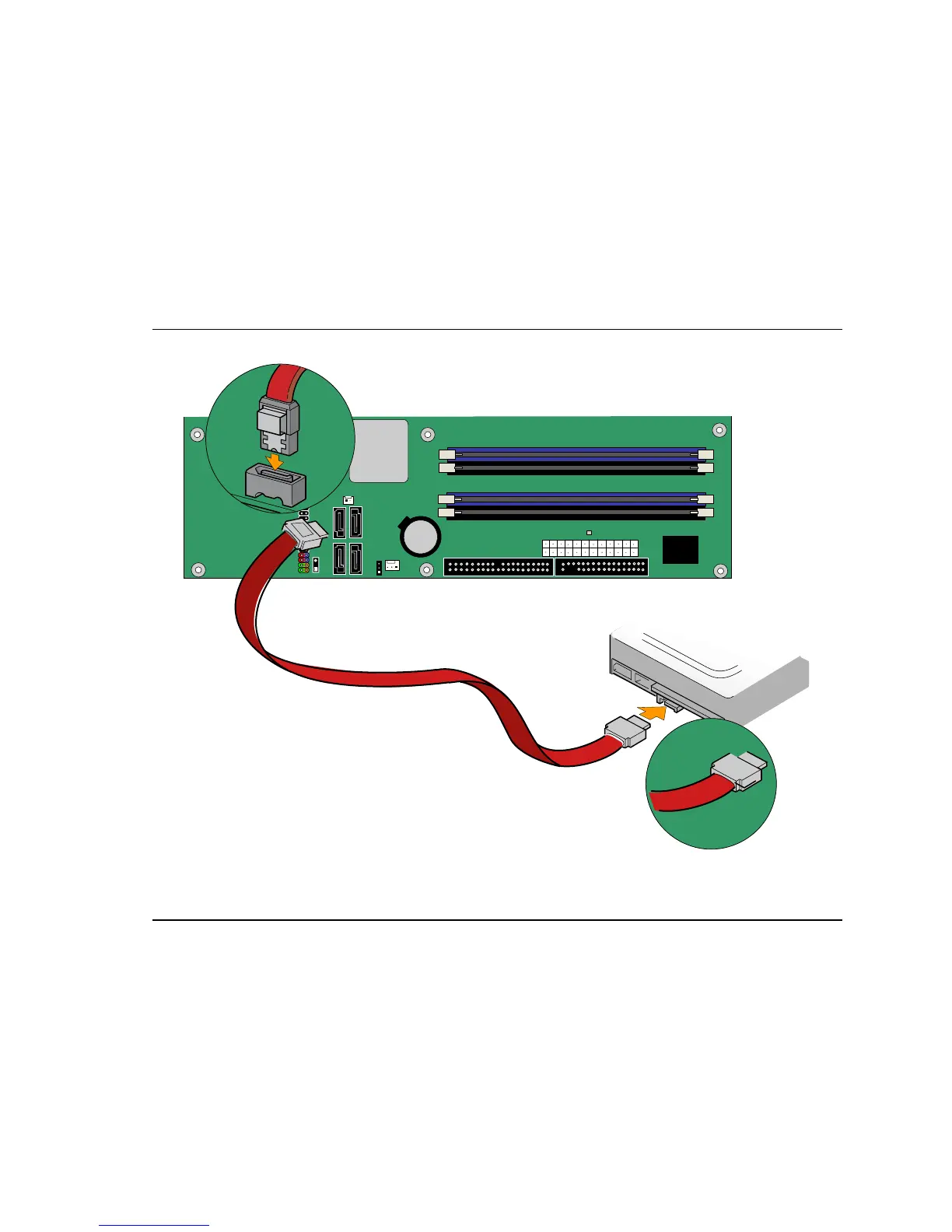

Figure 20. Connecting the Serial ATA Cable
