Other Connectors

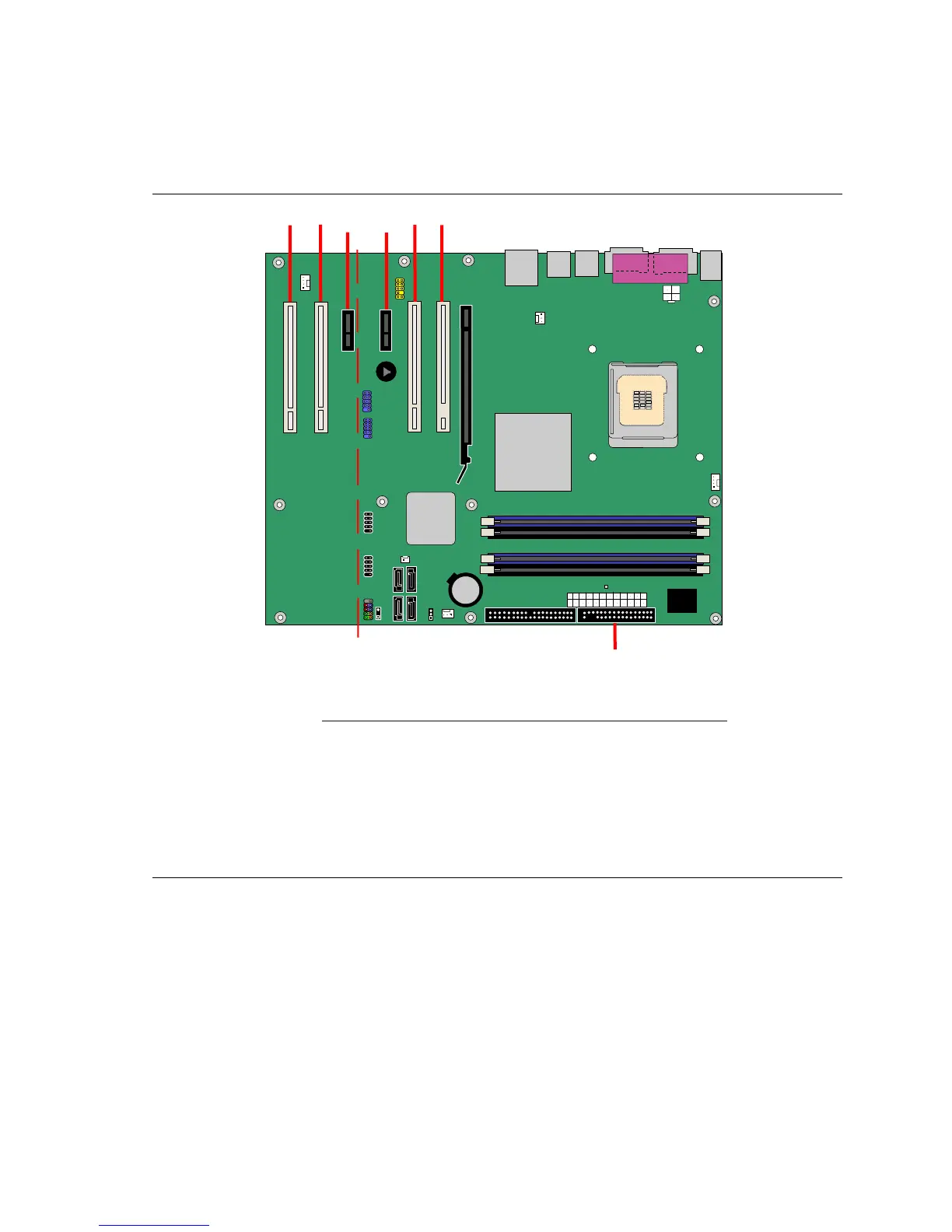

Figure 25 shows the location of the PCI add-in card, PCI Express 1x, and diskette drive connectors.
OM17623
AB
CD
E
F
G
Item Description
A PCI bus add-in card connector 4 (D945GNT only)
B PCI bus add-in card connector 3 (D945GNT only)
C PCI Express x1 connector (D945GNT only)
D PCI Express x1 connector
E PCI bus add-in card connector 2 (SMBus routed)
F PCI bus add-in card connector 1
G Diskette drive connector
Figure 25. Location of Other Connectors on Desktop Board D945GNT/D945GTP
