Intel D945PLRN

Intel Desktop Board D945PLRN Product Guide
44
Other Connectors

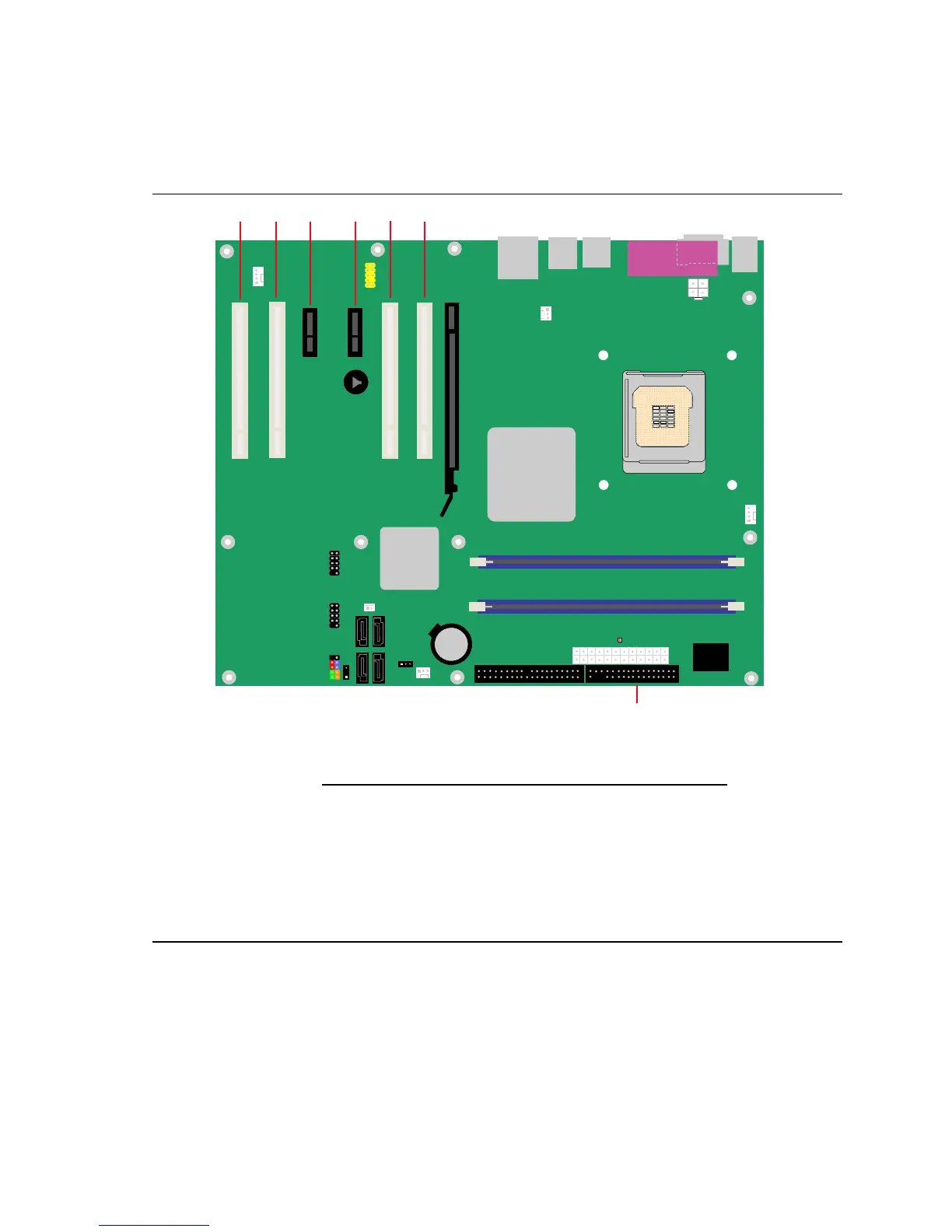

Figure 22 shows the location of the PCI add-in card, PCI Express 1x, and diskette drive connectors.
OM18136
ABC
D
E
F
G
Item Description
A PCI bus add-in card connector 4
B PCI bus add-in card connector 3
C PCI Express x1 connector 2
D PCI Express x1 connector 1
E PCI bus add-in card connector 2 (SMBus routed)
F PCI bus add-in card connector 1
G Diskette drive connector
Figure 22. Location of Other Connectors
