Intel Desktop Board D945PVS Product Guide
42
Installing the Rear Panel USB 2.0 and IEEE 1394a Adapters
Follow these instructions to install the rear panel USB 2.0 and IEEE 1394a adapter (see Figure 21):
1. Observe the precautions in "
Before You Begin" on page 23.
2. Attach the cable end with the black connector to the USB 2.0 (black) header on the desktop
board.
3. Attach the cable end with the blue connector to the IEEE 1394a header (blue) on the desktop
board.
4. Secure the cable’s metal bracket to the chassis back panel with a screw.
OM17684

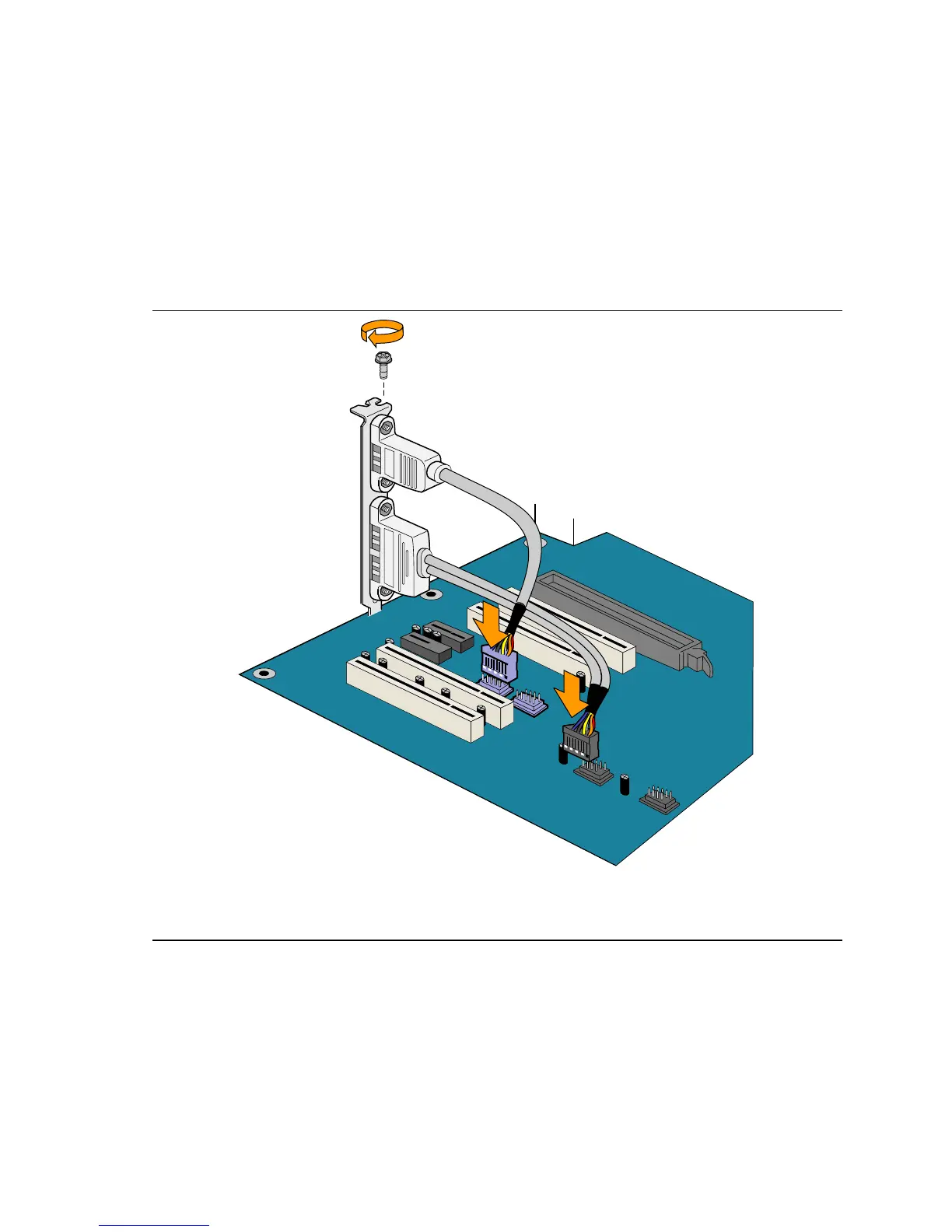

Figure 21. Connecting the Rear Panel USB 2.0 and IEEE 1394a Adapters
