Intel Desktop Board DG31GL Product Guide
16

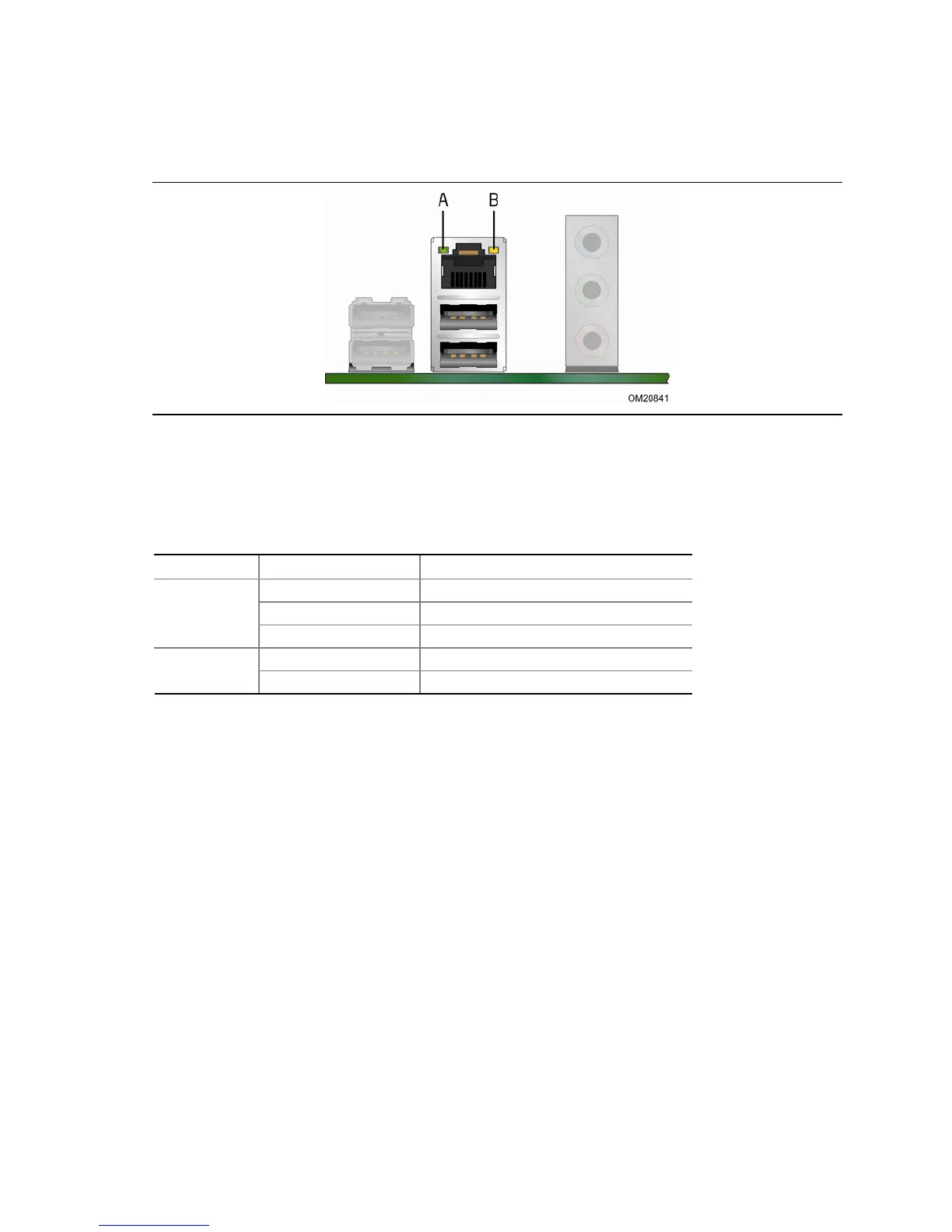

Two LEDs are built into the RJ-45 LAN connector located on the back panel (see
Figure 2). These LEDs indicate the status of the LAN.
Figure 2. LAN Status LEDs
Table 3 describes the LED states when the board is powered up and the LAN
subsystem is operating.
Table 3. LAN Connector LEDs
LED LED State Indicates
A (Green) Off LAN link is not established
On (steady state) LAN link is established
Blinking LAN activity is occurring
Off 10 Mb/s data rate B (Yellow)
On (steady state) 100 Mb/s data rate
Hi-Speed USB 2.0 Support
The Desktop Board supports up to eight USB 2.0 ports (four ports routed to the back
panel and four ports routed to two internal headers) via the ICH7. USB 2.0 ports are
backward compatible with USB 1.1 devices. USB 1.1 devices will function normally at
USB 1.1 speeds.
USB 2.0 support requires both an operating system and drivers that fully support
USB 2.0 transfer rates. Disabling Hi-Speed USB in the BIOS reverts all USB 2.0 ports
to USB 1.1 operation. This may be required to accommodate operating systems that
do not support USB 2.0.
