Installing and Replacing Desktop Board Components
39
Connecting to the Internal Headers and
Connectors
Before connecting cables to the internal headers and connectors, observe the
precautions in “
Before You Begin” on page 23. Figure 19 shows the location of the

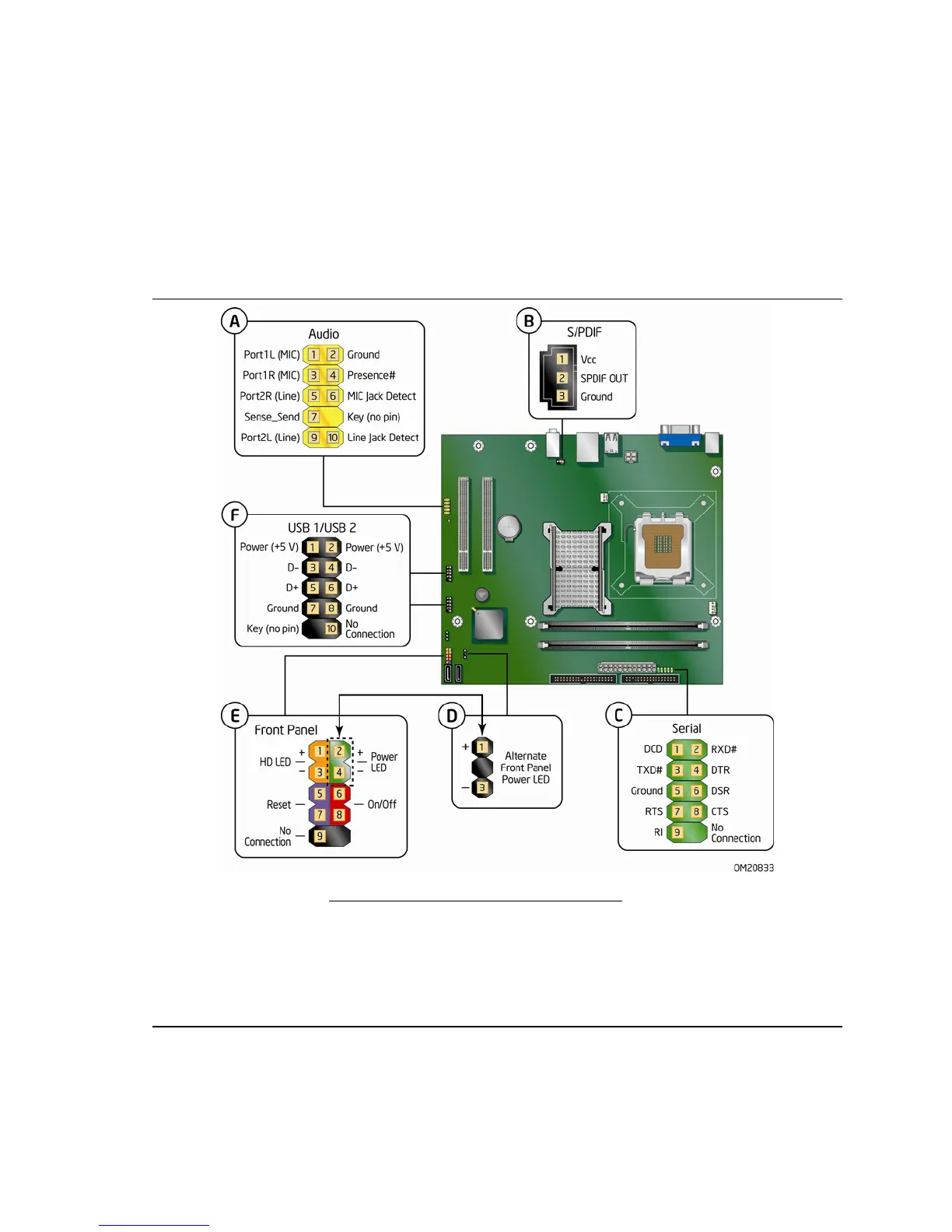

internal headers and connectors for Desktop Board DG31GL.
Item Description
A Front panel audio
B S/PDIF
C Serial port
D Alternate front panel power LED
E Front panel
F USB 2.0 (2)
Figure 19. Internal Headers and Connectors
