Installing and Replacing Desktop Board Components
51
To replace the battery, follow these steps:
1. Observe the precautions in "
Before You Begin" (see page 23).
2. Turn off all peripheral devices connected to the computer. Disconnect the
computer’s power cord from the AC power source (wall outlet or power adapter).
3. Remove the computer cover.
4. Locate the battery on the board (see
Figure 24).
5. With a medium flat-bladed screwdriver, gently pry the battery free from its
connector. Note the orientation of the “+” and “-” on the battery.
6. Install the new battery in the connector, orienting the “+” and “-” correctly.
7. Replace the computer cover.

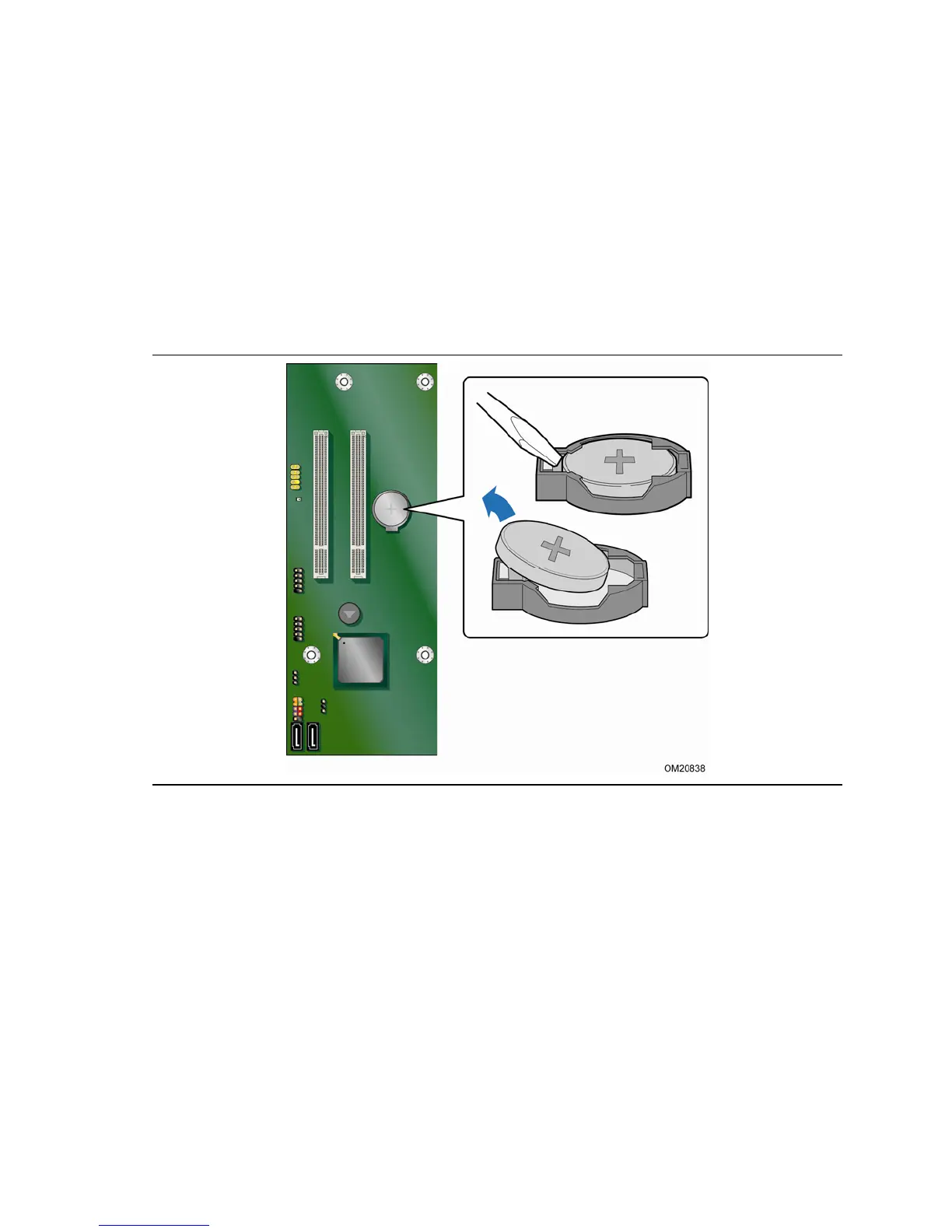

Figure 24. Removing the Battery
