Intel Desktop Board DG33BU Product Guide
32

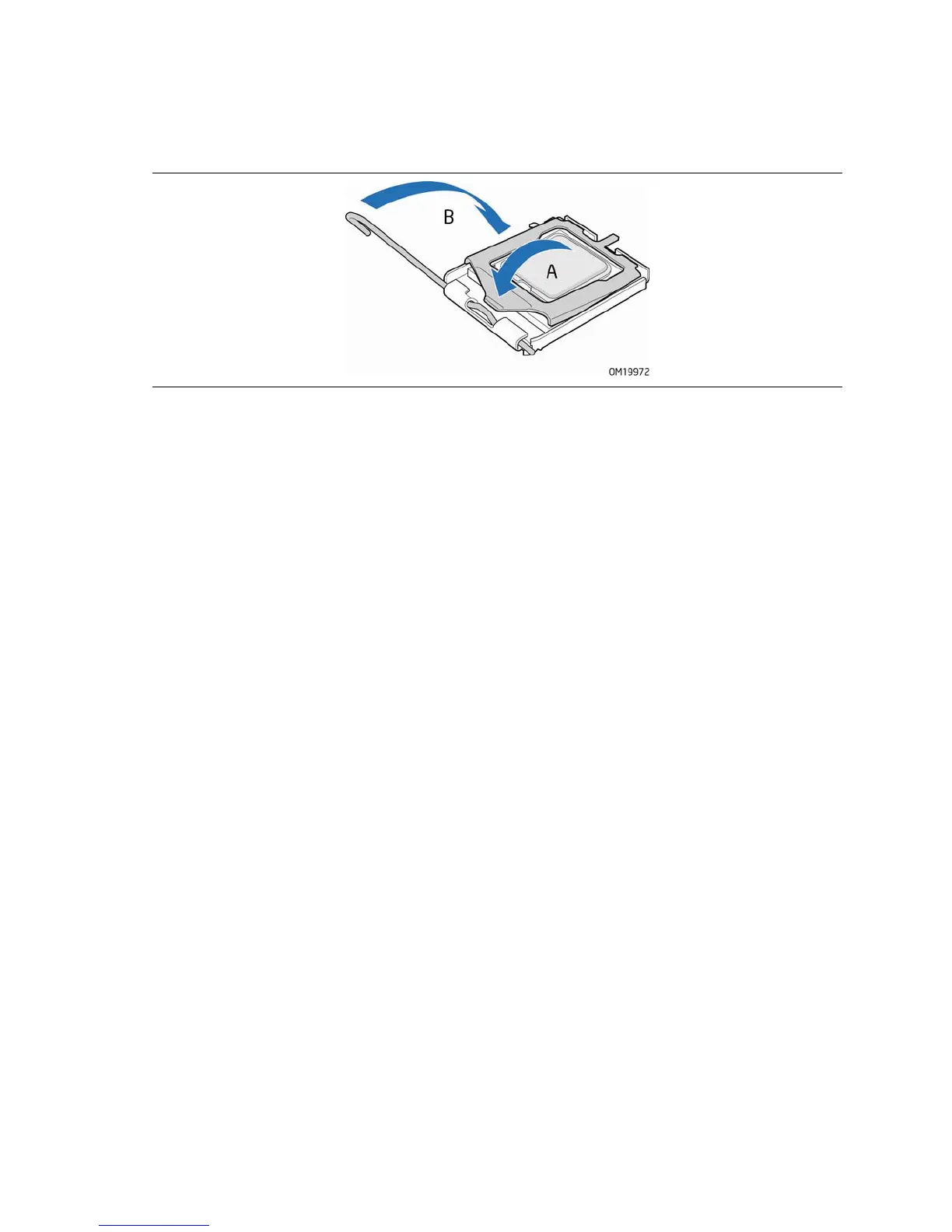

7. Pressing down on the load plate (Figure 11, A), close and engage the socket lever
(
Figure 11, B).
Figure 11. Close the Load Plate
Installing the Processor Fan Heat Sink
Desktop Board DG33BU has mounting holes for a processor fan heat sink. For
instructions on how to attach the processor fan heat sink to the Desktop Board, refer
to the boxed processor manual.
