Installing and Replacing Desktop Board Components
41
Connecting the Diskette Drive Cable
The diskette drive cable can be used to connect a single diskette drive to the Desktop
Board.
For correct function of the cable:
• Observe the precautions in "
Before You Begin" on page 25.
• Attach the cable end labeled P1 to the diskette drive connector on the Intel
Desktop Board (
Figure 20, A).
• Attach the cable end labeled P2 to the diskette drive (
Figure 20, B).

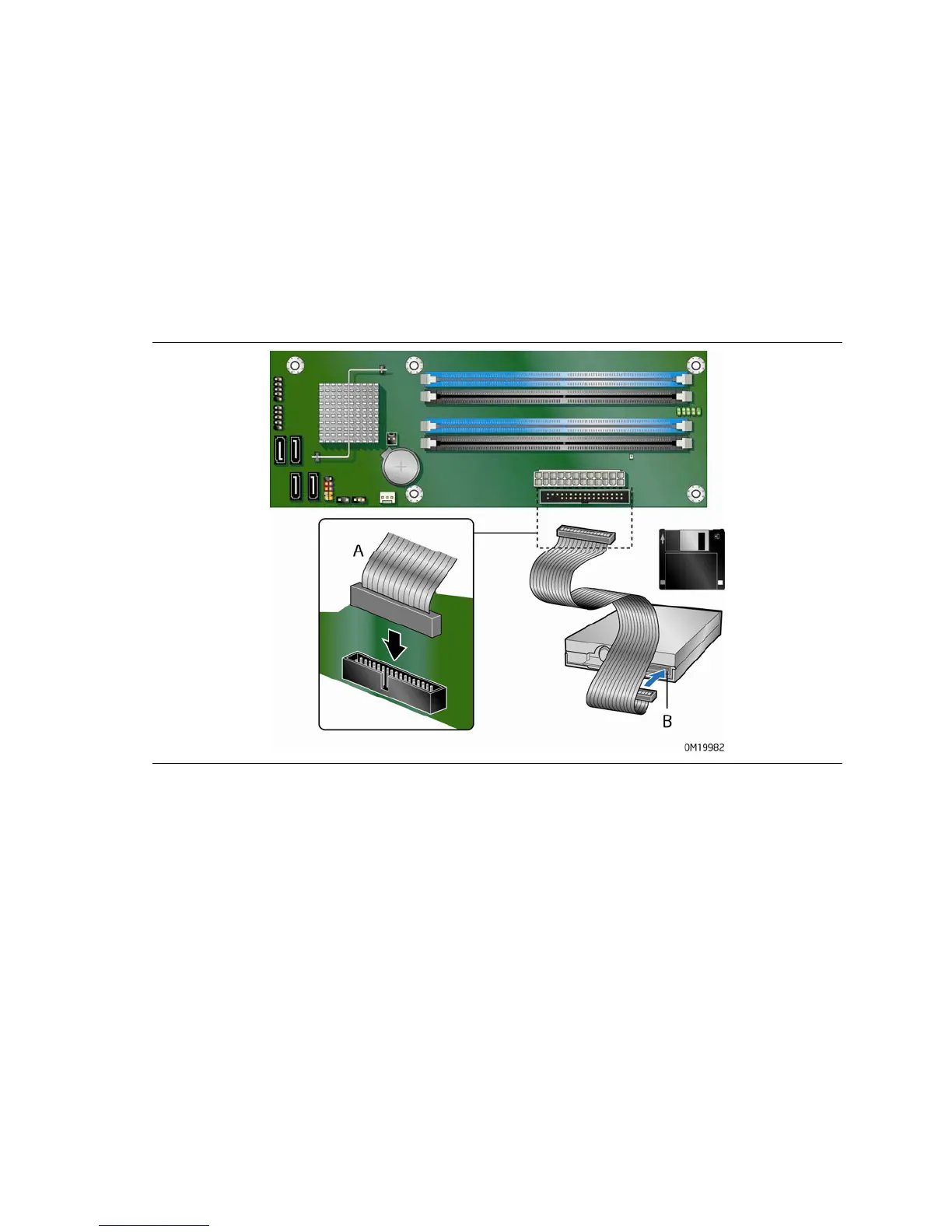

Figure 20. Connecting the Diskette Drive Cable
