Intel Desktop Board DG33BU Product Guide
52
Setting the BIOS Configuration Jumper
NOTE
Always turn off the power and unplug the power cord from the computer before
moving the jumper. Moving the jumper with the power on may result in unreliable
computer operation.
Figure 27 shows the location of the Desktop Board’s BIOS configuration jumper block.

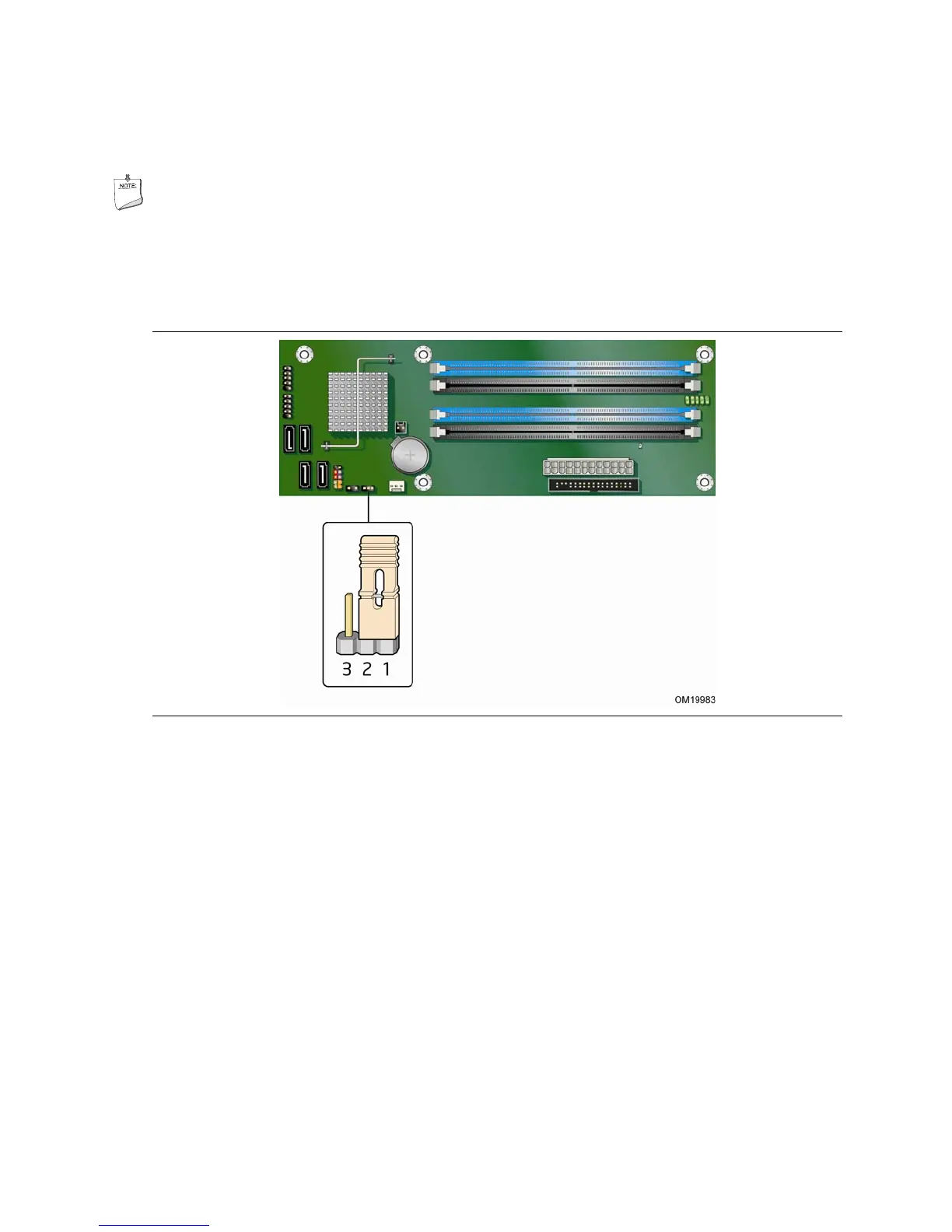

Figure 27. Location of the BIOS Configuration Jumper Block
The three-pin BIOS jumper block enables all board configurations to be done in the
BIOS Setup program.
Table 11 shows the jumper settings for the BIOS Setup
program modes.
