Intel Desktop Board DG33BU Product Guide
40
Removing the PCI Express x16 Card
Follow these instructions to remove the PCI Express x16 card from the connector:
1. Observe the precautions in "
Before You Begin" on page 25.
2. Remove the screw (
Figure 19, A) that secures the card’s metal bracket to the
chassis back panel.
3. Push the card ejector lever down using the tip of a pencil or similar tool
(
Figure 19, B) in the notch. This will release the card from the connector (C).
4. Pull the card straight up.

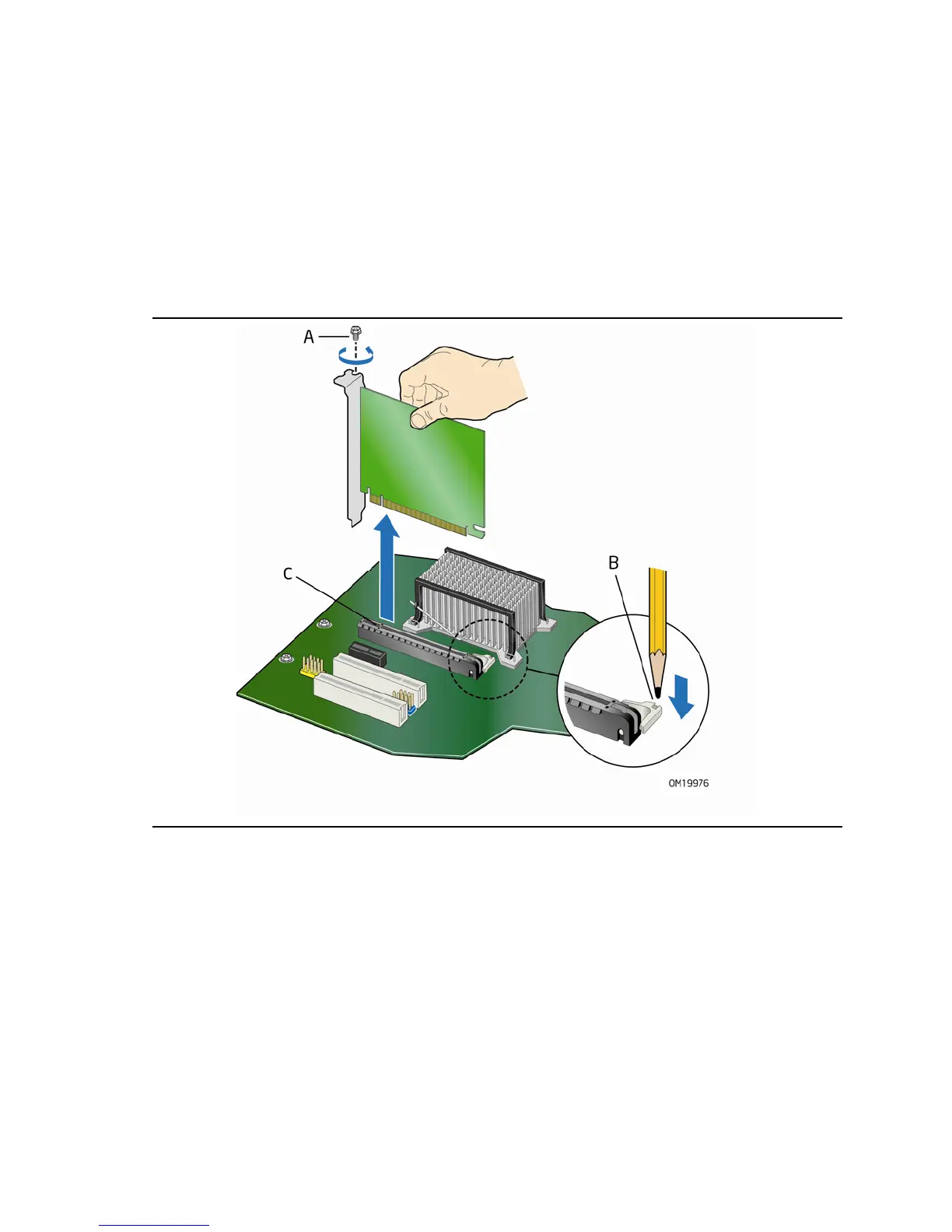

Figure 19. Removing a PCI Express x16 Card
