Intel Desktop Board DG33BU Product Guide
44
Connecting the Serial ATA (SATA) Cables
SATA cables support the Serial ATA protocol. Each cable can be used to connect a
single SATA drive to the Desktop Board. For correct cable function:
1. Observe the precautions in "
Before You Begin" on page 25.
2. Attach one end the SATA cable to one of the SATA connectors on the board
(
Figure 22, A).
3. Attach the other end of the SATA cable to the SATA drive (
Figure 22, B).

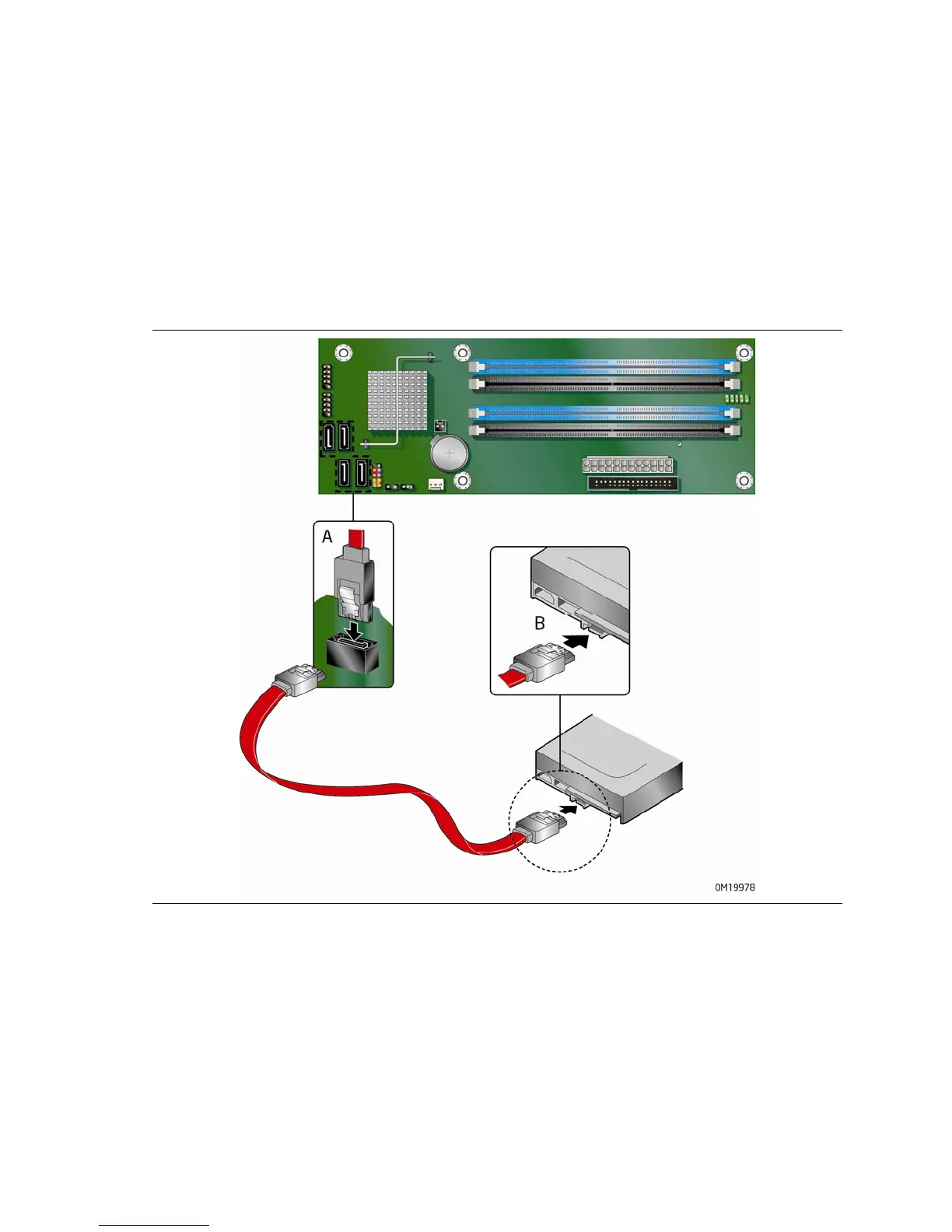

Figure 22. Connecting a Serial ATA Cable
