Intel DH61CR Product Guide

Desktop Board Features
21
Intel Manageability Technology
Intel offers IT organizations tamper-resistant and persistent management capabilities.
With Intel manageability, IT organizations can easily get accurate platform
information, and can perform remote updating, diagnostics, debugging and repair of a
system, regardless of the state of the operating system or the power state of the
system.
The Intel manageability subsystem consists of:
• Intel
®
Management Engine (Intel
®
ME) microcontroller embedded in the Intel H61
PCH
• BIOS/SPI Flash
• Intel
®
MEBX reset header
Intel
®
MEBX Reset Header
This header (see Figure 3) allows you to reset the Intel ME configuration to factory
defaults. Momentarily shorting pins 1 and 2 with a jumper (not supplied) will
accomplish the following:
• Return all Intel ME parameters to their default values.
• Delete any user entered information, including PID/PPS and user entered Hash
Certificates. USB key and remote configuration data will be removed if the
parameters are not default parameters.
• Reset the Intel MEBX password to the default value (admin).

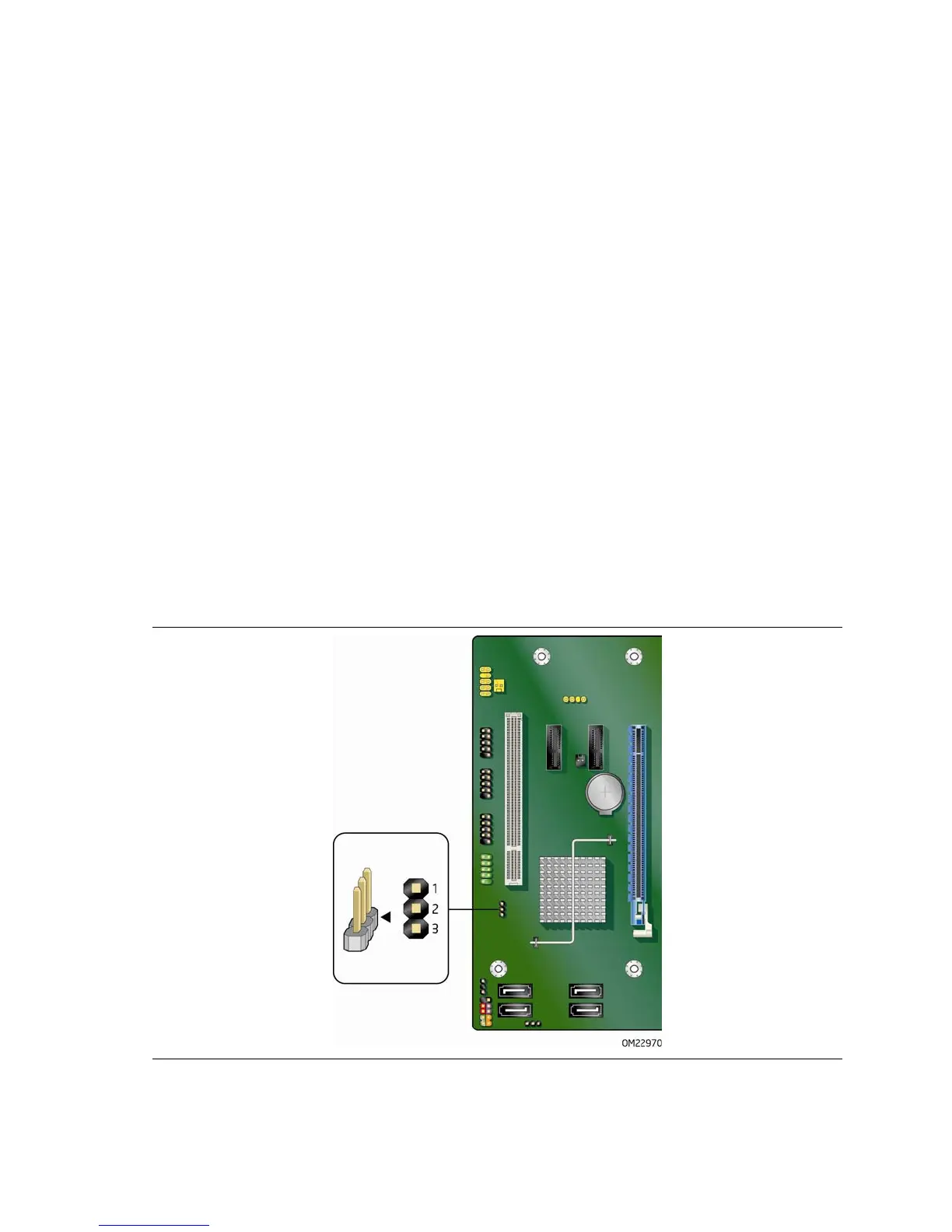

Figure 3. Location of the Intel MEBX Reset Header

Intel DH61CR Specifications

General

Form Factor	Micro ATX
Chipset	Intel H61
Socket	LGA 1155
Memory Type	DDR3
Memory Slots	2
Max Memory	16 GB
Memory Standard	DDR3 1066/1333
PCIe x16 Slots	1
PCIe x1 Slots	2
PCI Slots	1
RAID Support	No
SATA Ports	4 x SATA 3Gb/s
USB Ports	4 x USB 2.0
VGA	1 x VGA
DVI	Yes
