Connecting Serial ATA (SATA) Cables
SATA cables support the Serial ATA protocol. Each cable can be used to connect one
internal SATA drive to the Desktop Board. For correct cable function:
1. Observe the precautions in “Before You Begin” on page 27.
2. Attach
one end of the SATA cable to one of the SATA connectors on the board
(Figure 18, A) and attach the other end of the
cable to the SATA drive
(Figure 18, B).

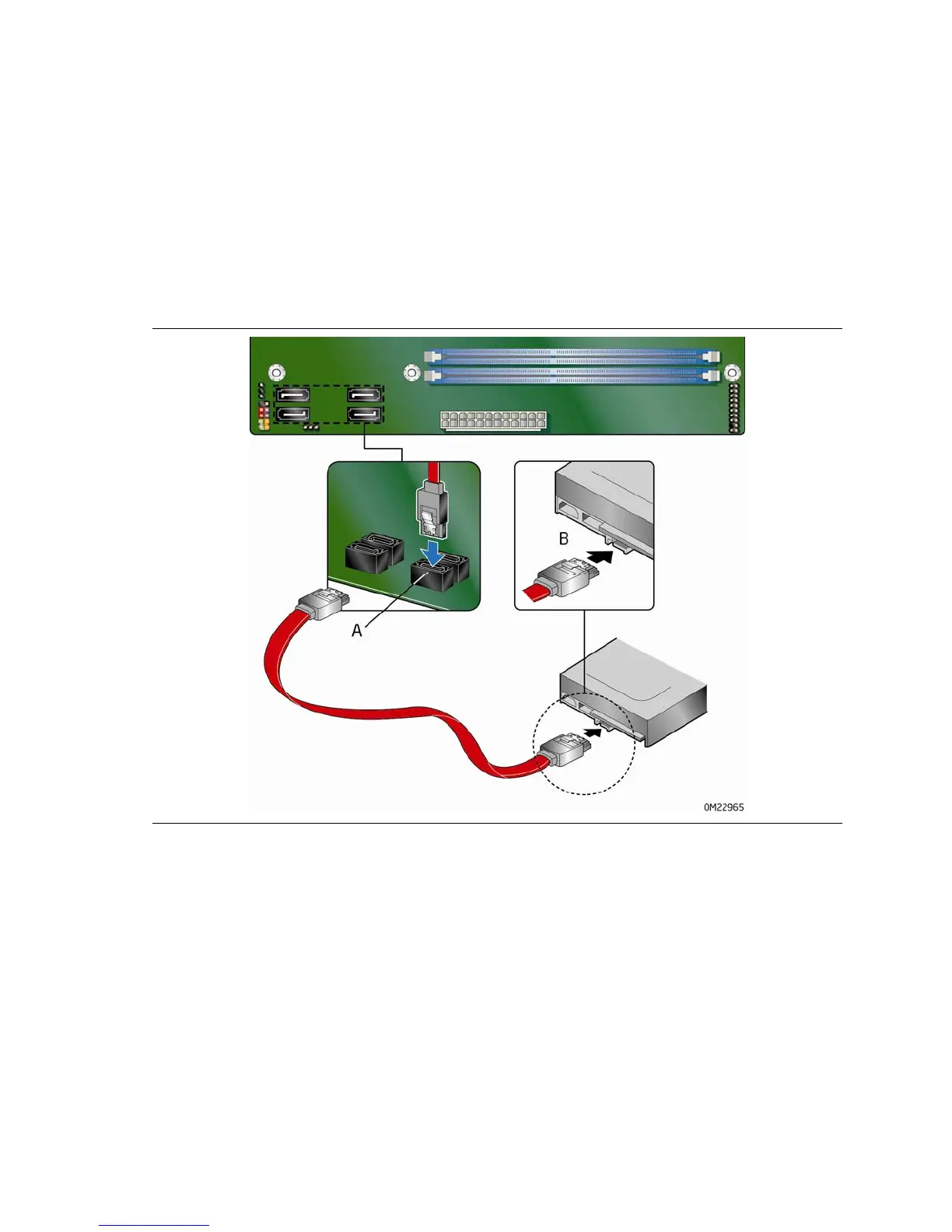

Figure 18. Connecting a Serial ATA Cable

Intel DH61CR Specifications

General

Form Factor	Micro ATX
Chipset	Intel H61
Socket	LGA 1155
Memory Type	DDR3
Memory Slots	2
Max Memory	16 GB
Memory Standard	DDR3 1066/1333
PCIe x16 Slots	1
PCIe x1 Slots	2
PCI Slots	1
RAID Support	No
SATA Ports	4 x SATA 3Gb/s
USB Ports	4 x USB 2.0
VGA	1 x VGA
DVI	Yes
