Connecting to the Internal Headers
Before connecting cables to any of the internal headers, observe the precautions in
“Before You Begin” on page 27. Figure 19 shows the location of the internal headers
and co
nnectors on Intel Desktop Board DH61CR.

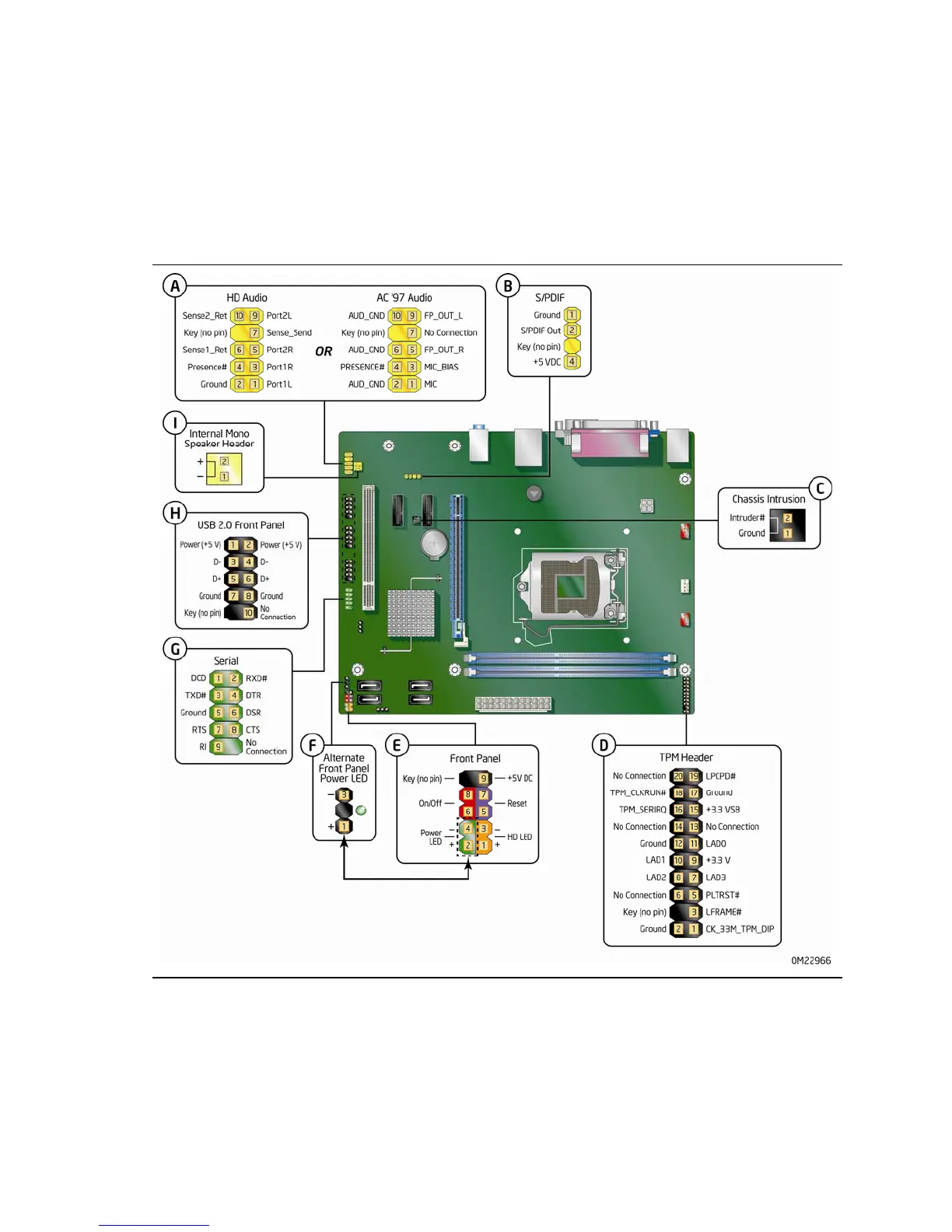

Figure 19. Internal Headers
