Intel Desktop Board DH61HO Technical Product Specification
22
1.10.2 Audio Headers and Connectors
The board contains audio connectors and headers on both the back panel and the
component side of the board. The component-side audio header is a yellow 2 x 5-pin
header that provides headphone and mic in signals for front panel audio connectors.
For information about Refer to
The locations of the front panel audio header Figure 9, page 39
The signal names of the front panel audio header Table 13 and Table 14, page 41
The back panel audio connectors Section 2.2.1, page 38
1.10.2.1 Analog Audio Connectors
The available configurable back panel audio connectors are shown in Figure 4.
Item Description
A Line in
B Line out/front speakers
C Mic in/side surround

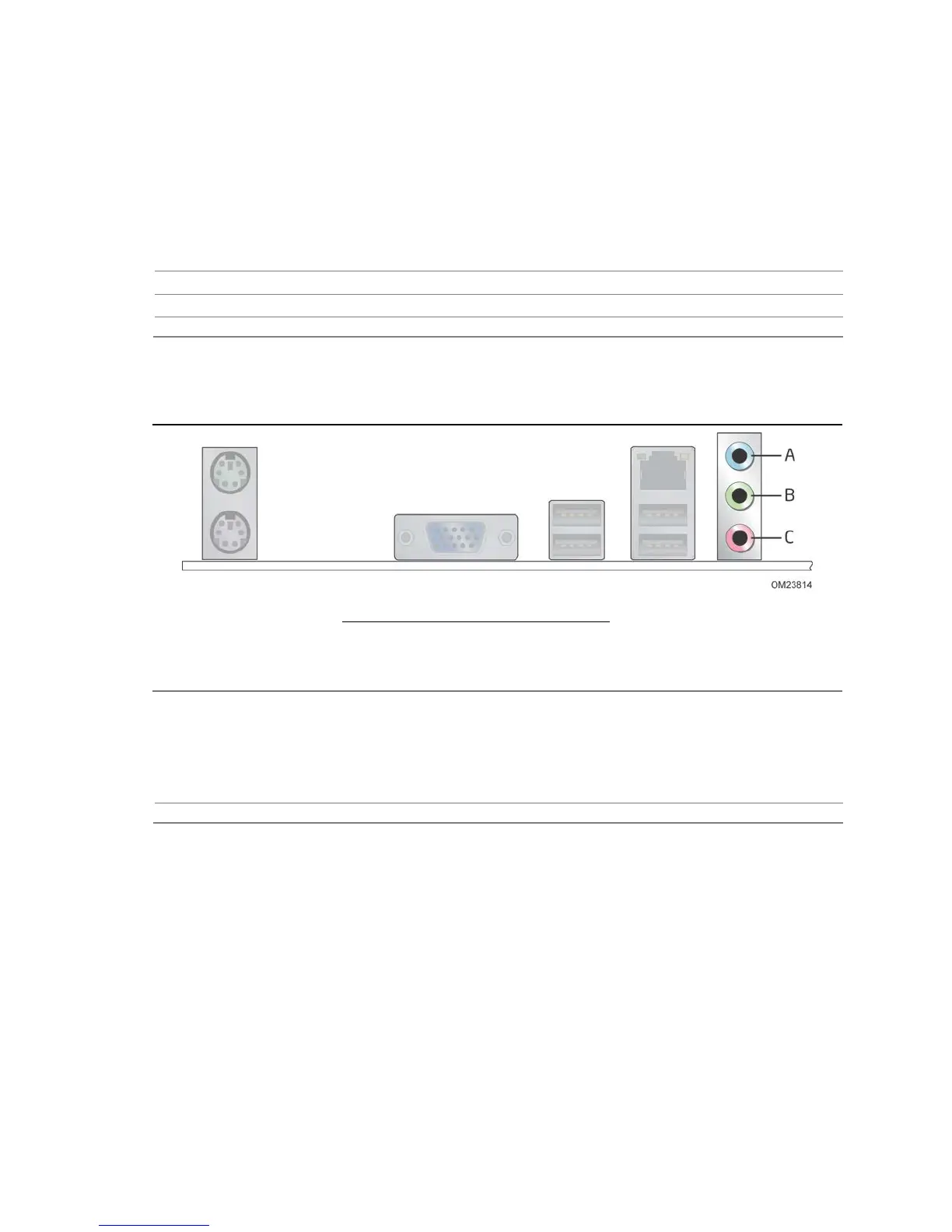

Figure 4. Back Panel Audio Connector Options
The back panel audio connectors are configurable through the audio device drivers.
For information about Refer to
The back panel audio connectors Section 2.2.1, page 38
The front panel headphone output is supported using a separate audio channel pair
allowing multi-streaming audio configurations such as simultaneous 5.1 surround
playback and stereo audio conferencing (through back panel speakers and a front
panel headset, respectively).
