Intel Desktop Board DH61HO Technical Product Specification
52

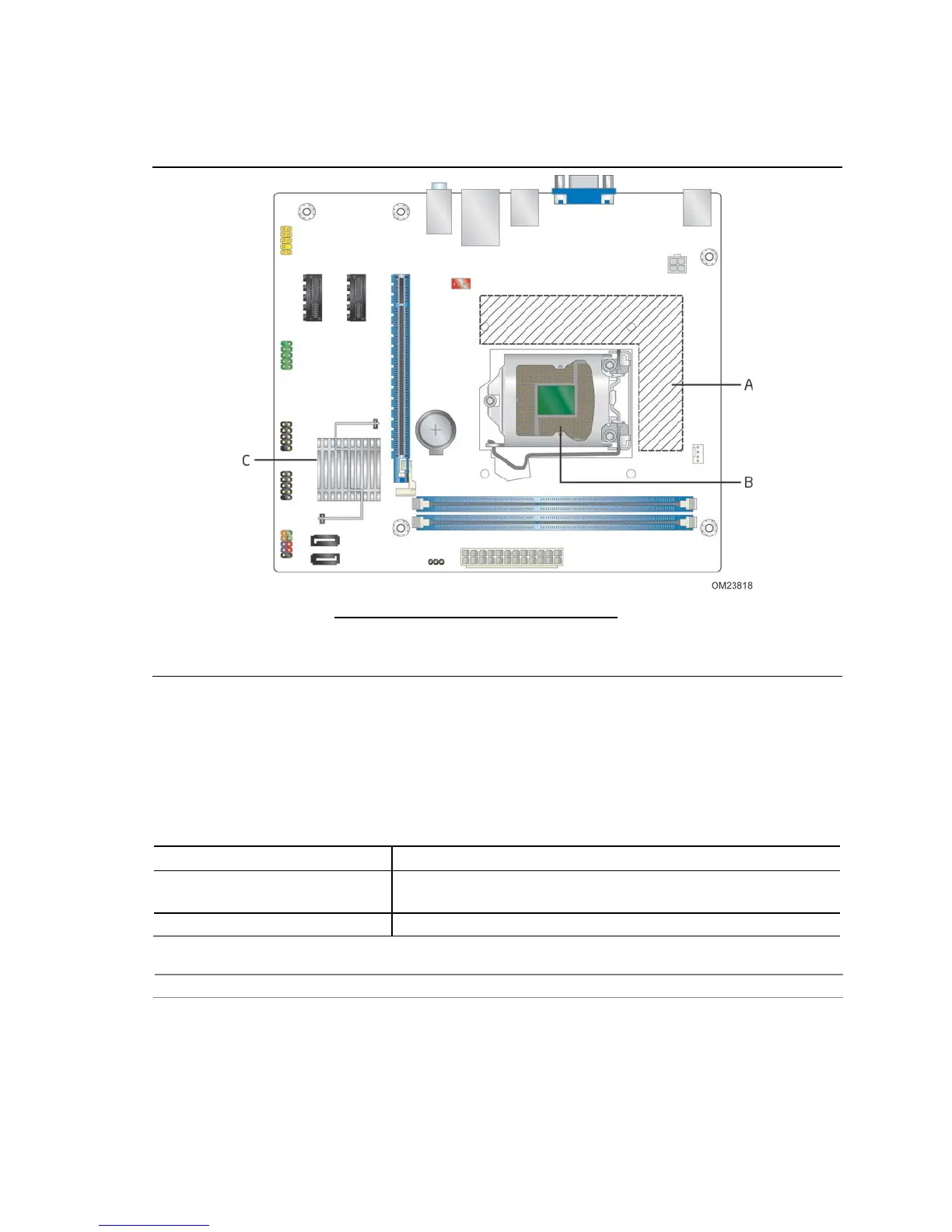

Figure 14 shows the locations of the localized high temperature zones.
Item Description
A Processor voltage regulator area
B Processor
C Intel H61 Express Chipset
Figure 14. Localized High Temperature Zones
Table 25 provides maximum case temperatures for the components that are sensitive
to thermal changes. The operating temperature, current load, or operating frequency
could affect case temperatures. Maximum case temperatures are important when
considering proper airflow to cool the board.
Table 25. Thermal Considerations for Components
Component Maximum Case Temperature
Processor For processor case temperature, see processor datasheets and
processor specification updates
Intel H61 Express Chipset 111
o
C (under bias)
For information about Refer to
Processor datasheets and specification updates Section 1.2, page 16

Intel DH61HO Specifications

General

Form Factor	Micro ATX
Chipset	Intel H61
Socket	LGA 1155
Memory Type	DDR3
Memory Slots	2
Maximum Memory	16 GB
PCI Express x16 Slots	1
PCIe 2.0 x1 Slots	2
SATA Ports	4 x SATA 3.0 Gb/s
Audio	Realtek ALC892
Audio Codec	Realtek ALC892
LAN Controller	Realtek RTL8111E
Video Outputs	VGA, DVI-D
USB Ports	10 (4 x USB 3.0, 6 x USB 2.0)
