Technical Reference
47
2.2.2 Component-side Connectors and Headers (Top)

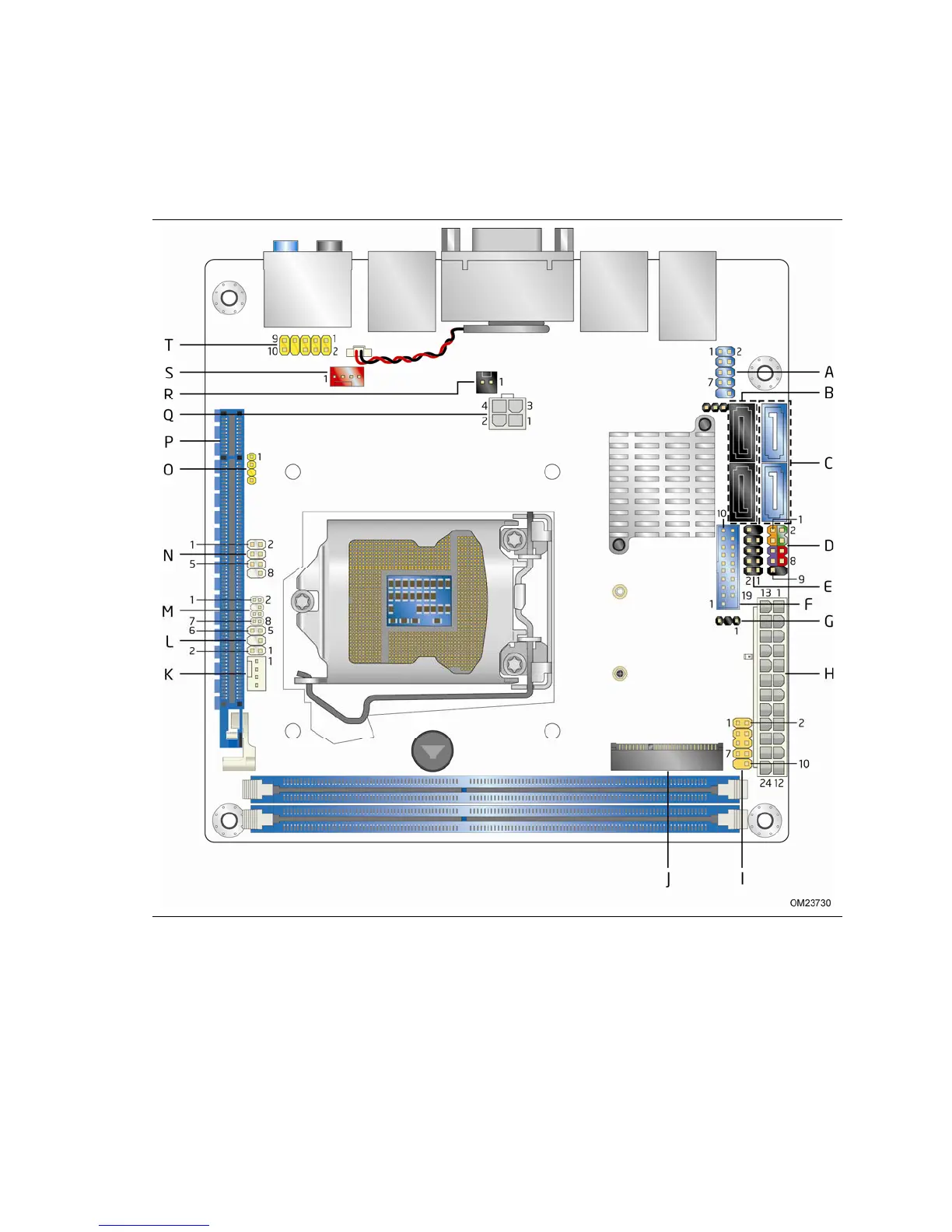

Figure 11 shows the locations of the connectors and headers on the top-side of the
board.
Figure 11. Component-side Connectors and Headers
