Intel Desktop Board DQ67EP Product Guide
56
Connecting System Fan and Power Supply
Cables
Connecting a System Fan Cable
Connect a fan cable to the system fan header on the Desktop Board. Figure 22 shows
the location of the system fan header.

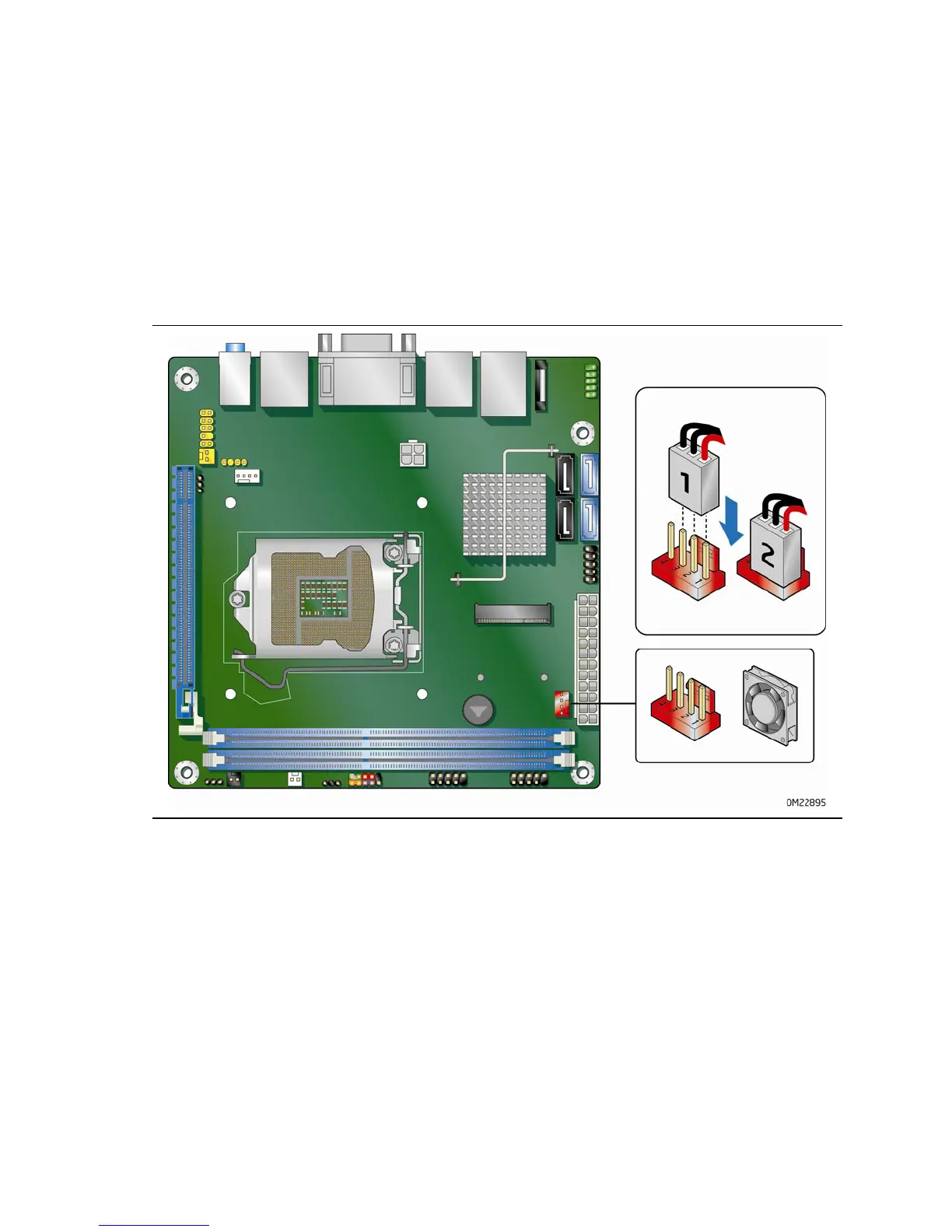

Figure 22. Location of the System Fan Header
