Intel Desktop Board DQ67EP Product Guide
12
Desktop Board Components
Figure 1 shows the approximate location of the major components on Intel Desktop
Board DQ67EP.

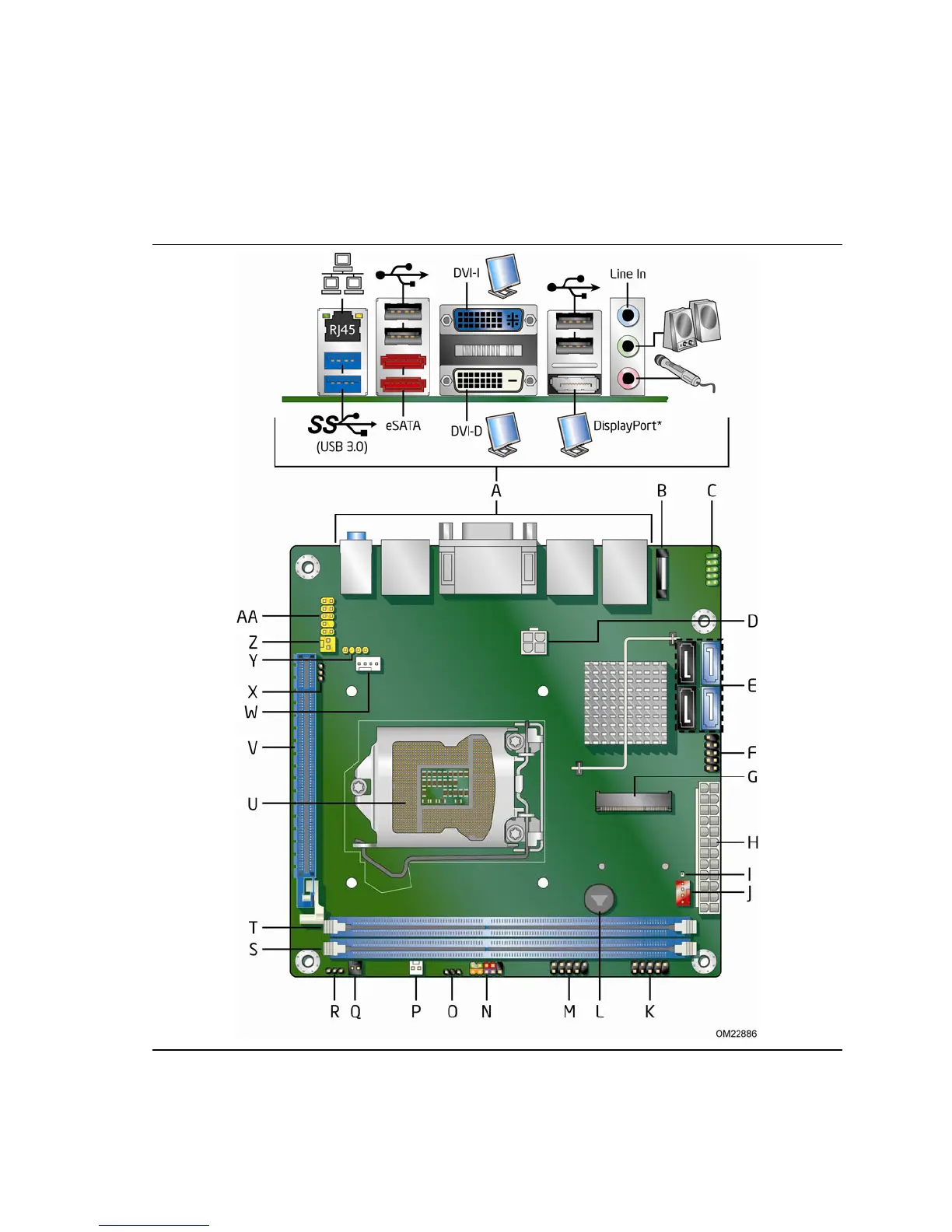

Figure 1. Intel Desktop Board DQ67EP Components
