Intel Desktop Board DQ67EP Product Guide
58
Setting the BIOS Configuration Jumper
NOTE
Always turn off the
power to the comp
uter
before moving the jumper. Moving the
jumper with the power on may result
in unreliable computer operation.
Figure 24 shows t
he location
of the Desktop Board’s BIOS
confi
gurati
on jumper block.

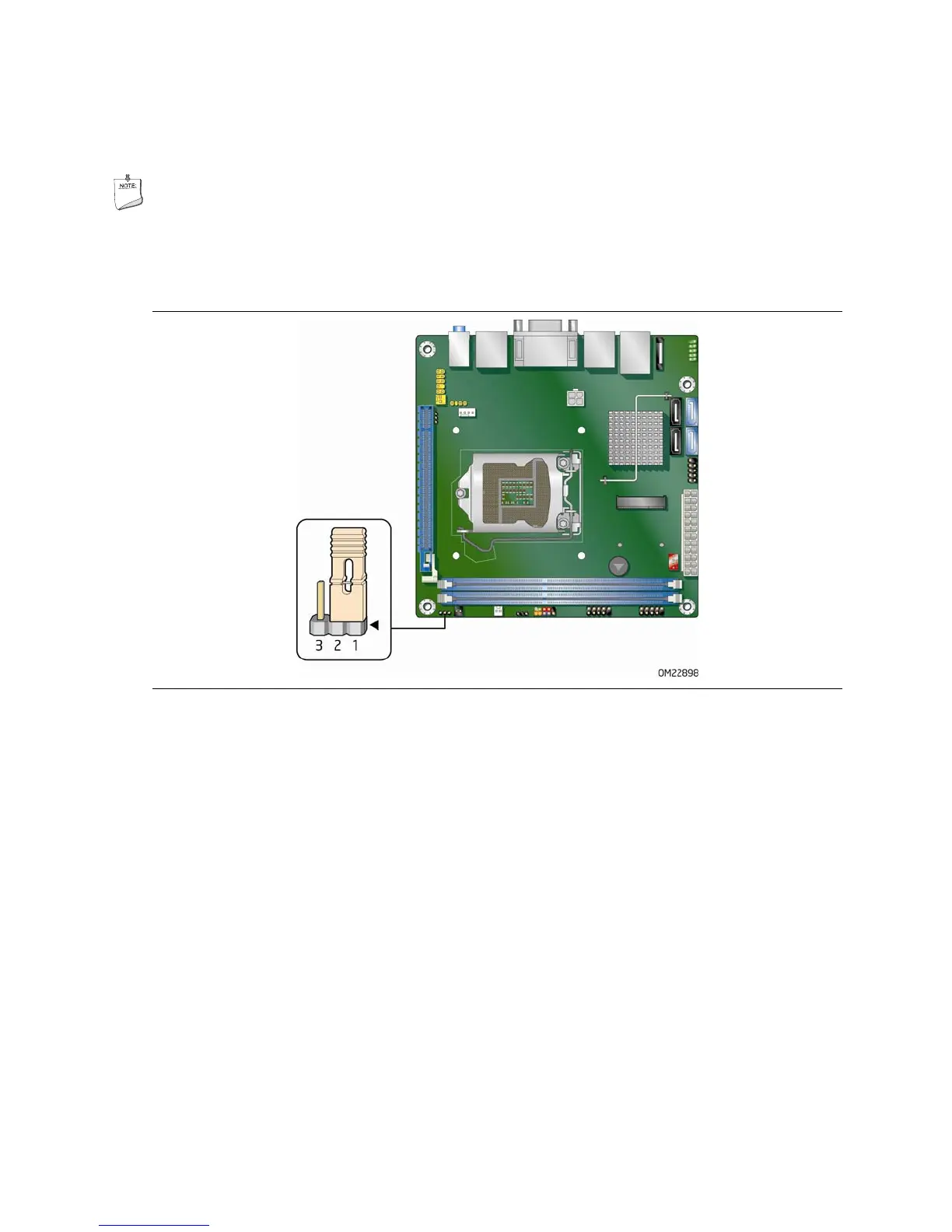

Figure 24. Location of t
he BIOS Configuration Jumper Block
57
59
