Product Description
13
1.1.2 Board Layout
Figure 1 shows the location of the major components on Intel Desktop Board DX79SI.

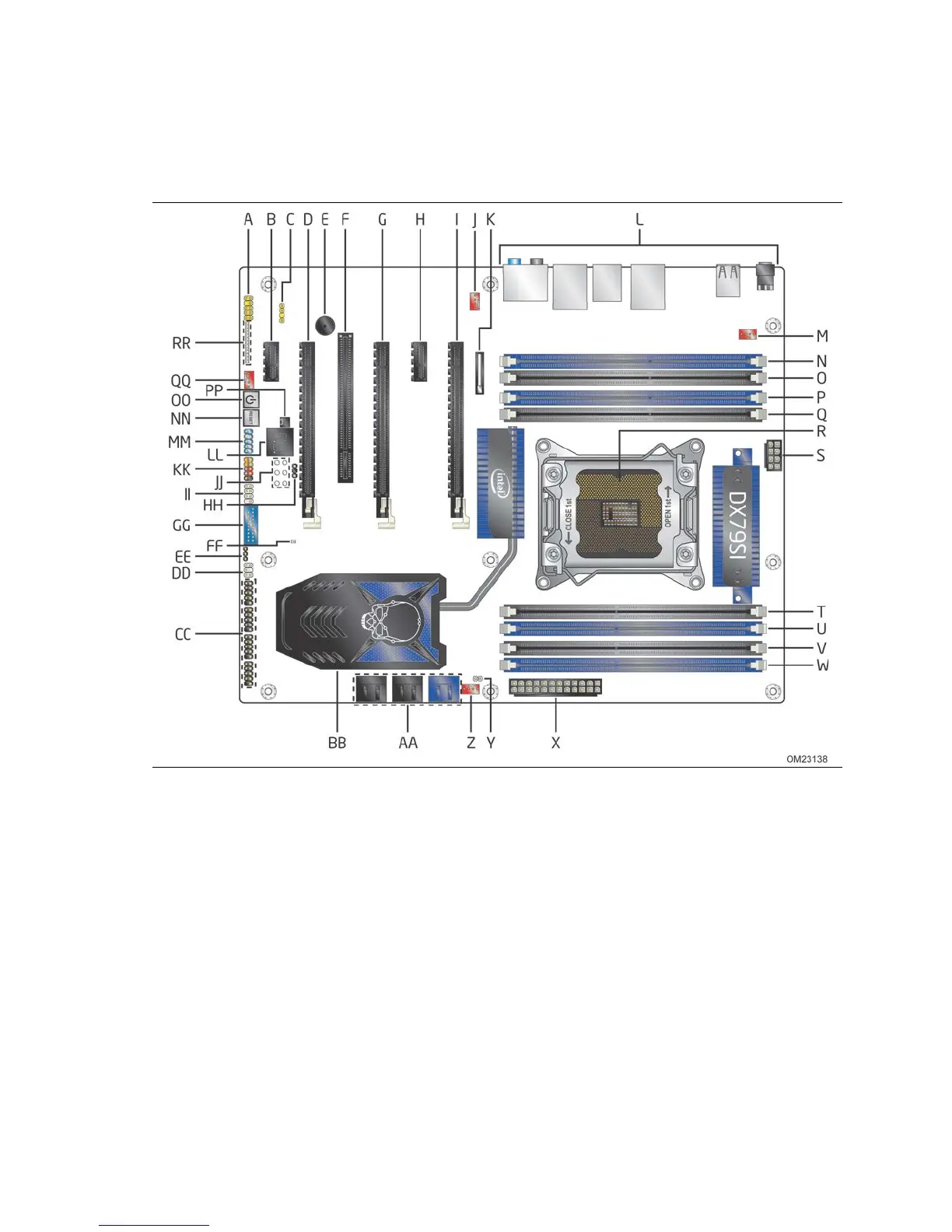

Figure 1. Major Board Components
Table 3 lists the components identified in Figure 1.
