Product Description
25

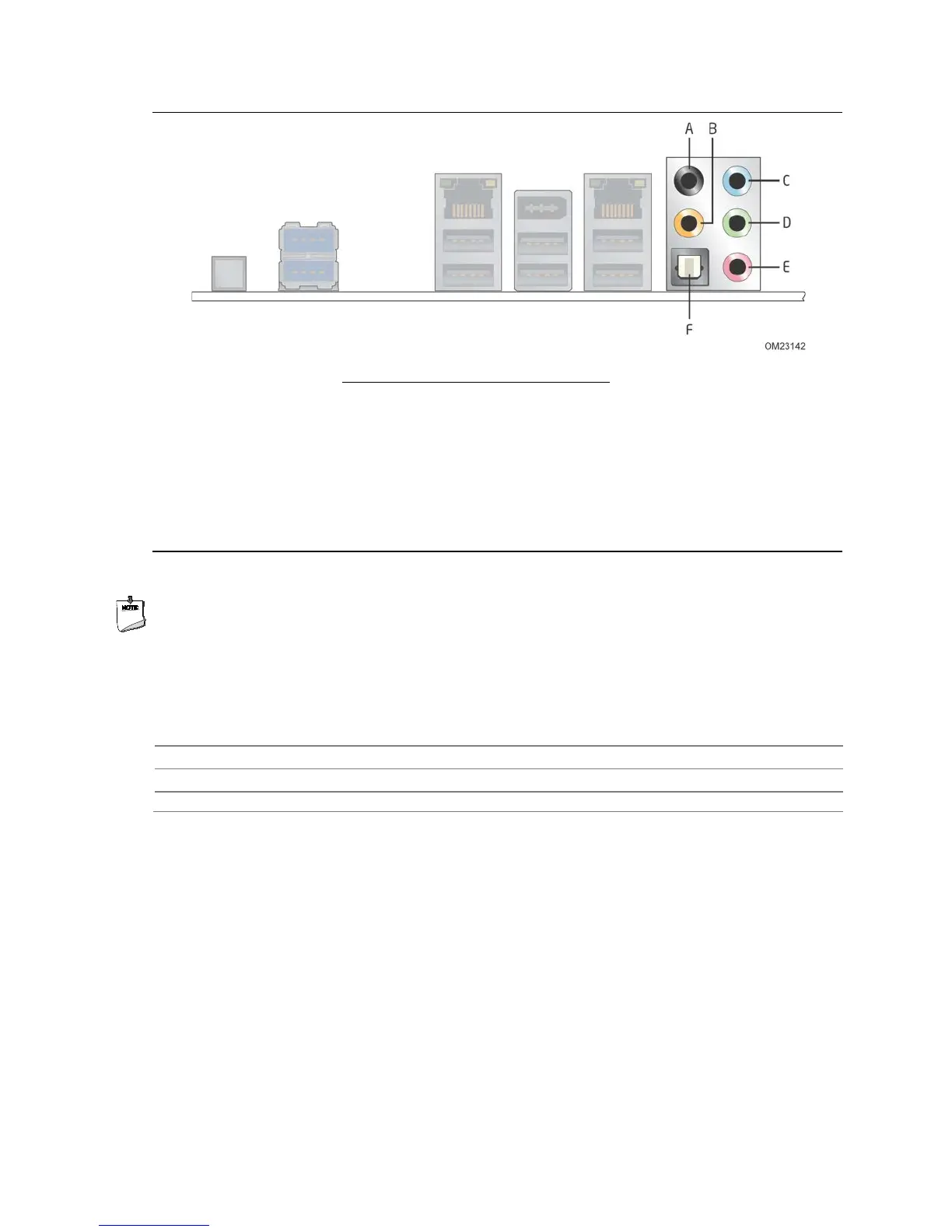

Item Description
A Rear surround
B Center channel and LFE
(subwoofer)
C Line in
D Line out/front speakers
E Mic in/side surround
F S/PDIF digital audio out
(optical)
Figure 4. Back Panel Audio Connectors
NOTE
The back panel audio line out connector is designed to power headphones or amplified
speakers only. Poor audio quality occurs if passive (non-amplified) speakers are
connected to this output.
For information about Refer to
The locations of the front panel audio header and S/PDIF audio header Figure 13, page 48
The signal names of the front panel audio header and S/PDIF audio header Section 2.2.2.1, page 50
The back panel audio connectors Section 2.2.1, page 46
