Intel Desktop Board DX79SI Technical Product Specification
48
2.2.2 Component-side Connectors and Headers

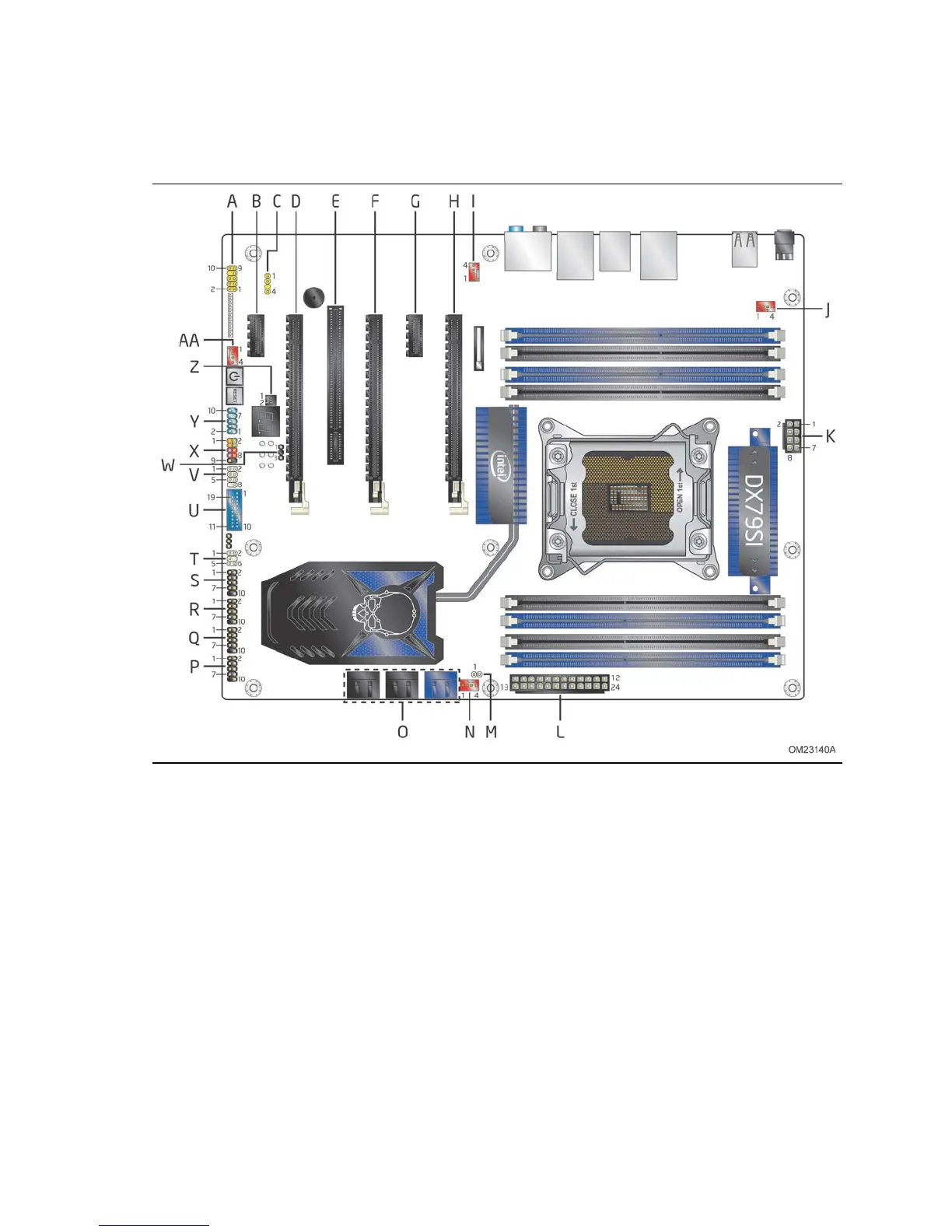

Figure 13 shows the locations of the component-side connectors and headers.
Figure 13. Component-side Connectors and Headers
Table 12 lists the component-side connectors and headers identified in Figure 13.
