Product Description
29
The back panel audio connectors are configurable through the audio device drivers.

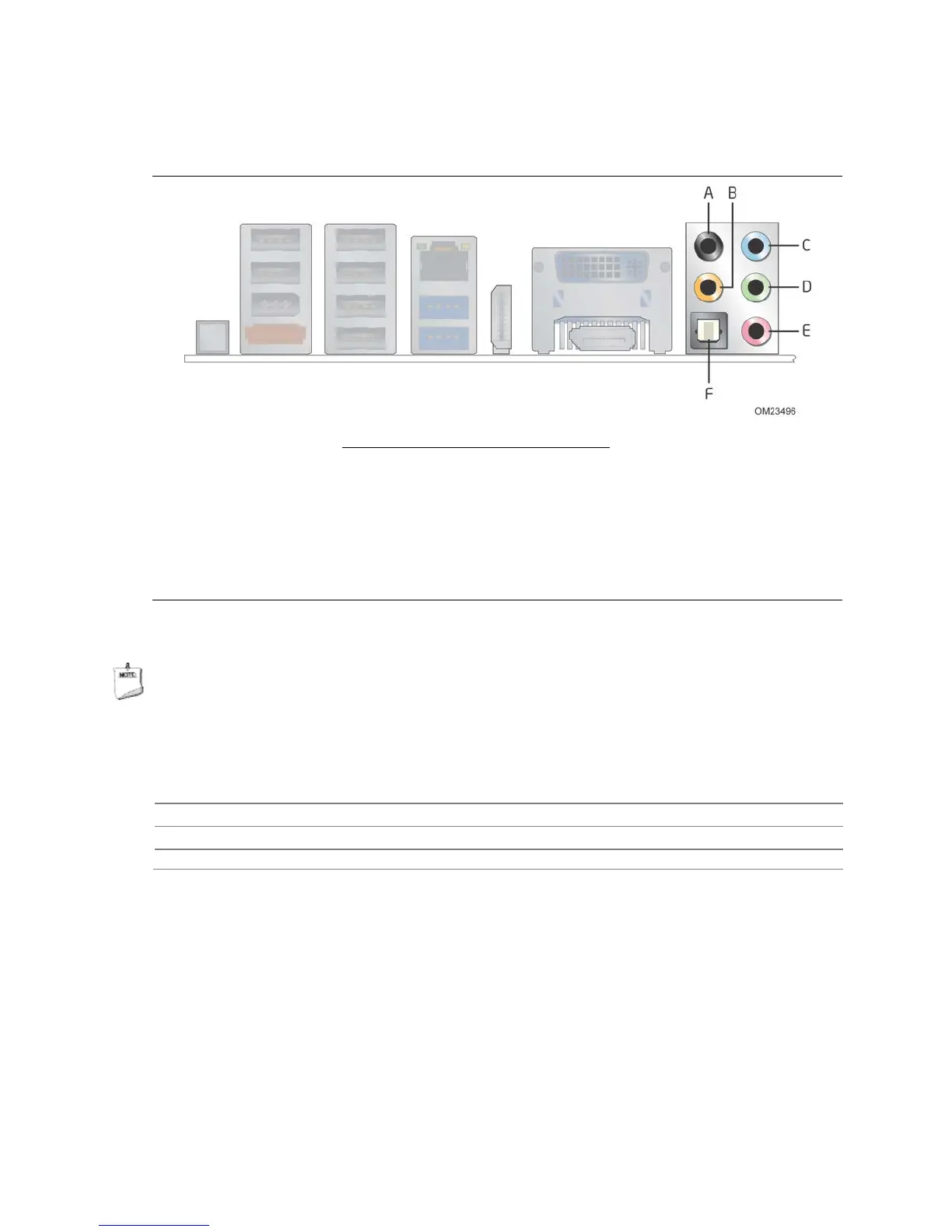

The available configurable back panel audio connectors are shown in Figure 4.
Item Description
A Rear surround
B Center channel and LFE
(Subwoofer)
C Line in
D Line out/front speakers
E Mic in/side surround
F S/PDIF out (optical)
Figure 4. Back Panel Audio Connectors
NOTE
The back panel audio line out connector is designed to power headphones or amplified
speakers only. Poor audio quality occurs if passive (non-amplified) speakers are
connected to this output.
For information about Refer to
The locations of the front panel audio header and S/PDIF audio header Figure 12, page 51
The signal names of the front panel audio header and S/PDIF audio header Section 2.2.2.1, page 53
The back panel audio connectors Section 2.2.1, page 50
