Intel DZ68BC - Thermal Monitoring; Thermal Sensors and Fan Headers

Product Description
35
1.13.4 Thermal Monitoring

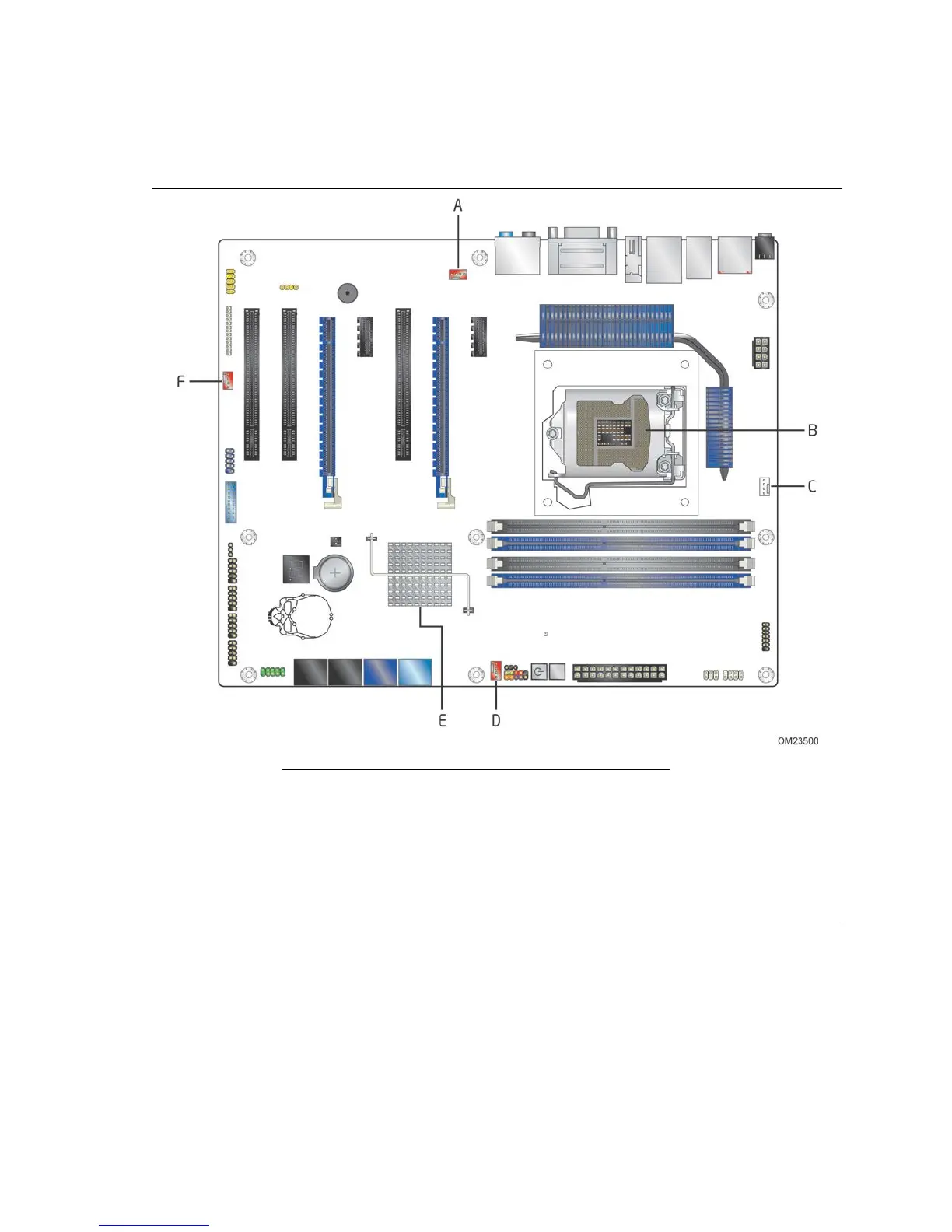

Figure 7 shows the locations of the thermal sensors and fan headers.
Item Description
A Rear chassis fan header
B Thermal diode, located on processor die
C Processor fan header
D Front chassis fan header
E Thermal diode, located on the Intel Z68 Express
Chipset
F Auxiliary fan header
Figure 7. Thermal Sensors and Fan Headers
