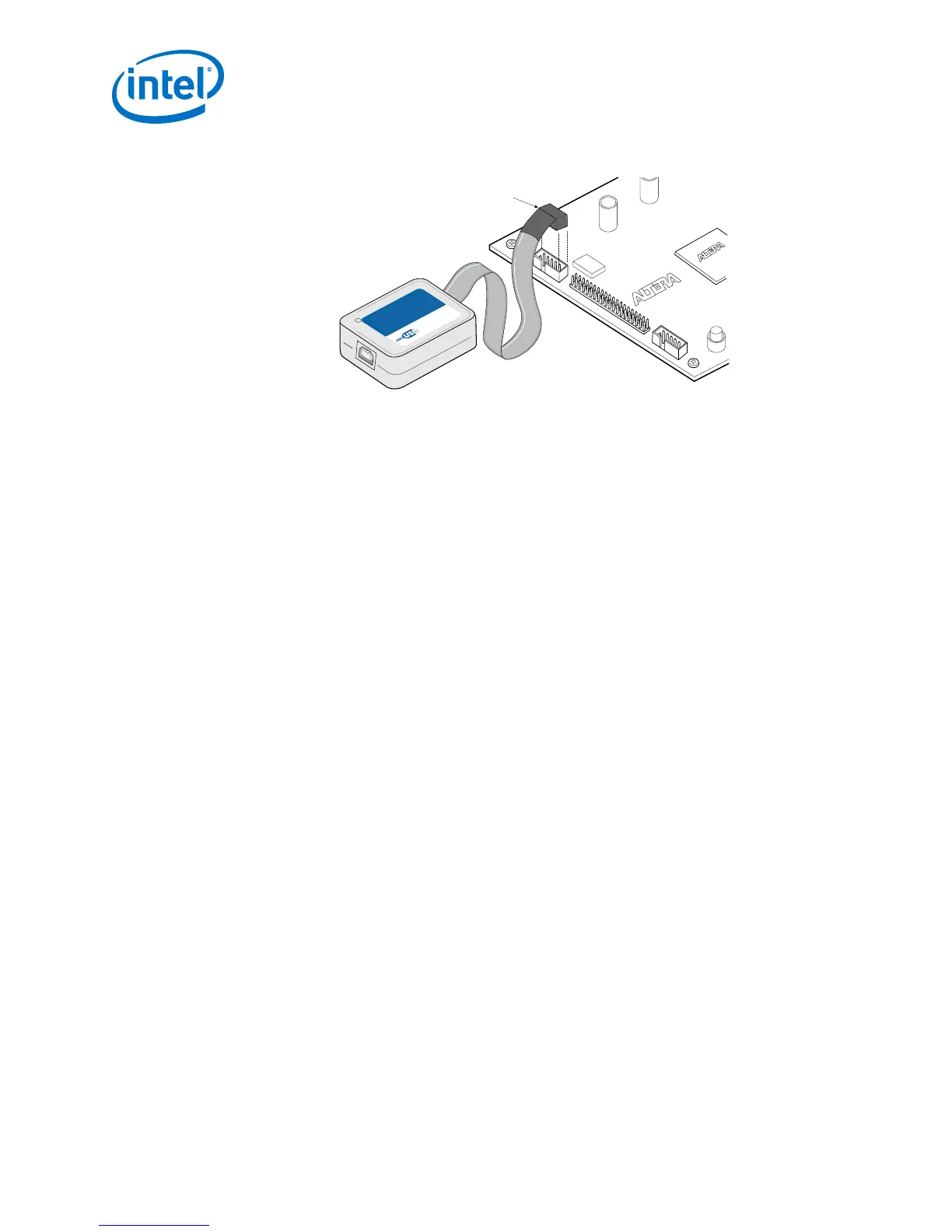

Figure 5. Connection to the Device Board
P
I
N
1
T
A
R
G
E
T
B
L
A
S
T
E
R
S
I
D
E
S
I
D
E
10-pin Female Connector
(connects to target printed
circuit board 10-pin male
header)
4. Connect the power cable to the device board.
The Found New Hardware wizard may open and prompt you to install a new
hardware driver. Close the wizard and follow the steps provided in subsequent
sections to install the hardware driver.
5. To disconnect the USB Download Cable from the device board, follow these steps
to ensure that the cable is not damaged.
a. Remove power from the device board.
b. Unplug the USB Download Cable from the board.
c. Unplug the USB Download Cable from your PC.
3 Using the USB Download Cable
