10

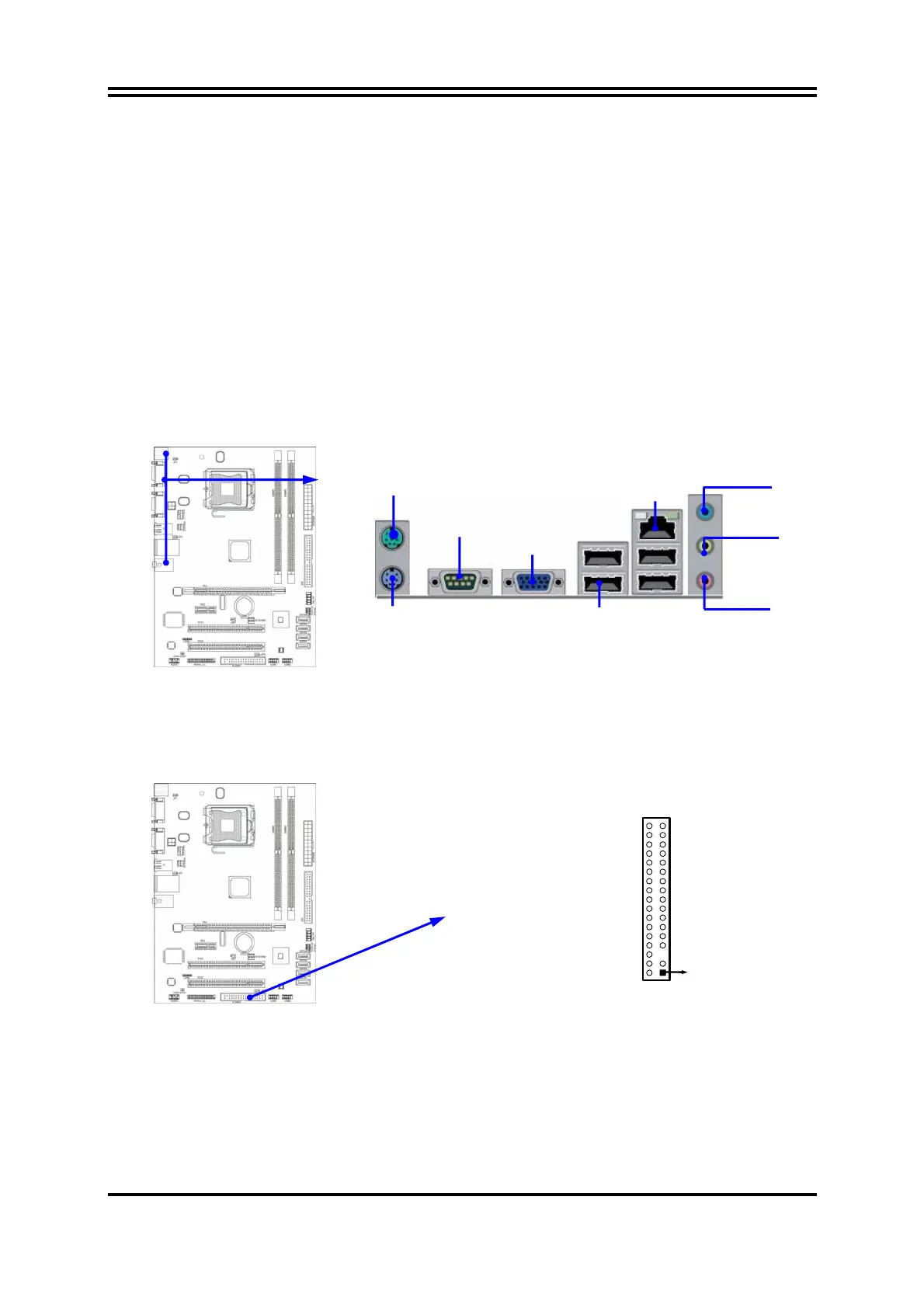

(3) PS/2 Mouse & PS/2 Keyboard Connector: KB1
The connectors are for PS/2 keyboard and PS/2 Mouse.
(4) USB Port connector: USB1, UL1
The connectors are 4-pin connectors that connect USB devices to the system
board.
(5) LAN Port connector: UL1
This connector is standard RJ45 connector for Network.
The USBLAN1 support 10M/100M data transfer rate.
(6) Audio Line-In, Lin-Out, MIC Connector:
AUDIO1
This Connector is 3 phones Jack for LINE-OUT, LINE-IN, and MIC
Line-out: (GREEN) Audio output to speaker
Line-in: (BLUE) Audio input to sound chip
MIC: (PINK) Microphone Connector
(7) Floppy drive Connector (34-pin block): FLOPPY
This connector supports the provided floppy drive ribbon cable. After connecting
the single plug end to motherboard, connect the two plugs at other end to the
floppy drives.
(8) Primary IDE Connector (40-pin block): IDE
This connector connects to the next set of Master and Slave hard disks. Follow
the same procedure described for the primary IDE connector. You may also
configure two hard disks to be both Masters using one ribbon cable on the
primary IDE connector and another ribbon cable on the secondary IDE
connector.
Floppy Drive Connector
Pin 1
FDD
Line-OUT
MIC-IN
Line-IN
PS/2
Mouse
PS/2
Keyboard
COM
VGA
USB1
LAN
