Intel Galileo Hardware Guide

Hardware 11
Hardware
From pin 13, it should go to the LED and back to the Galileo. In order to go back to the Galileo, we have to
use one of the pins labeled “GND” (Lesson 2, Figure 2). GND stands for ‘Ground’, which in electronics means
a place where electricity likes to go back to. We then need to get another wire, and insert it into a GND pin.

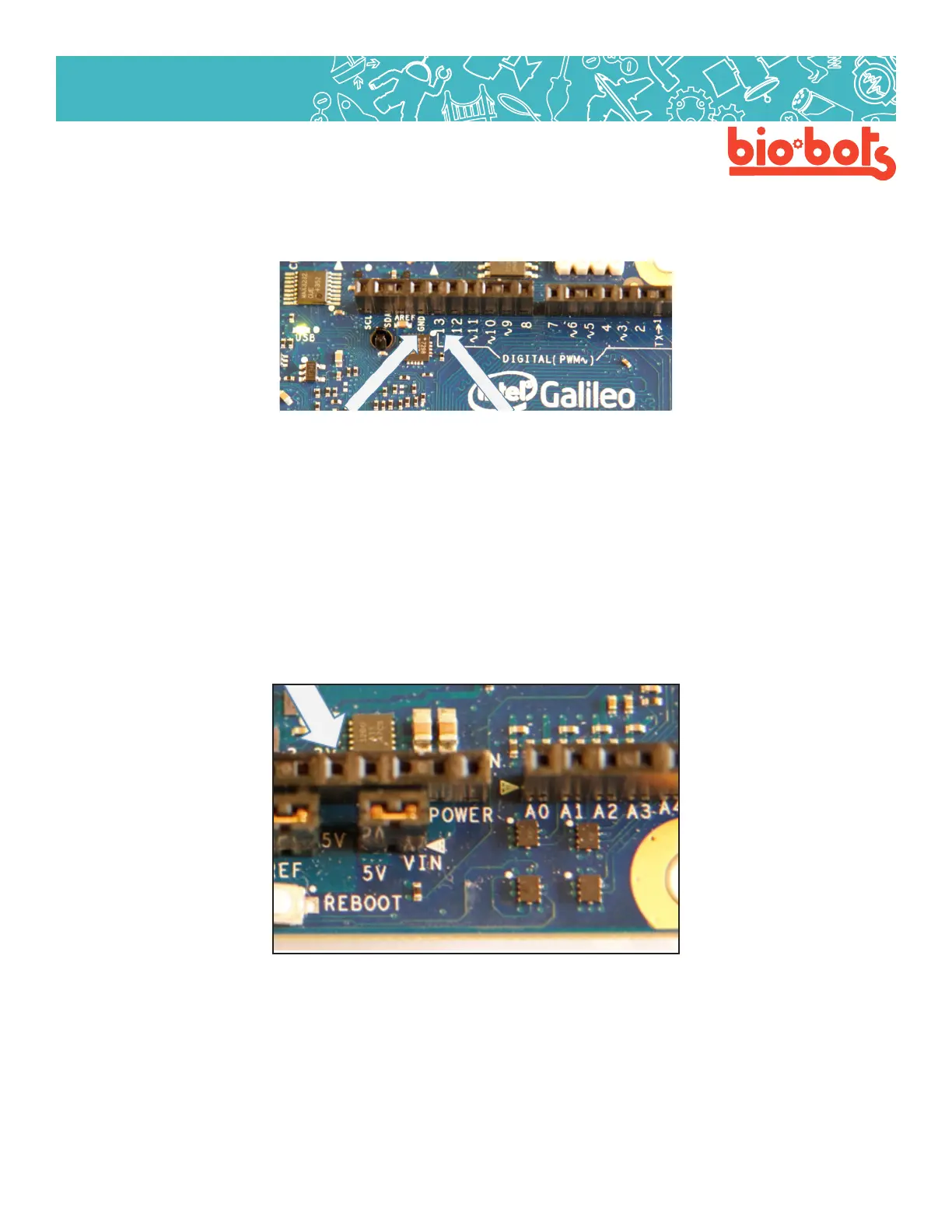

Lesson 2 Figure 2
With two wires in our Galileo, rst make sure they are not touching. (Tape one or both down, if you are having
trouble.) Once, we are sure of that, we can connect our Galileo to power and to the computer, and upload
the blink program.
Check that the onboard LED is blinking. If not, there is a problem with the program or the connection be-
tween the Galileo and the computer. If that LED is blinking, we can try connecting our external LED. Hold
or clip one side of the LED to one wire, and the other side of the LED to the other wire. Try ipping the LED
around by switching the wires.
Do neither ways work? Check a few things. If you move the wire in pin 13 to the pin labeled 5V (Lesson 2, Fig-
ure 3) and try the LED both ways, does it work? 5V is always on. If it isn’t working, double check your Galileo
is plugged in, then try another LED, because maybe your rst LED is broken.
Lesson 2 Figure 3
There may be other problems with your hardware, maybe a wire is broken. Maybe the wires are rusty and
aren’t connecting correctly. Maybe wires are accidently touching. Maybe you have the wrong pin. Try a few
things. Trying dierent congurations to make this work is called “hardware debugging”.
The LED only works one way, look carefully at the leads, one is longer than the other, write down which one
connects to ground. There may also be an indent on one side of the LED, also write down which way that is
facing (Lesson 2, Figure 4).

Intel Galileo Specifications

General

Product family	Intel Galileo
Product series	Intel Galileo board
Processor cache	16 KB
Processor cores	1
Processor model	Intel Quark SoC X1000
64-bit computing	No
Processor socket	Quark 393pin FCPGA
Product codename	-
Processor frequency	400 MHz
Microcontroller model	Intel Quark
Processor lithography	32 nm
Processor manufacturer	Intel
Thermal Design Power (TDP)	12.5 W
Memory bandwidth supported by processor (max)	2.5 GB/s
Memory bus	32 bit
Flash memory	8 MB
Memory channels	Single-channel
Flash memory type	Norwegian
Memory clock speed	800 MHz
Internal memory type	DDR3
Number of DIMM slots	0
Compatible memory cards	MicroSD (TransFlash), MicroSDHC
Maximum internal memory	0.256 GB
Maximum memory card size	32 GB
SRAM (Static Random Access Memory)	512 KB
EEPROM (Electrically Erasable Programmable Read-Only Memory)	8 KB
USB version	2.0
Ethernet LAN	Yes
USB ports quantity	3
Ethernet interface type	Fast Ethernet
ARK ID	78919
Status	Discontinued
Launch date	Q4'13
Package size	15 x 15 mm
FSBs supported	NA
Processor included	Intel® Quark™ SoC X1000 (16K Cache, 400 MHz)
Supported memory types	DDR3-SDRAM
Power over Ethernet (PoE) voltage	12 V
Export Control Classification Number (ECCN)	4A994
PCI Support	PCI Express
PCI Express interface data lanes	x1
Form factor	Arduino
Market segment	Desktop
DC input voltage	5 V
Intel Small Business Advantage (SBA) version	0.00
Last change	63903513
Processor ID	79084
Product type	11
Harmonized System (HS) code	8471500150

Weight and Dimensions

Width	- mm
