Label
Indication Meaning
LNK On The adapter and switch are receiving power; the
cable connection between the switch and adapter is
good.
Off The adapter and switch are not receiving power; the
cable connection between the switch and adapter is
faulty; or you have a driver configuration problem.
ACT On or flash-
ing
The adapter is sending or receiving network data. The
frequency of the flashes varies with the amount of net-
work traffic.
Off The adapter is not sending or receiving network data.
100 On Operating at 100 Mbps.
Off Operating at 10 Mbps.

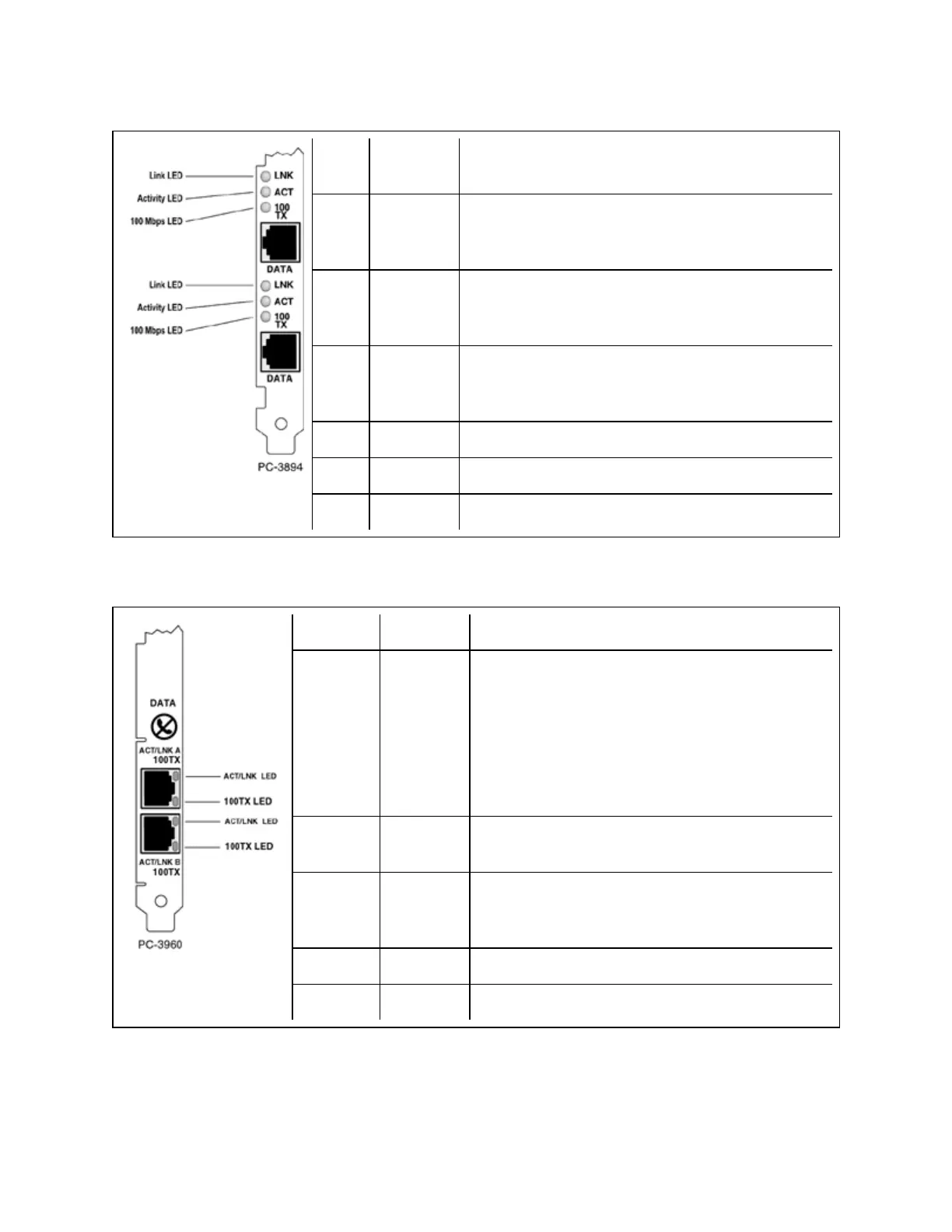

The PRO/100+ Dual Port Server adapter (with three LEDs per port) has the following indicator lights:
Label Indication Meaning
ACT/LNK On The adapter and switch are receiving power; the
cable connection between the switch and adapter is
good.
NOTE: if only one port appears to be operating, go
into the Network controlpanel(Windows) or a
configuration file for other operating system, and
check the status of the second port.
Off The adapter and switch are not receiving power, or
you have a driver configuration problem.
Flashing The adapter is sending or receiving network data.
The frequency of the flashes varies with the amount
of network traffic.
100TX On Operating at 100 Mbps.
Off Operating at 10 Mbps.
The Intel® PRO/100 S Dual Port Server adapter (with 64 bit PCI Connector) has the following indicator
lights:
