Intel NUC8HN - Figure 11. Additional Headers and Connectors; Table 13. Headers and Connectors Shown in Figure 11

40
Figure 11 shows the location of all user addressable headers and connectors on the top-side of
the Intel NUC Kit NUC8i7HN.

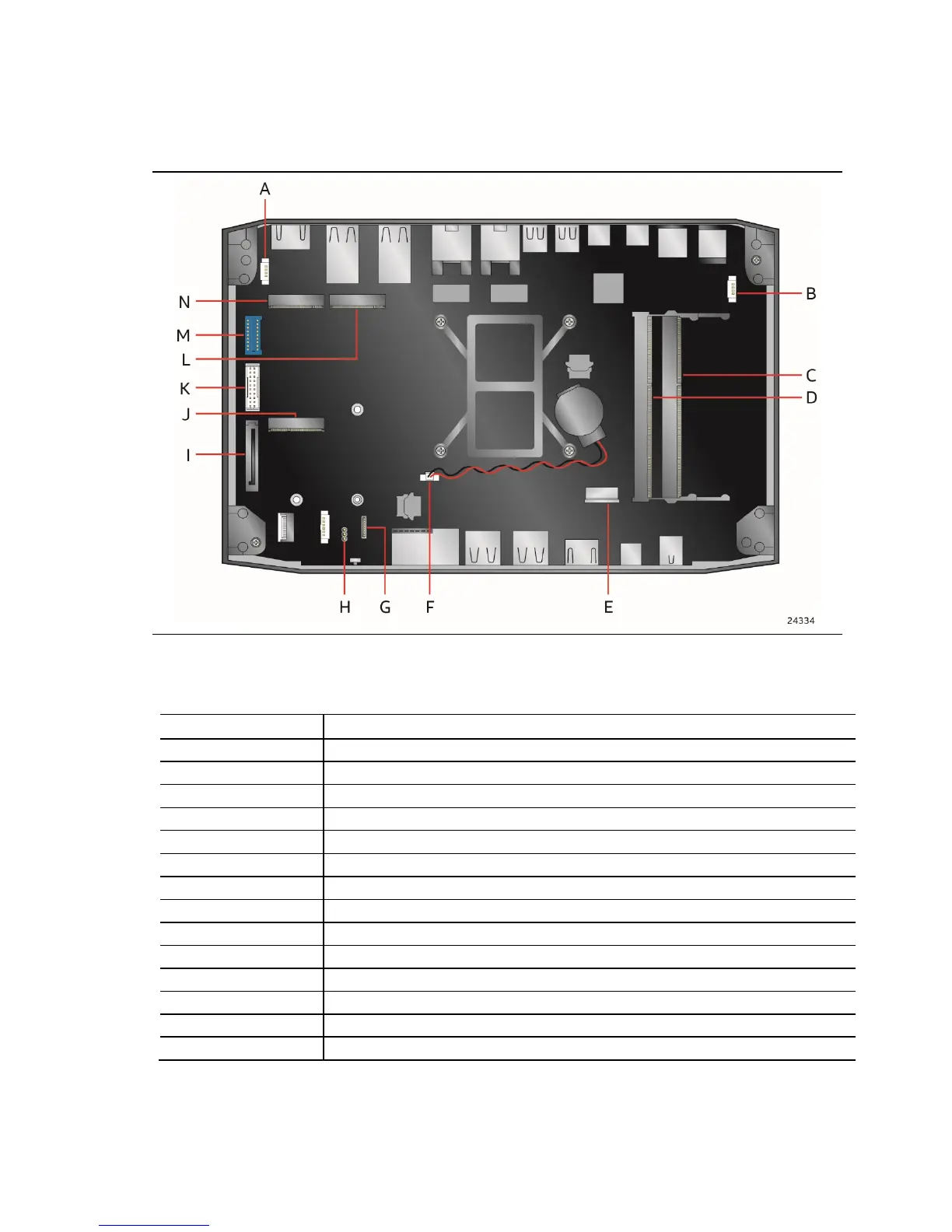

Figure 11. Additional Headers and Connectors
Table 13. Headers and Connectors Shown in Figure 11
Item from Figure 11
Description
A
Fan Header 1
B
Fan Header 2M.2 connector B (key type M) for 2242 and 2280 modules
C SODIMM A M.2 connector A (key type M) for 2242 and 2280 modules
D
SODIMM B
E
Digital Microphone Header
F
RTC Battery Header (2pin)
G RGB LED Header for Top Lid
H
BIOS Security Jumper
I
Auxiliary SATA Power Header
J
M.2 Key E (pre-populated with 2230 WIFI Solution)
K Internal Common IO Header
L
M.2 connector A (key type M) for 2242 and 2280 modules
M
Internal USB 3.0 Header
N
M.2 connector B (key type M) for 2280 modules
