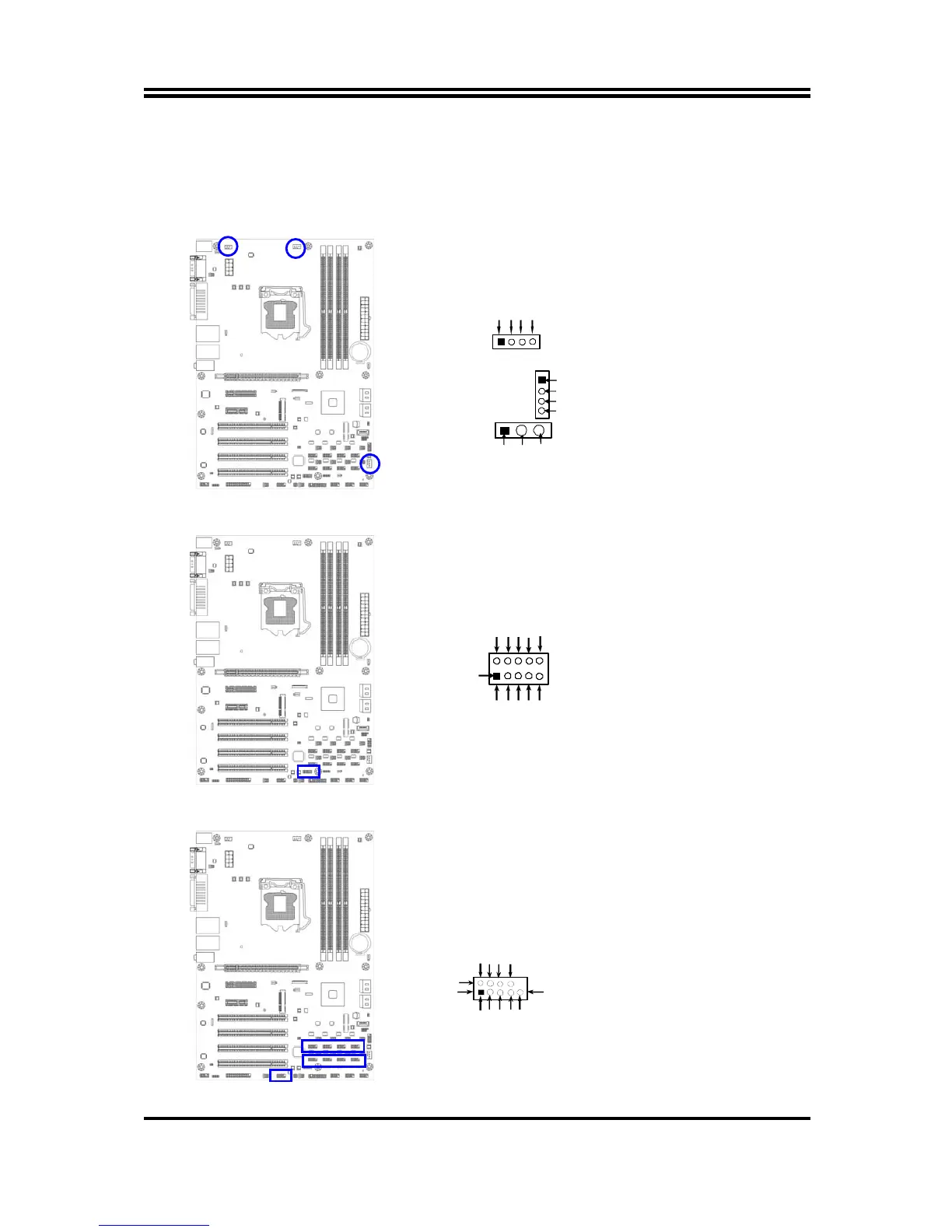

(7) FAN Power Headers: SYSFAN1 (3-pin); SYSFAN2 (4-pin); CPUFAN (4-pin)
DE
T
VCC
4
1
GND
FAN Headers
SYSFAN1
1
4
CPUFAN
Control
GND
GND
V
CC
Control
DET
Fan
Clock
SYSFAN2
1
+12V
(8) GPIO Header (10-pin): GPIO_CON
GPIO_CON Header
9
GPIO_30
GND
GPIO_32 GPIO_34
GPIO_36
GPIO_31
GPIO_35
GPIO 33
2
Pin 1
10
GPIO_37
VCC
(9) Serial Port Header (9-Pin): COM2/3/4/5/6/7/8/9/10
Serial COM Port 9-pin Block
Pin1
Pin
6
DCD
Pin5
DSR
RXD
TXD
DTR GND
RTS
CTS
RI

Intel Q67 Specifications

General

Chipset	Intel Q67
Socket	LGA 1155
Memory Type	DDR3
Max Memory	32 GB
PCI Express Revision	2.0
Memory Slots	4
Memory Support	DDR3 1066/1333 MHz
USB Ports	14
SATA Ports	6
Integrated Graphics	Yes
RAID Support	RAID 0, 1, 5, 10
CPU Support	2nd Generation Intel Core i7/i5/i3 Processors
