Intel Q77

16

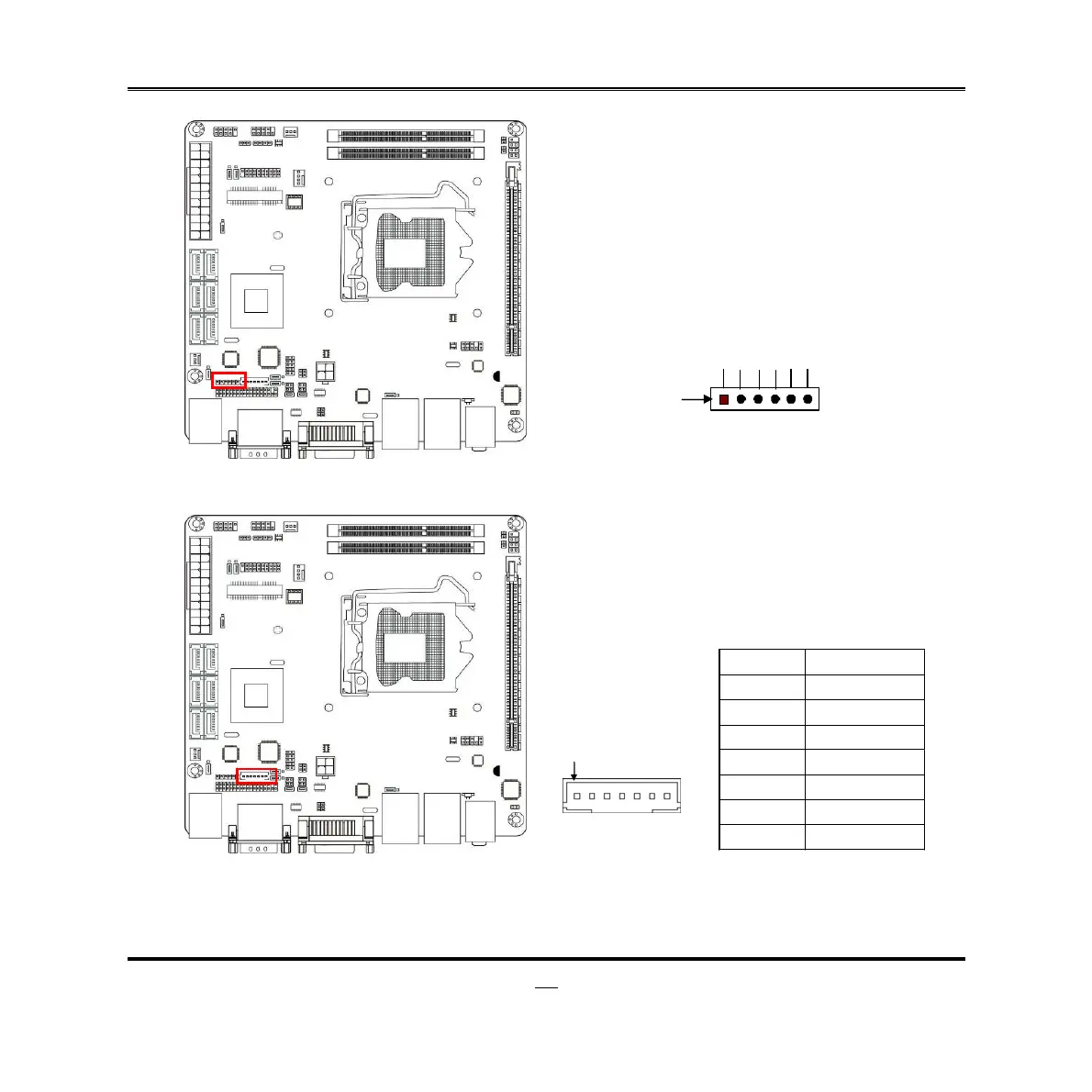

(2) KBMS (6-pin): PS/2 Keyboard & Mouse Header
GND
KB CLK
KB
_
DATA
Pin1
MS
_
DATA
VCC
MS CL
K
(3) INVERTER (7-Pin): LVDS Inverter Header
Pin 1
Pin No. Definition
1 VCC
2 VCC
3 GND
4 GND
5 Backlight
6 GND
7 Brightness
