Intel Q77 User Manual

17

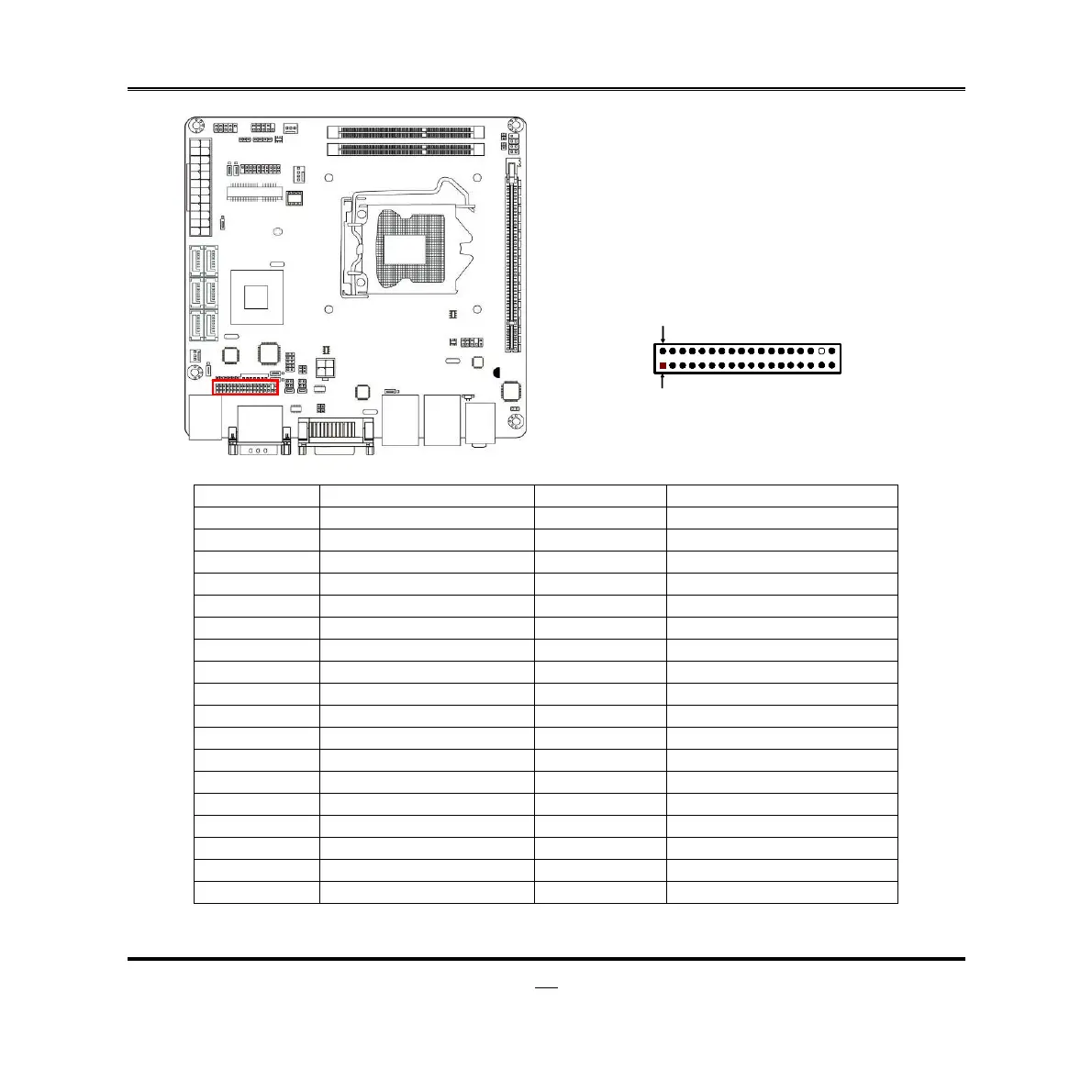

(4) LVDS (36-Pin): LVDS Header
Pin 1
Pin 2
Pin NO. Pin Define Pin NO. Pin Define
Pin 1 LVDSB_DATAN3 Pin 2 LVDSB_DATAP3
Pin 3 LVDSB_CLKBN Pin 4 LVDSB_DATABP
Pin 5 LVDSB_DATAN2 Pin 6 LVDSB_DATAP2
Pin 7 LVDSB_DATAN1 Pin 8 LVDSB_DATAP1
Pin 9 LVDSB_DATAN0 Pin 10 LVDSB_DATAP0
Pin 11 LVDS_DDC_DATA Pin 12 LVDS_DDC_CLK
Pin 13 GND Pin 14 GND
Pin 15 GND Pin 16 GND
Pin 17 LVDSA_DATAP3 Pin 18 LVDSA_DATAN3
Pin 19 LVDS_CLKAP Pin 20 LVDS_CLKAN
Pin 21 LVDSA_DATAP2 Pin 22 LVDSA_DATAN2
Pin 23 LVDSA_DATAP1 Pin 24 LVDSA_DATAN1
Pin 25 LVDSA_DATAP0 Pin 26 LVDSA_DATAN0
Pin 27 PVDD Pin 28 PVDD
Pin 29 PVDD Pin 30 PVDD
Pin 31 GND Pin 32 GND
Pin 33 +5V Pin 34 N/A
Pin 35 +12V (Reserved) Pin 36 +3V

Intel Q77 Specifications

General

Chipset	Intel Q77
Socket Type	LGA 1155
Memory Type	DDR3
Memory Slots	4
Maximum Memory Supported	32 GB
SATA 3Gb/s Ports	4
SATA 6Gb/s Ports	2
USB 2.0 Ports	10
USB 3.0 Ports	4
PCI Express Revision	3.0
Integrated Graphics	Intel HD Graphics
PCIe 3.0 Support	Yes
CPU Support	Intel Core i7/i5/i3, Pentium, Celeron (2nd and 3rd generation)
Memory Support	DDR3 1066/1333/1600 MHz
RAID Support	RAID 0, 1, 5, 10
TDP	Not Applicable
