Intel® RAID Controller RS25DB080 Hardware User’s Guide 23
Individual Drive Fault Header (x8)

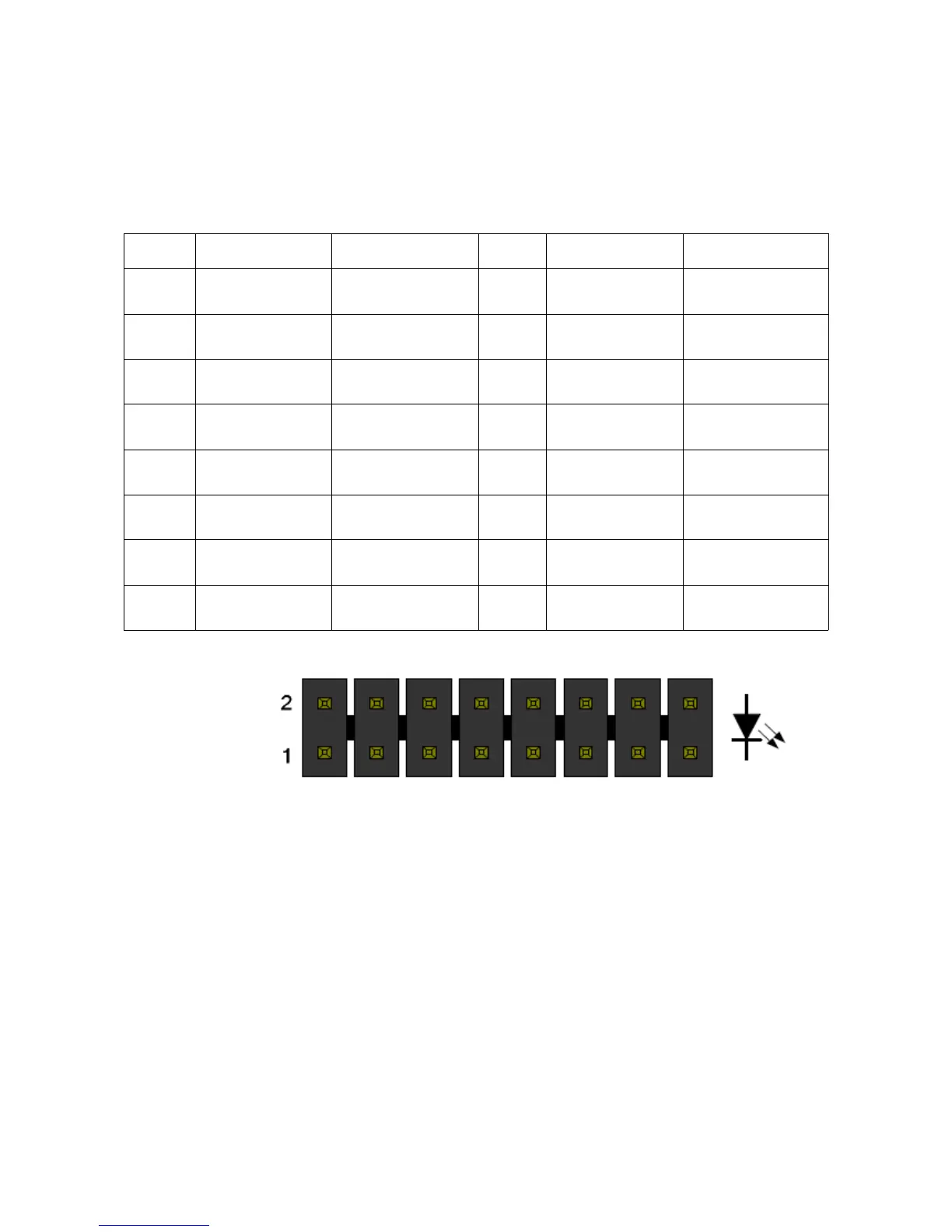

Table 6. Individual PHY/Drive Fault Header (J1A5) Pin List
Figure 11. Individual PHY/Drive Fault Header
Pin# Name Description Pin# Name Description
1 FLT_LED7_L Cathode of LED for
PHY 7
2 FLT_LED7_PU Anode of LED for
PHY 7
3 FLT_LED6_L Cathode of LED for
PHY 6
4 FLT_LED6_PU Anode of LED for
PHY 6
5 FLT_LED5_L Cathode of LED for
PHY 5
6 FLT_LED5_PU Anode of LED for
PHY 5
7 FLT_LED4_L Cathode of LED for
PHY 4
8 FLT_LED4_PU Anode of LED for
PHY 4
9 FLT_LED3_L Cathode of LED for
PHY 3
10 FLT_LED3_PU Anode of LED for
PHY 3
11 FLT_LED2_L Cathode of LED for
PHY 2
12 FLT_LED2_PU Anode of LED for
PHY 2
13 FLT_LED1_L Cathode of LED for
PHY 1
14 FLT_LED1_PU Anode of LED for
PHY 1
15 FLT_LED0_L Cathode of LED for
PHY 0
16 FLT_LED0_PU Anode of LED for
PHY 0
