3.0 Mechanical Information
3.1 1.8-inch Form Factor

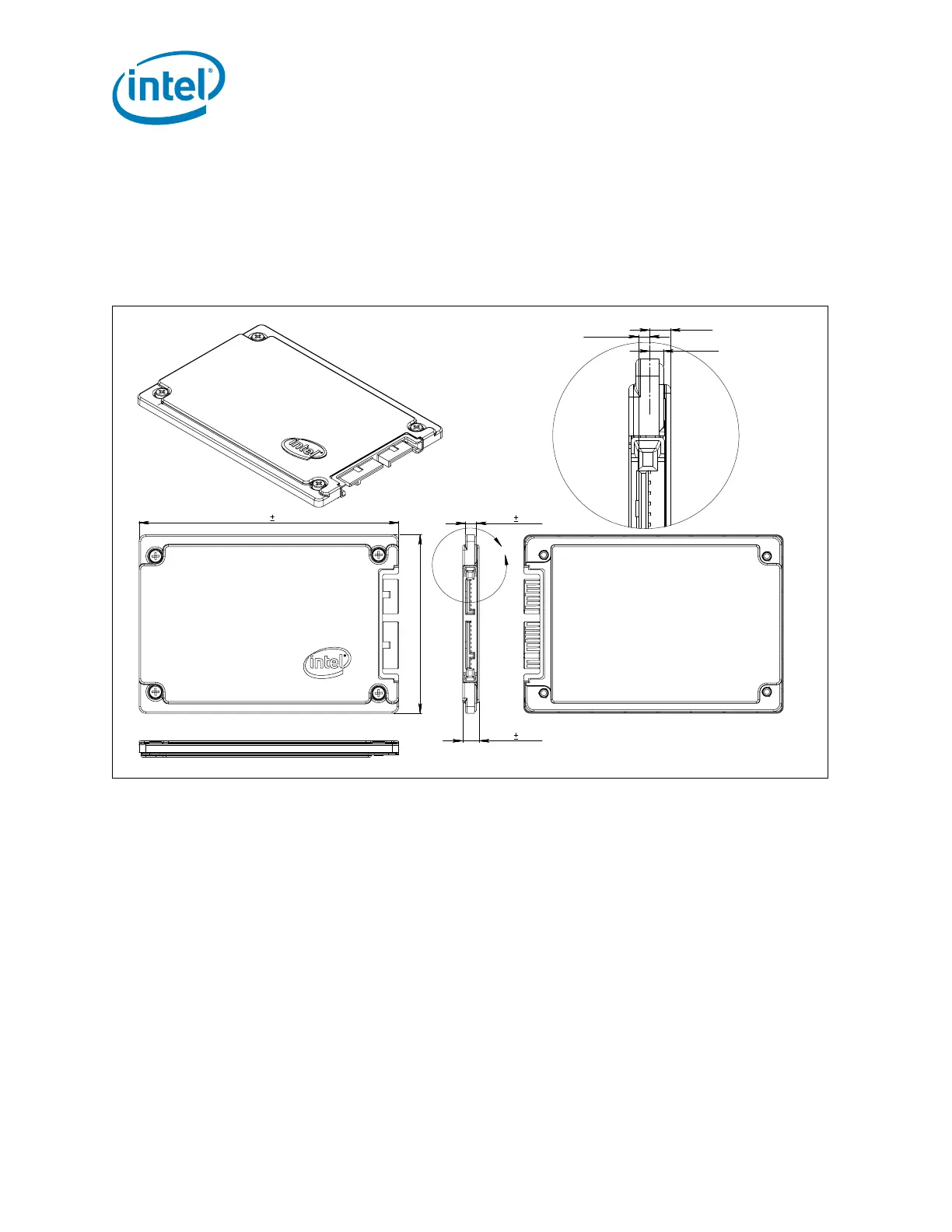

Figure 1 shows the physical package information for the 1.8-inch Intel SSD 320 Series.
All dimensions are in millimeters.
Figure 1. Dimensions for 1.8-inch Form Factor
2,500
1,350
1,650
A
0.353.30
5.00 0.35
0.6078.50
54.00
DETAIL A
SCALE 5 : 1
