Hardware XI Other connections

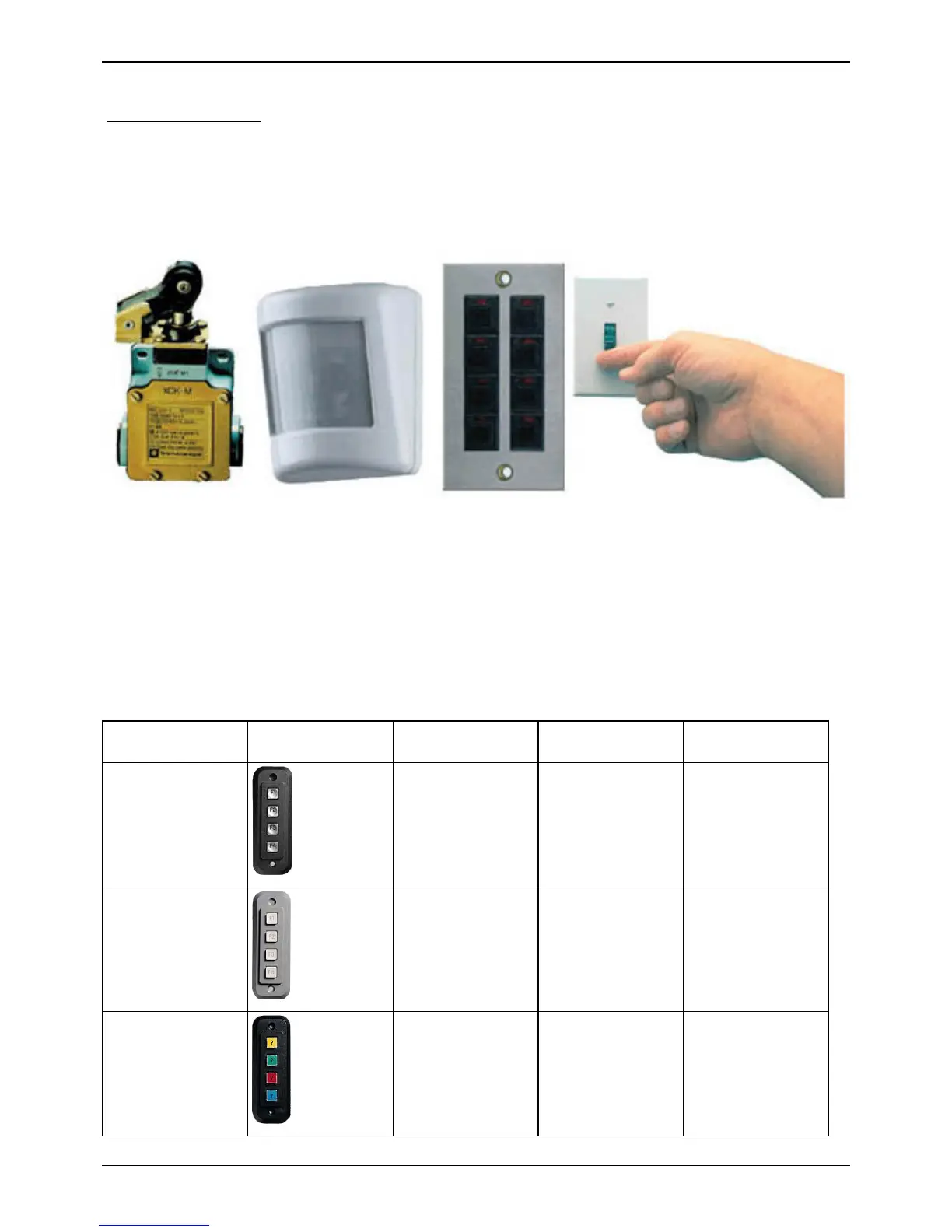

2. Contacts (input)
Most of our electronic interfaces have an HE10 connector to connect up to 8 contacts. The standard
application is the connection of a panel with 8 (or less) buttons to trigger the differents "lighting shows".
It is very useful for achitectural installations. You can connect any devices that can generate a contact:
relays, IR detector, HF receptor, switches...
Sample of Keypads - Storm 4 buttons
(details and connections)
See below a complete description to order this keypad from Storm company and the components for
the cable. We explain also how to make the connections. For more information visit
www.storm-keypads.com
Serie Picture Ref. Storm Ref. Farnell Ref. Radiospares
Touch keypads for
exposed public
applications
(Storm 1000 PLX
series)
PLX0422 01 102957 301-3835
Robust keypads
for harsh industrial
use (Storm 2000
series)
2K0421 01 546392
Touch keypads
with snap-on
keytops for custom
legends (Storm
Graphic Series)
GS0402 01 102799 301-3885
Page 17
