Intellitec 800 User Manual

15
Cond. Torque AWG In.Lb.
Equip. Ground 10-14 35 Neutral Bar 10-14 35 Line Terminal 10-14 35
FROM INVERTER
TO INVERTER
EMS
CIR 3
EMS
CIR 4
INSULATED NEUTRAL
EMS
CIR 1
EMS
CIR 2
50/30
AMP
MAIN
CURRENT SENSOR
LINE 1
LINE 2
GROUND GROUND
BRKR #2 RELAY #2 BRKR #1 RELAY #1 NEUTRAL
12 VOLT SIDE
J3 To Current Sensor
120/240 VOLT SIDE
BRKR #4 RELAY #4 BRKR #3 RELAY #3
EMS Controlled Loads 1HP, 15A, 120VAC,60HZ
ENERGY MANAGEMENT
CONTROL ELECTRONICS
BARRIER
RELAY #5 N.O.
RELAY #5 COM
RELAY #5 N.C.
RELAY #6 COM
RELAY #6 N.C
RELAY #6 N.O.
Remote Display Connector
AIR-CONDITIONERS
THERMOSTAT LEADS
LOAD 1.0A, 24VDC
OPTION JUMPER: SEE OWNERS GUIDE
J5
J2
+12 VOLTS +12V GEN RUN GROUND
_
J1 Hi-Pot Test
1 2 3
1 2 3 4 5 6

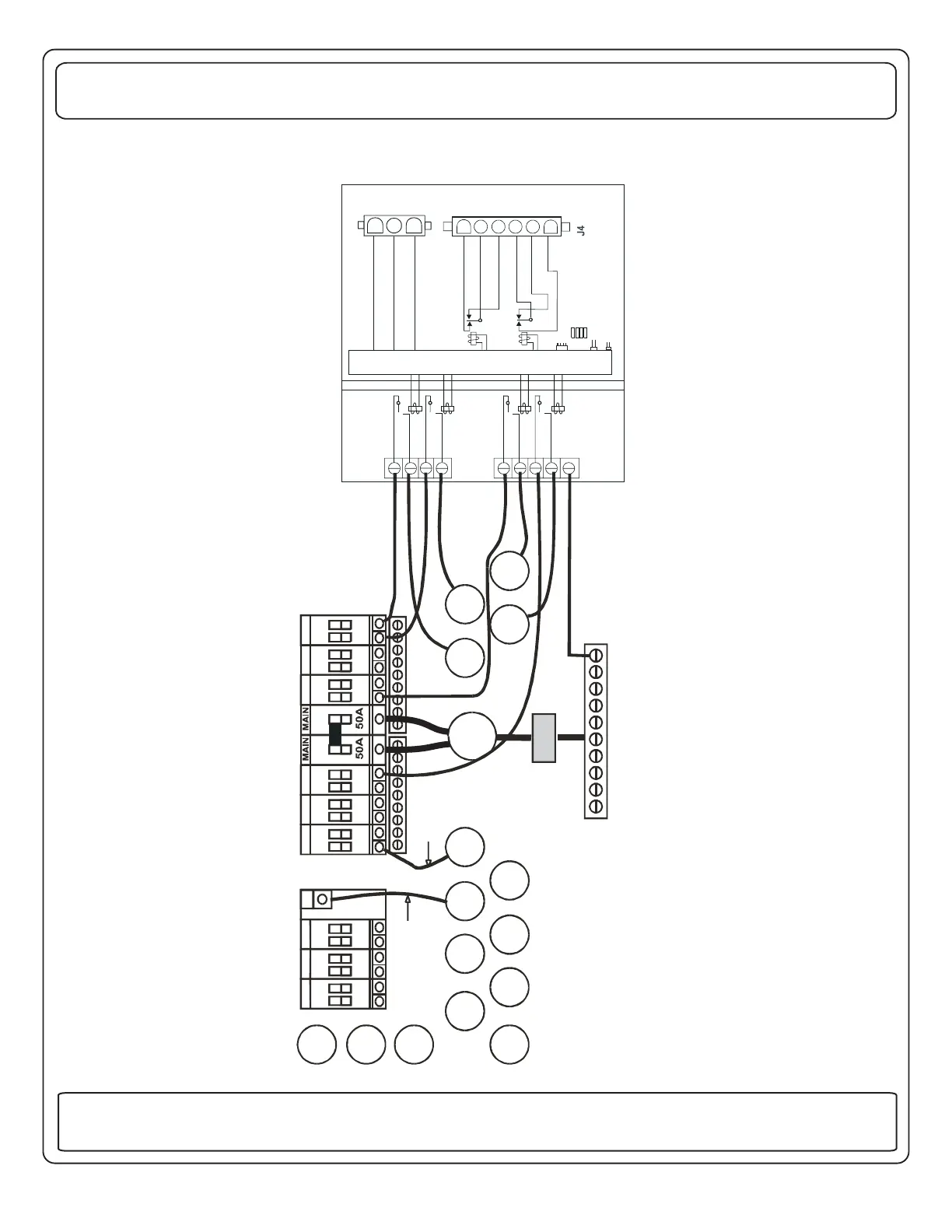

TYPICAL WIRING DIAGRAM
120 VAC, 20/30 AMP SERVICE
All Neutral current must pass thru
EMS Current Sensor.
131 Eisenhower Lane North
Lombard, IL 60148
630.268.0010 / 1.800.251.2408
50 AMP Smart Energy Management System Model 800
TM
P/N 53-00894-100 Rev. E 030807
www.intellitec.com
Intellitec
