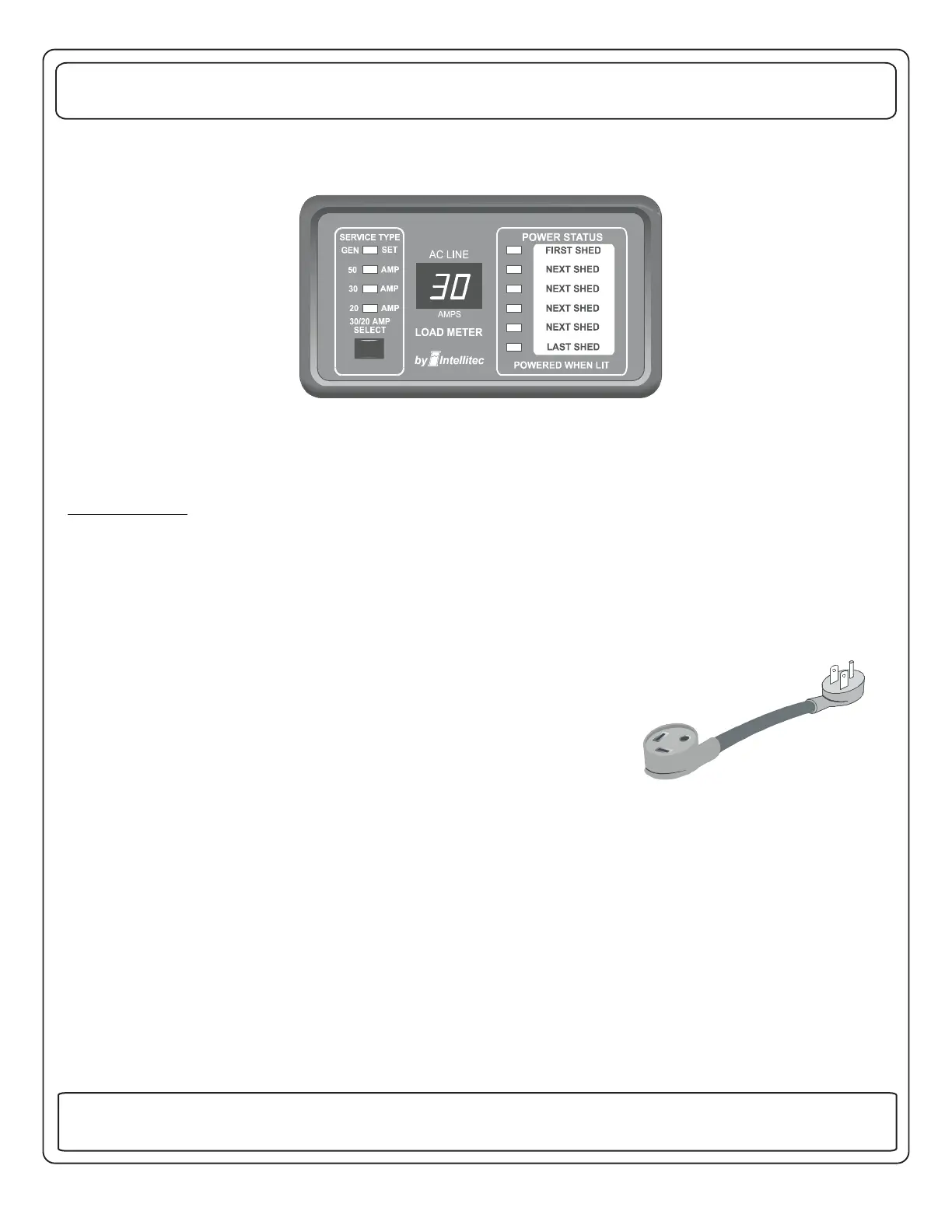

DISPLAY PANEL
The Display Panel can be mounted remotely and connects to the main unit with a light gauge, three-wire cable. Six Power
Status LED's indicate power is applied to those loads. These LED's are ON when the power is applied. If 120 VAC service
is available, the Load Meter has a two-digit display to indicate the amount of current actually being drawn by all the
appliances in the coach. If 240 VAC service is available, the two-digit loadmeter goes blank.
Four service type LED's indicate the source for 120/240 VAC power. Three of these sources are automatically detected
and indicated by the , namely; Gen Set service, 50 Amp 240 VAC service, and 30Amp 120 VAC service.
When 120 VAC shore power is first applied, the system will always be in the 30 Amp mode.
The 30/20 Amp indicator LED will be ON when the system is in the 30 Amp mode.
The 20 Amp service mode is not automatically detected. The operator must
manually select the 20 Amp mode, when 20 Amp service is available. The “Service
Select” button allows the current threshold to be set to either 30 Amps, or 20 Amps
to match the incoming service.
If the pictured adaptor is used on the incoming service, press the “Service Select”
button to select the 20 Amp mode. Momentarily pressing this button again will switch the system back to the 30Amp mode.
The Display Panel can also be used to display the for each of the six loads. To display
the values of current stored in memory for each of the six loads, push and hold the Service Select button. The uppermost
LED will illuminate and the stored value will appear on the load meter. Pushing Service Select again, will cycle to the next
load. After the last stored value has been displayed, or if the Service Select button has not been pressed during a five
second period, the load meter will return to normal operation and display total current draw.
EMS
value of current stored in memory
“”
“”
50 AMP
SMART EMS
4
131 Eisenhower Lane North
Lombard, IL 60148
630.268.0010 / 1.800.251.2408
50 AMP Smart Energy Management System Model 800
TM
P/N 53-00894-100 Rev. E 030807
