I N S T A L L A T I O N M A N U A L X - S T R E A M 2 ™ S L I D E
17
XS2-IM Rev. 10/14 (SBK-XS2 INSTALL)
When installing an Inter-Fab X-Stream™ 2 or G-Force™ 2 slide using a paver kit, you must
ensure that all standard installation requirements are met. The slide must be compatible with
the type of pool on the intended installation and all ANSI/APSP/ICC-5 2011 requirements
must be met. Refer to installation manual.
Figure 26 illustrates an example of the minimum concrete pads recommended for the
X-Stream™ 2 slide. Specific slide positions and concrete pad orientations may vary. Make
sure to allow for water stub up location near the ladder foot on the X-Stream™ 2 slide
when pouring the concrete pad for the ladder foot. In order to ensure proper placement,
you will need to set the slide up first to determine where the concrete pillars will be located.
Figure 25 shows an example side view of a slide foot and an wedge anchor used in a paver
installation. Pavers can be a maximum of 3” thick. Pavers must be mechanically attached
to the concrete pad using a setting material (such as mortar or thinset for example) that
is no thicker than 3/8”.
For the long and short support legs, 1-1/4” of each 3/8” wedge anchor needs to be exposed
above the final deck surface. For the step pedestal, 1-3/4” needs to be exposed. You will
need to factor in the thickness of your paver (3” MAX.) and the thickness of your setting
material (3/8” MAX.) for your individual installation.
You will need a 3/8” masonry bit for the X-Stream™ 2 slide.
Inter-Fab Inc. will not be responsible for damage to pavers caused by drilling or mechanically
attaching to concrete pad. Refer to paver manufacturer’s specific installation instructions
before beginning.
X-STREAM 2™ NOTES:
• All X-Stream 2™ wedge anchors (13 ea.) are
3/8” x 7”.
PAVER KIT INFO – X-STREAM 2

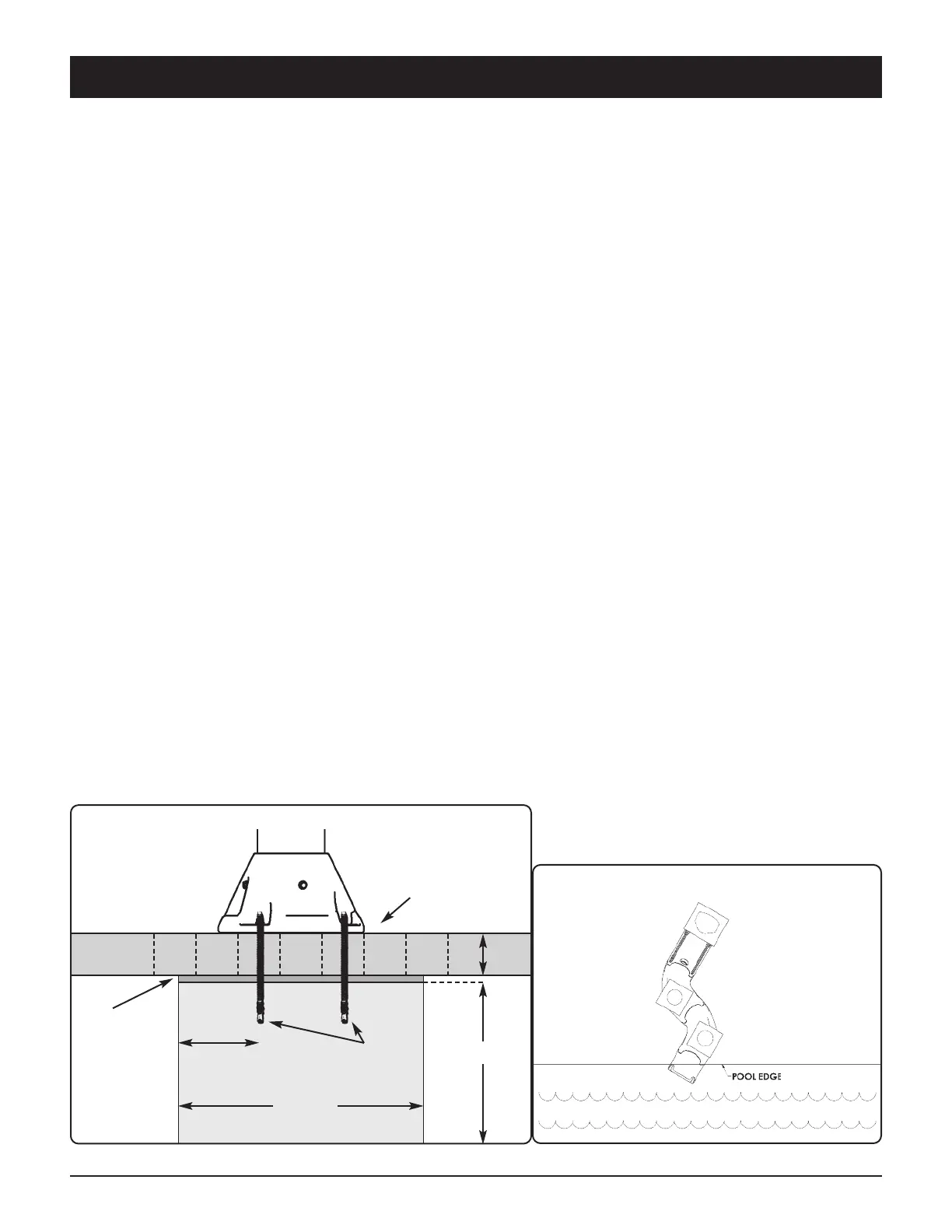

Fig. 25
Example of Slide Foot on Concrete Pad (Side View)
CONCRETE
24” min.
Layer of setting
material to
secure pavers
to concrete.
PAVERS
3”
max.
Drawing Is
NOT To Scale
HEIGHT OF WEDGE
ANCHOR ABOVE
FINAL DECK
SURFACE
WEDGE
ANCHORS
24” min.
5” min.
from edge
Fig. 26
Minimum Concrete Pads:
X-STREAM™ 2 Slide
2 concrete pads are needed:
24” wide x 24” long x 24” deep
Center each foot on each pad.
You may rotate
the square pads
as needed.
1 concrete pad:
27” wide x 31” long
x 24” deep
(Plan View – NOT to Scale)
