CA-5115D/CA-5130D Powered Mixer

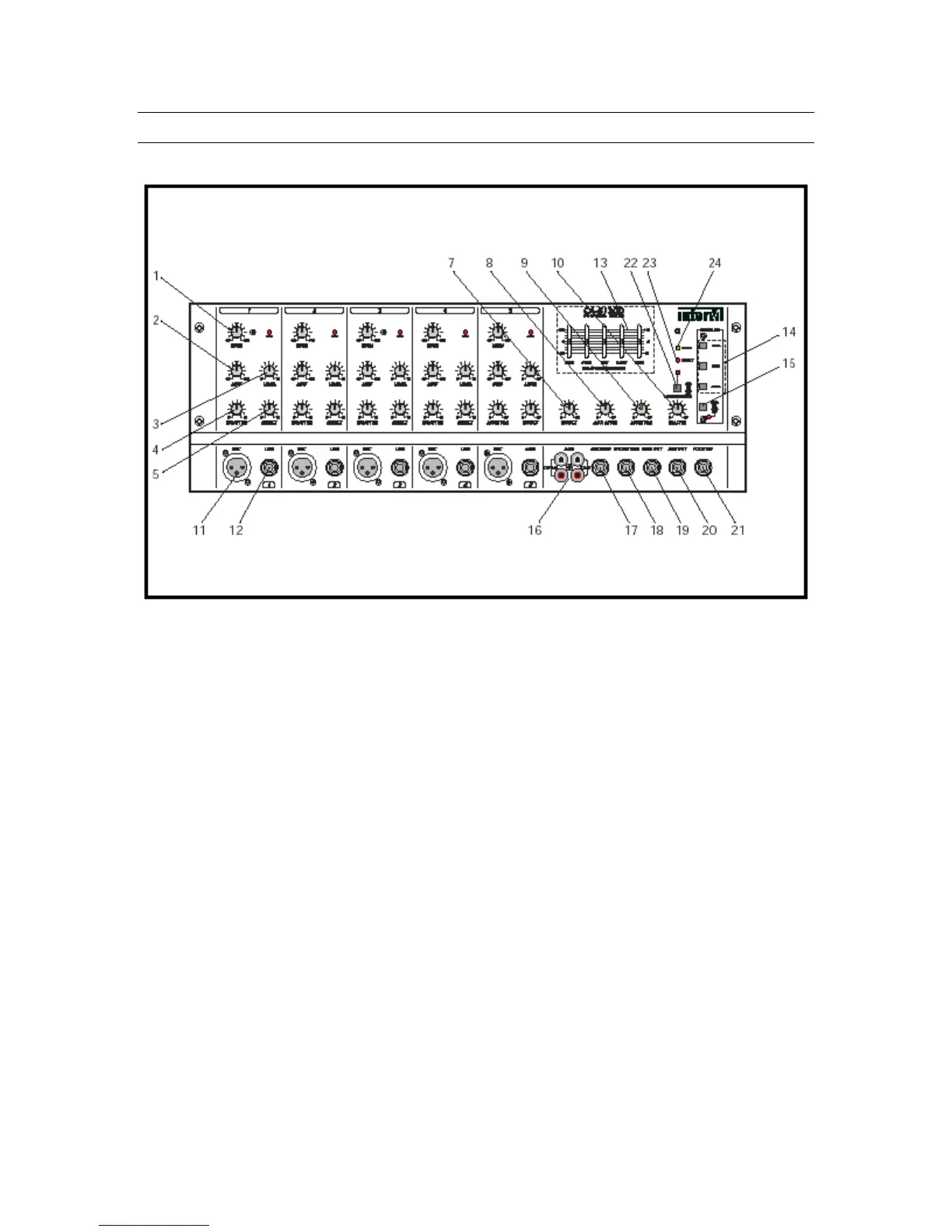

Front Panel Controls
1. High EQ Controls
These knobs control the associated channel’s high frequency equalization. This is
a 10kHz shelving type EQ with a maximum cut or boost of ±15dB
2. Low EQ Controls
These knobs control the associated channel’s low frequency equalization. This is a
100Hz shelving type EQ with a maximum cut or boost of ±15dB.
3. Level Control
These knobs control the associated channel’s output signal level sent to the
Master mix buss.
4. Monitor Send Level
These knobs control the level sent to the Monitor buss. The Monitor buss signal is
sent to the Monitor Output jacks (19). The Monitor buss signal is pre-fader, and is
unaffected by the channel’s Level Control (3).
5. Effect Send Level
These knobs control of level sent to the built-in digital signal processor (DSP), as
well as to the effect send buss. The Effect Send is pre-fader, and is unaffected by
the channel’s Level Control (6).
6. Peak Indicators
These LED indicators will light when the associated channel’s input level reaches
